RS7

Race-inspired speed, all-road performance, built for the everyday ride.

$2,099 Free Ground Shipping

or as low as $150/mo with

HSA/FSA eligible for qualified customers

Payment methods:

Select frame size See bicycle geometry

  • XS
  • S
  • M
  • L
  • XL
  • XXL

Not sure what size you should ride? Visit one of our dealers in your area. Find A Dealer

Delivery within 14 days

RS7 Free Ground Shipping

Singularity Black Size: M Quantity: 1

$2,099

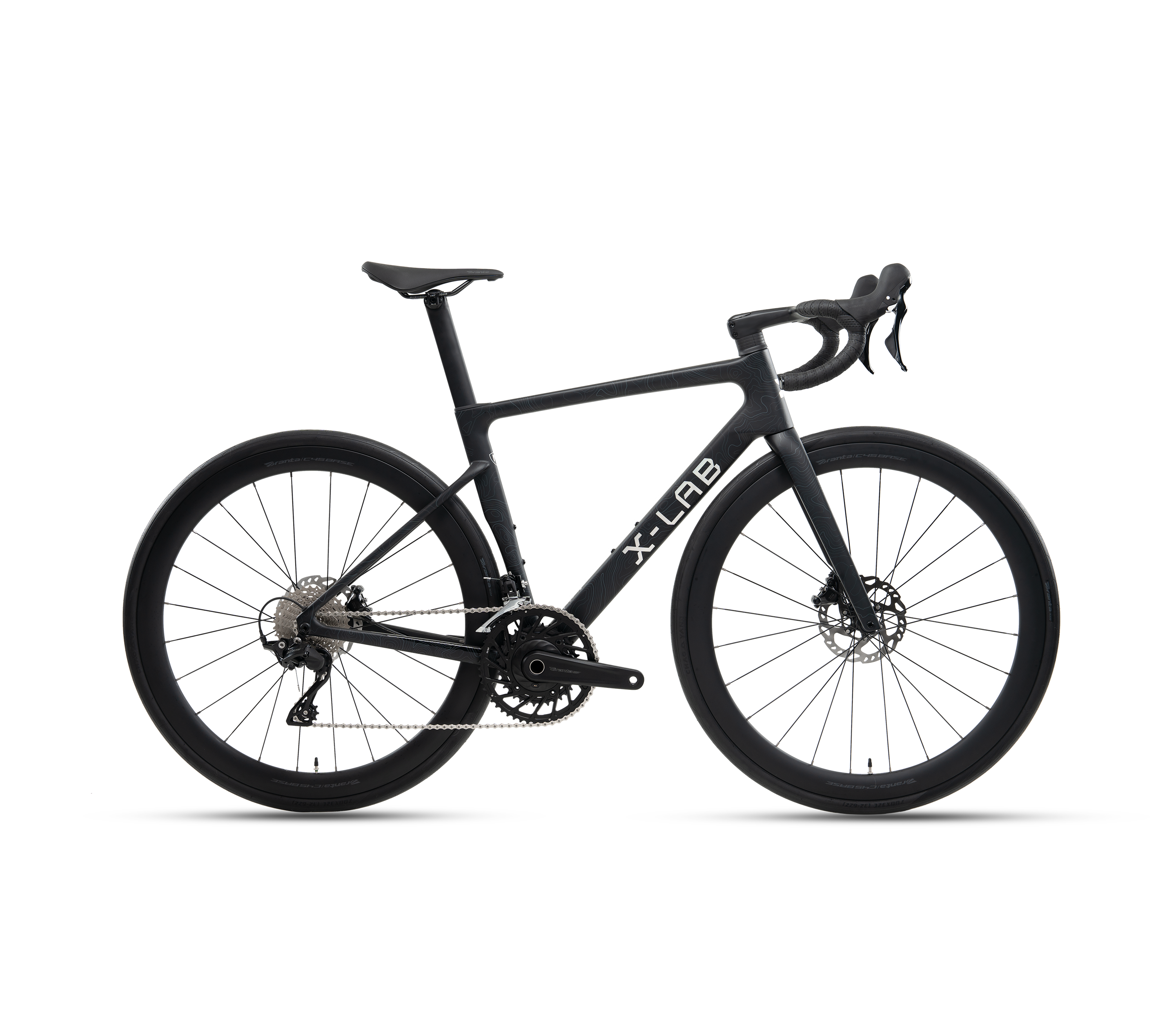

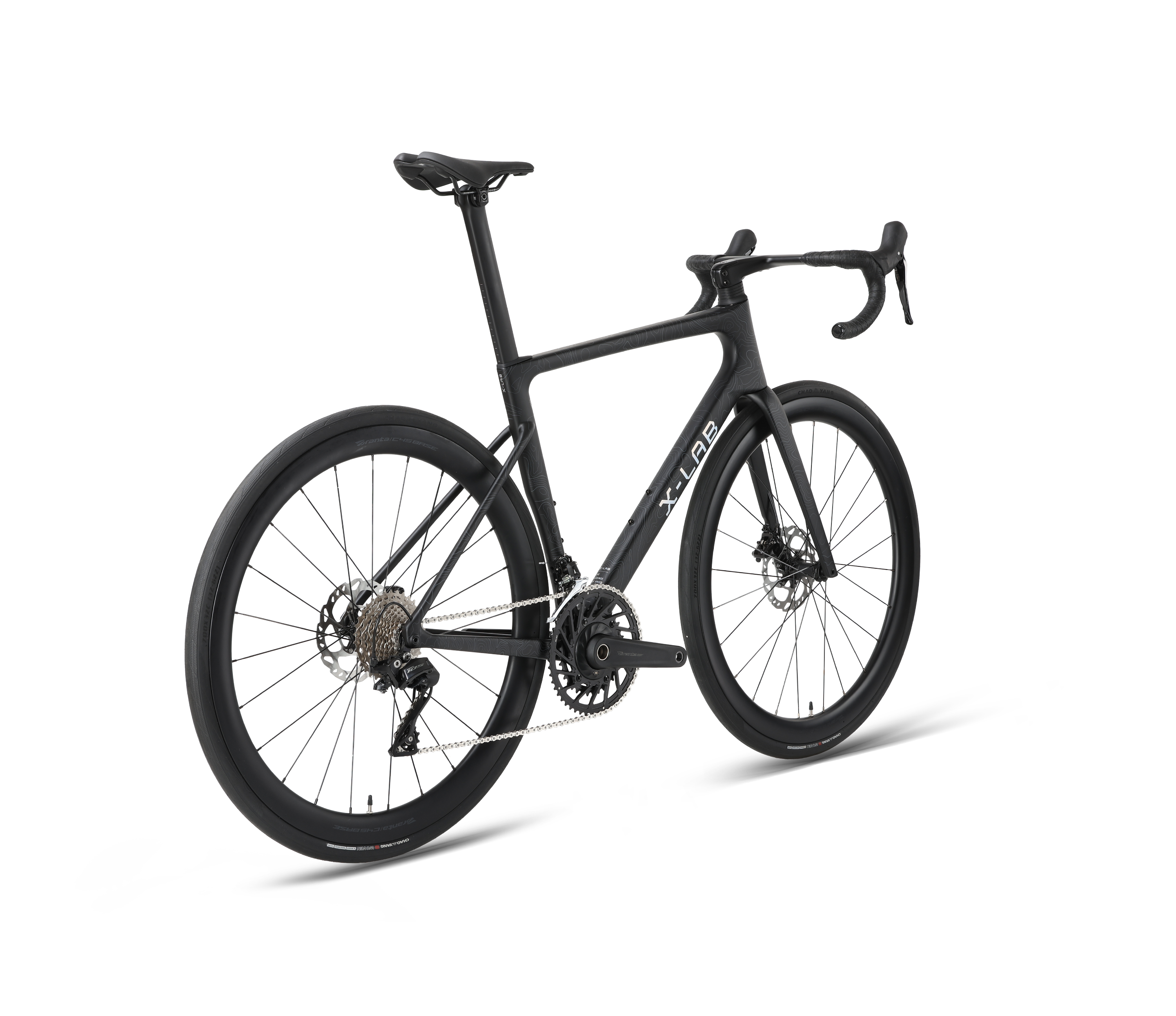

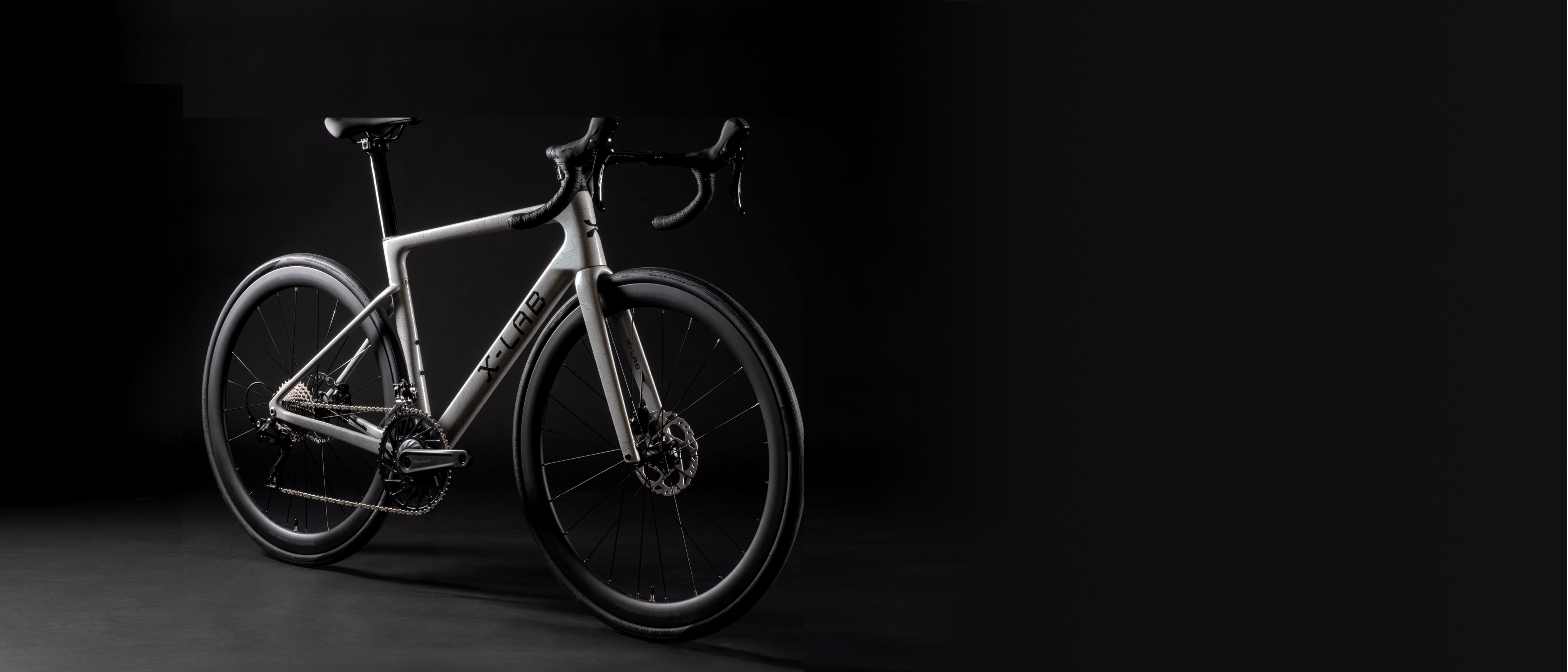

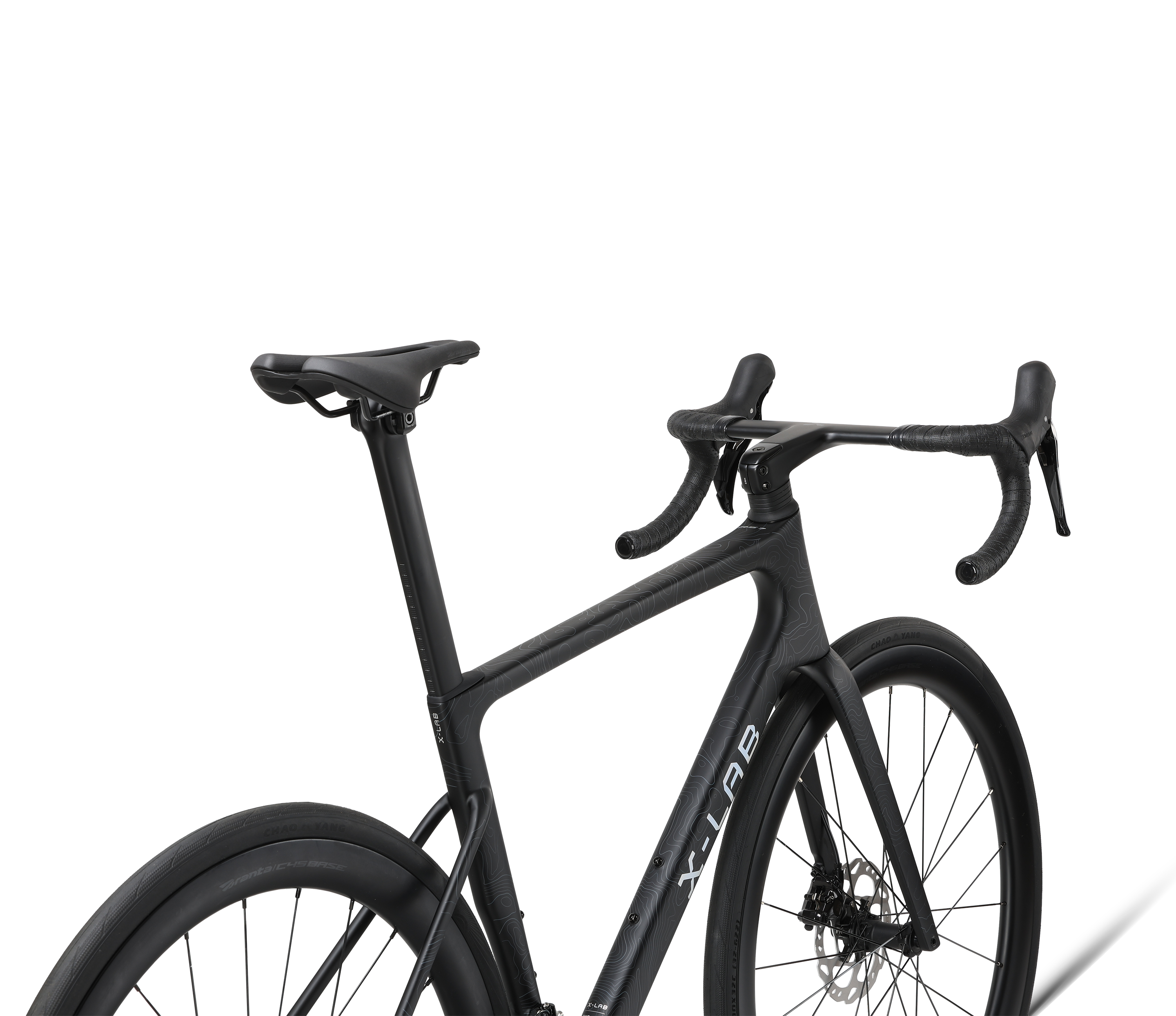

X-LAB RS7

The RS7 blends aerodynamic efficiency with everyday rideability.

Its performance-oriented geometry and refined carbon construction deliver speed when you push, while maintaining the comfort and stability needed for longer rides.

Equally at home on weekend training routes or daily commutes, the RS7 offers a balanced performance platform that riders return to again and again.

Carbon Confidence, Every Day

The RS7 is the road bike that makes true performance feel approachable for all riders, boasting full carbon responsiveness, drop-bar control, and a geometry that’s ready for everything from country roads to your fastest group ride.

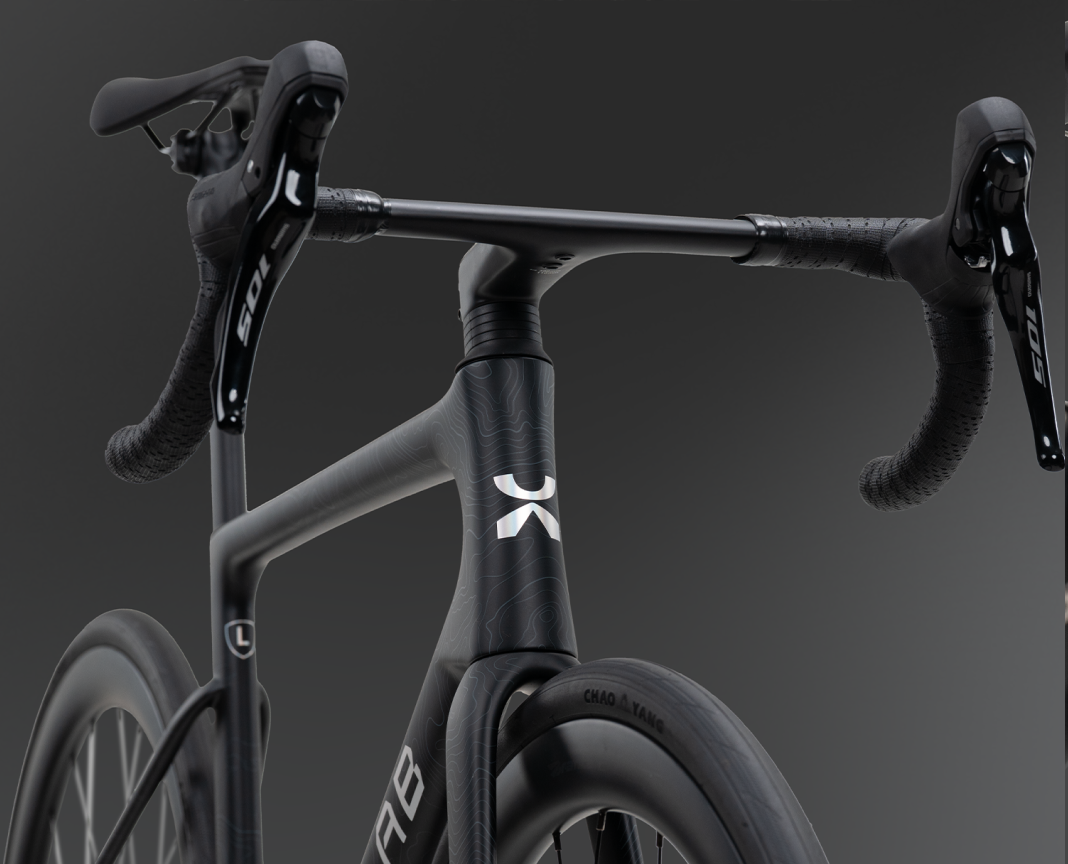

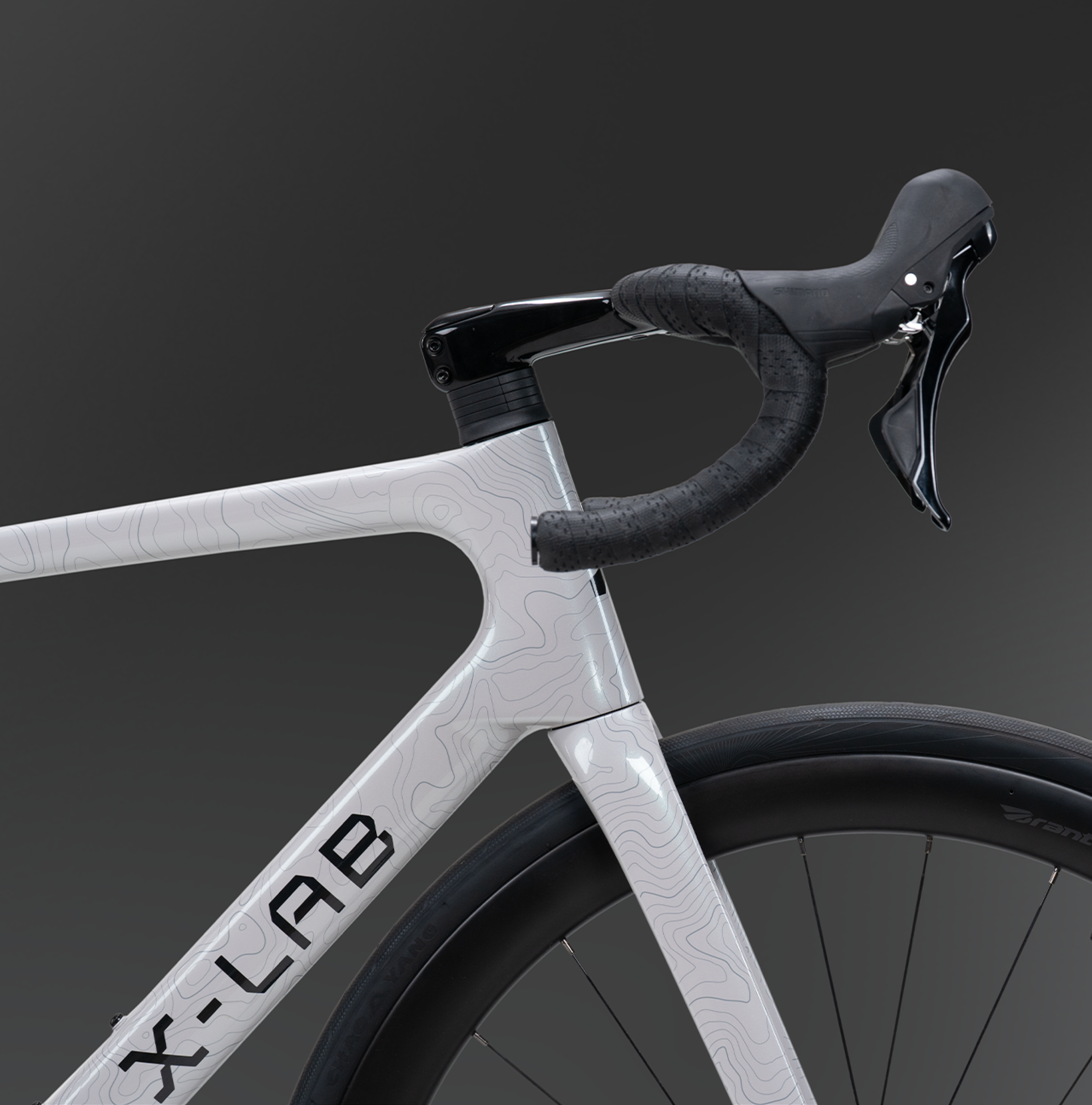

Topography-Inspired Colorways

Inspired by the contours of iconic mountain terrains, RS7’s finishes aren’t just paint; they’re a nod to the roads that shape riders and the climbs that define seasons.

Making Upgrades Simply Standard

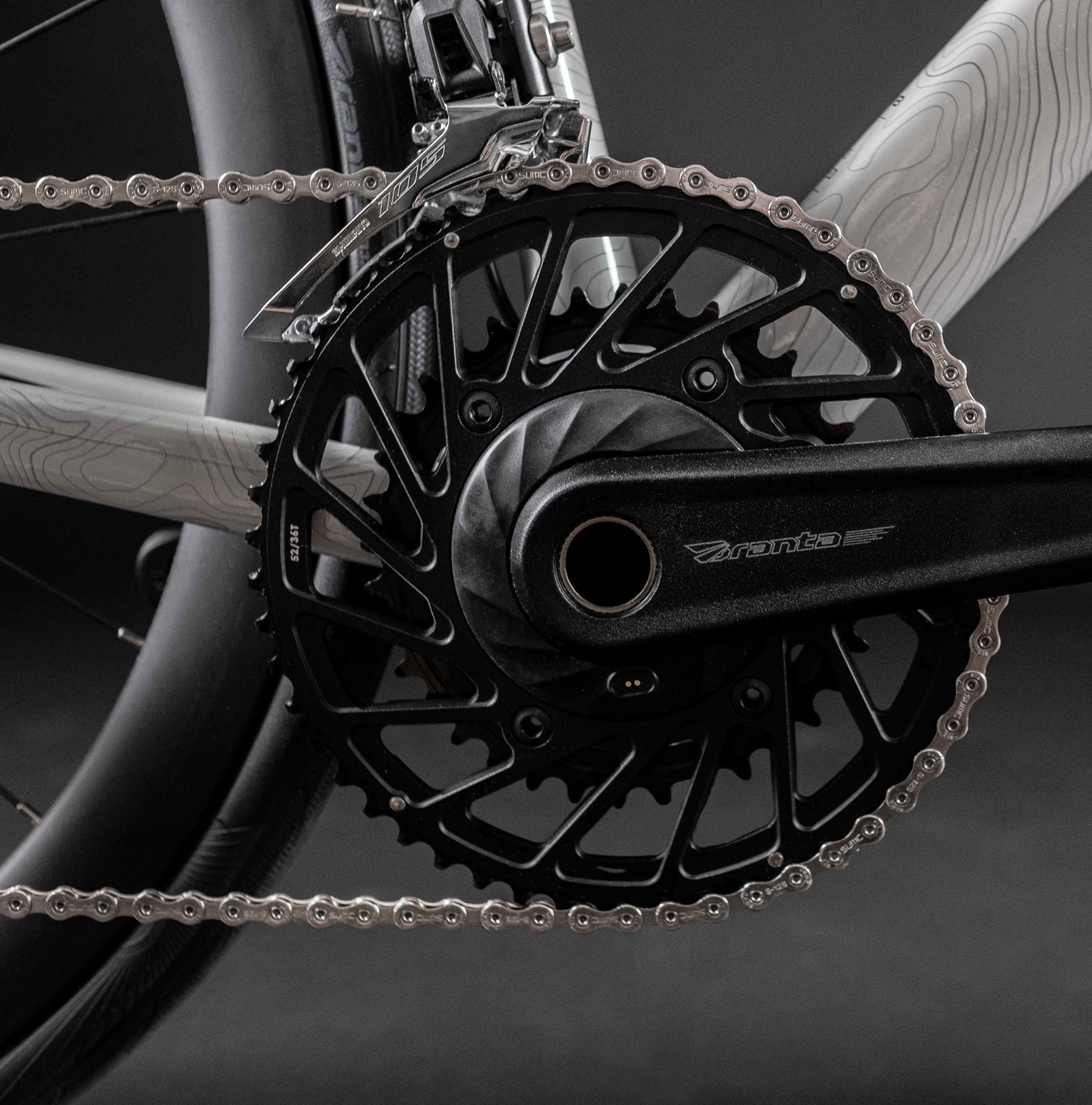

With a Branta alloy crankset featuring a built-in power meter and Find My connectivity, RS7 delivers the upgrades riders usually pay extra for, all baked in from day one.

Highlights RS7

  • Key Features

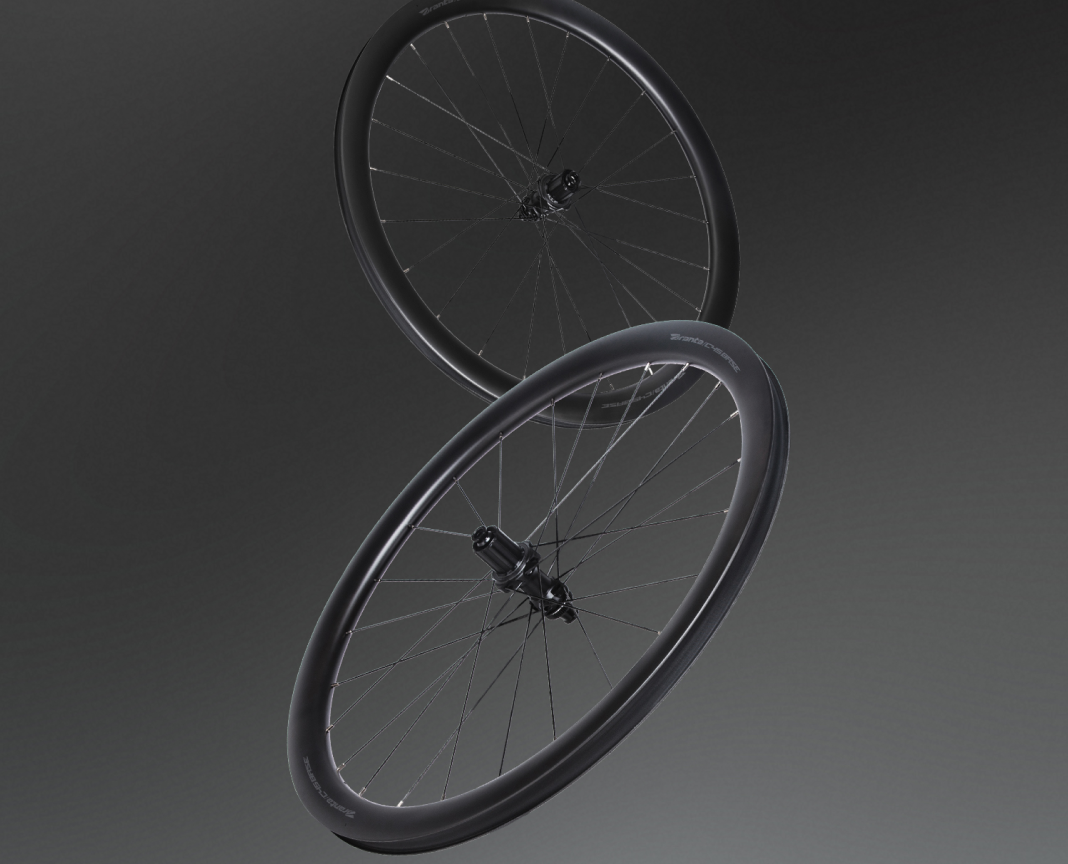

    Branta C45 Base carbon wheelset

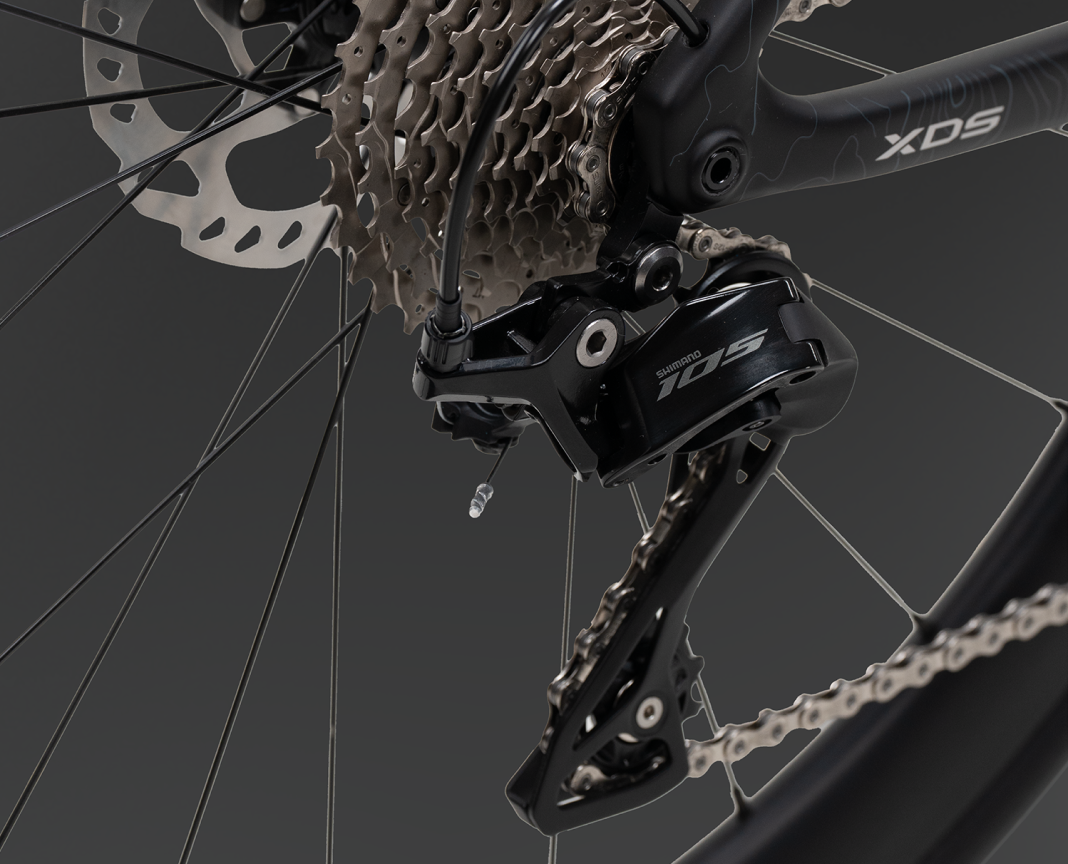

    Shimano 105 groupset

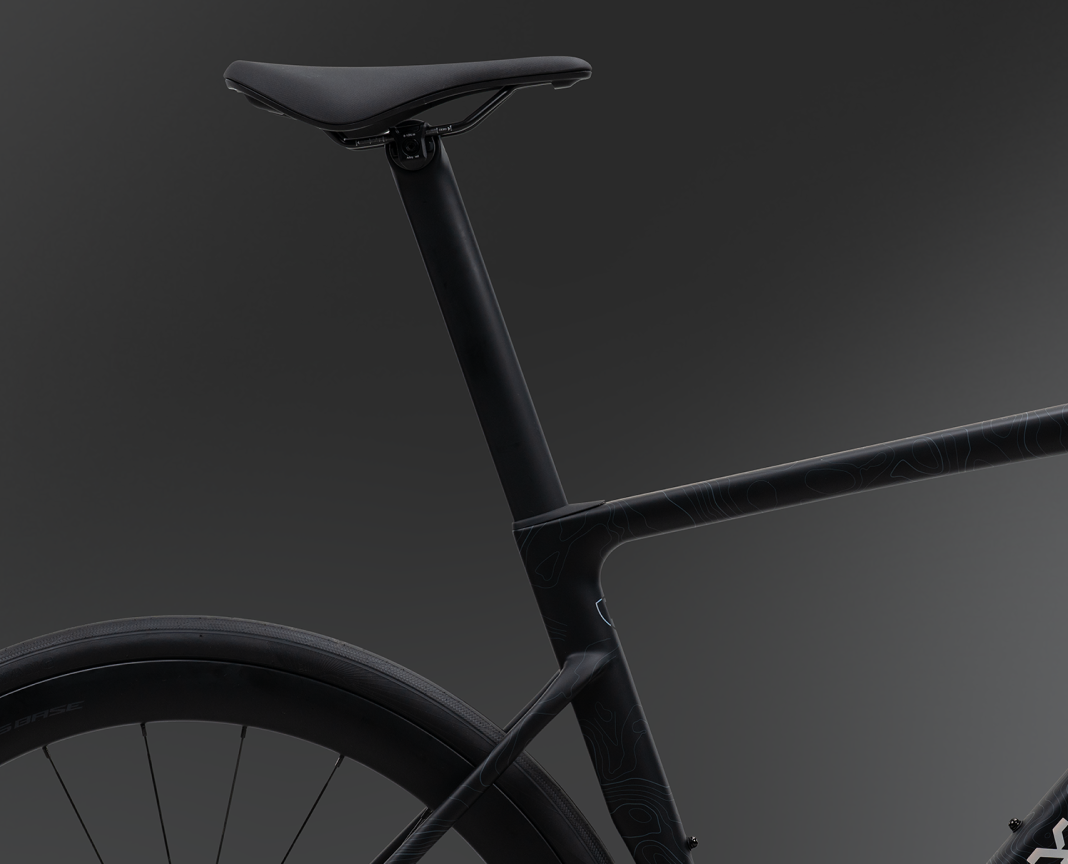

    Aero carbon seatpost

    Full carbon frame and fork | Full bike 8.49 kg

    prev
    next

    Branta C45 Base carbon wheelset

    Shimano 105 groupset

    Aero carbon seatpost

    Full carbon frame and fork | Full bike 8.49 kg

  • Technical Specifications

    FRAME

    XDS Carbon Frame, Toray T-700

    FORK

    XDS Carbon Fork, Toray T-700, 100x12mm Thru-axle

    HANDLEBAR / STEM

    Branta Carbon Integrated

    SEATPOST

    XDS Carbon Seatpost, Aero Profile

    REAR DERAILLEUR

    Shimano 105 RD-R7100

    FRONT DERAILLEUR

    Shimano 105 FD-R7100

    SHIFTERS

    Shimano 105 ST-R7120

    BRAKES

    Shimano 105 BR-R7170

    CASSETTE

    CS-R9012, 12-Speed, 11-34T

    CRANKSET

    Branta Alloy Power Meter Crankset, 52-36T,

    24mm Steel Spindle, Apply Find My Anti-Theft Technology

    BOTTOM BRACKET

    BSA 24mm

    ROTORS

    Shimano SM-RT70, F:160mm R:160mm

    CHAIN

    SUMC SX12

    WHEELSET

    Branta C45 Base Carbon Wheelset, Stainless Steel Spokes

    TIRES

    Branta R332, 700x32C, 60TPI

    SADDLE

    Branta R302, Steel Rails

    WEIGHT

    8.49 kg / 18.67 lbs (Size L)

    SIZE OPTIONS

    XS / S / M / L / XL / XXL

  • product geometry anchor

    Geometry & Dimensions

    Basic geometry
    title XS S M L XL XXL
    A — Seat Tube Length 420mm 440mm 470mm 490mm 510mm 530mm
    B — Top Tube Length 500mm 515mm 531mm 550mm 570mm 590mm
    C — Head Tube Length 130mm 135mm 145mm 160mm 175mm 200mm
    D — Seat Tube Angle 75° 75° 75° 74° 74° 74°
    E — Head Tube Angle 70° 72° 73° 73° 73° 74°
    F — Chainstay 410mm 410mm 410mm 410mm 410mm 410mm
    G — Wheelbase 973mm 976mm 982mm 993mm 1006mm 1016mm
    H — Bottom Bracket Drop 72mm 72mm 70mm 70mm 68mm 68mm
    I — Stack 526mm 535mm 546mm 561mm 574mm 602mm
    J — Reach 360mm 370mm 380mm 390mm 400mm 412mm
    K — Front Center 574mm 577mm 581mm 593mm 606mm 616mm
    O — Stand Over 737mm 752mm 772mm 789mm 807mm 830mm
    • A — Seat Tube Length 420mm
      B — Top Tube Length 500mm
      C — Head Tube Length 130mm
      D — Seat Tube Angle 75°
      E — Head Tube Angle 70°
      F — Chainstay 410mm
      G — Wheelbase 973mm
      H — Bottom Bracket Drop 72mm
      I — Stack 526mm
      J — Reach 360mm
      K — Front Center 574mm
      O — Stand Over 737mm
    • A — Seat Tube Length 440mm
      B — Top Tube Length 515mm
      C — Head Tube Length 135mm
      D — Seat Tube Angle 75°
      E — Head Tube Angle 72°
      F — Chainstay 410mm
      G — Wheelbase 976mm
      H — Bottom Bracket Drop 72mm
      I — Stack 535mm
      J — Reach 370mm
      K — Front Center 577mm
      O — Stand Over 752mm
    • A — Seat Tube Length 470mm
      B — Top Tube Length 531mm
      C — Head Tube Length 145mm
      D — Seat Tube Angle 75°
      E — Head Tube Angle 73°
      F — Chainstay 410mm
      G — Wheelbase 982mm
      H — Bottom Bracket Drop 70mm
      I — Stack 546mm
      J — Reach 380mm
      K — Front Center 581mm
      O — Stand Over 772mm
    • A — Seat Tube Length 490mm
      B — Top Tube Length 550mm
      C — Head Tube Length 160mm
      D — Seat Tube Angle 74°
      E — Head Tube Angle 73°
      F — Chainstay 410mm
      G — Wheelbase 993mm
      H — Bottom Bracket Drop 70mm
      I — Stack 561mm
      J — Reach 390mm
      K — Front Center 593mm
      O — Stand Over 789mm
    • A — Seat Tube Length 510mm
      B — Top Tube Length 570mm
      C — Head Tube Length 175mm
      D — Seat Tube Angle 74°
      E — Head Tube Angle 73°
      F — Chainstay 410mm
      G — Wheelbase 1006mm
      H — Bottom Bracket Drop 68mm
      I — Stack 574mm
      J — Reach 400mm
      K — Front Center 606mm
      O — Stand Over 807mm
    • A — Seat Tube Length 530mm
      B — Top Tube Length 590mm
      C — Head Tube Length 200mm
      D — Seat Tube Angle 74°
      E — Head Tube Angle 74°
      F — Chainstay 410mm
      G — Wheelbase 1016mm
      H — Bottom Bracket Drop 68mm
      I — Stack 602mm
      J — Reach 412mm
      K — Front Center 616mm
      O — Stand Over 830mm
    Component geometry
    title XS S M L XL XXL
    Fork Rake/Offset 55mm 55mm 45mm 45mm 45mm 45mm
    Trail 65mm 58mm 62mm 60mm 58mm 52mm
    Handlebar 360mm 360mm 380mm 380mm 400mm 400mm
    Stem 90mm 100mm 110mm 110mm 120mm 120mm
    Crankset 165mm 165mm 170mm 170mm 172.5mm 172.5mm
    Seat Post 300mm 300mm 350mm 350mm 400mm 400mm
    • Fork Rake/Offset 55mm
      Trail 65mm
      Handlebar 360mm
      Stem 90mm
      Crankset 165mm
      Seat Post 300mm
    • Fork Rake/Offset 55mm
      Trail 58mm
      Handlebar 360mm
      Stem 100mm
      Crankset 165mm
      Seat Post 300mm
    • Fork Rake/Offset 45mm
      Trail 62mm
      Handlebar 380mm
      Stem 110mm
      Crankset 170mm
      Seat Post 350mm
    • Fork Rake/Offset 45mm
      Trail 60mm
      Handlebar 380mm
      Stem 110mm
      Crankset 170mm
      Seat Post 350mm
    • Fork Rake/Offset 45mm
      Trail 58mm
      Handlebar 400mm
      Stem 120mm
      Crankset 172.5mm
      Seat Post 400mm
    • Fork Rake/Offset 45mm
      Trail 52mm
      Handlebar 400mm
      Stem 120mm
      Crankset 172.5mm
      Seat Post 400mm
