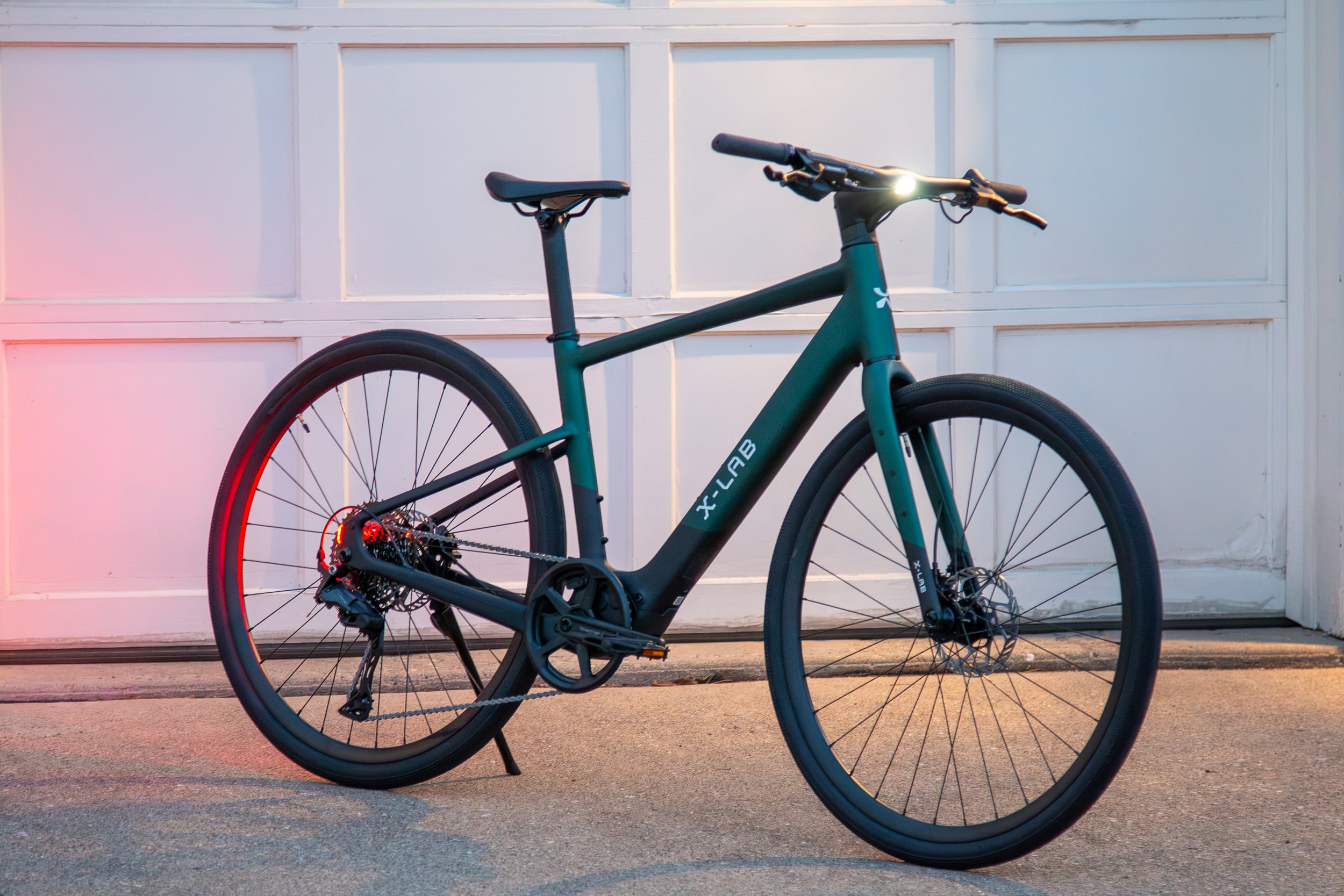

Highlights SP5+

• Key Features



  Class 2 throttle + Apple Find My anti-theft technology

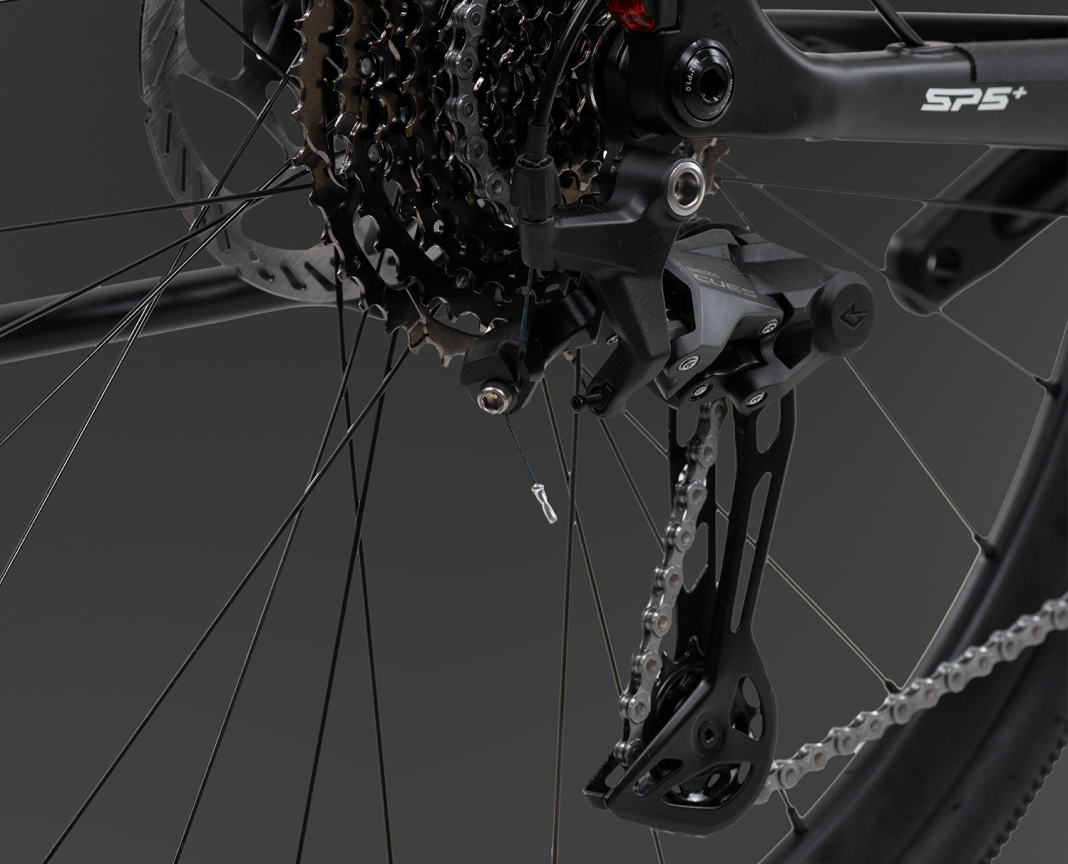

  Shimano CUES 9-speed drivetrain

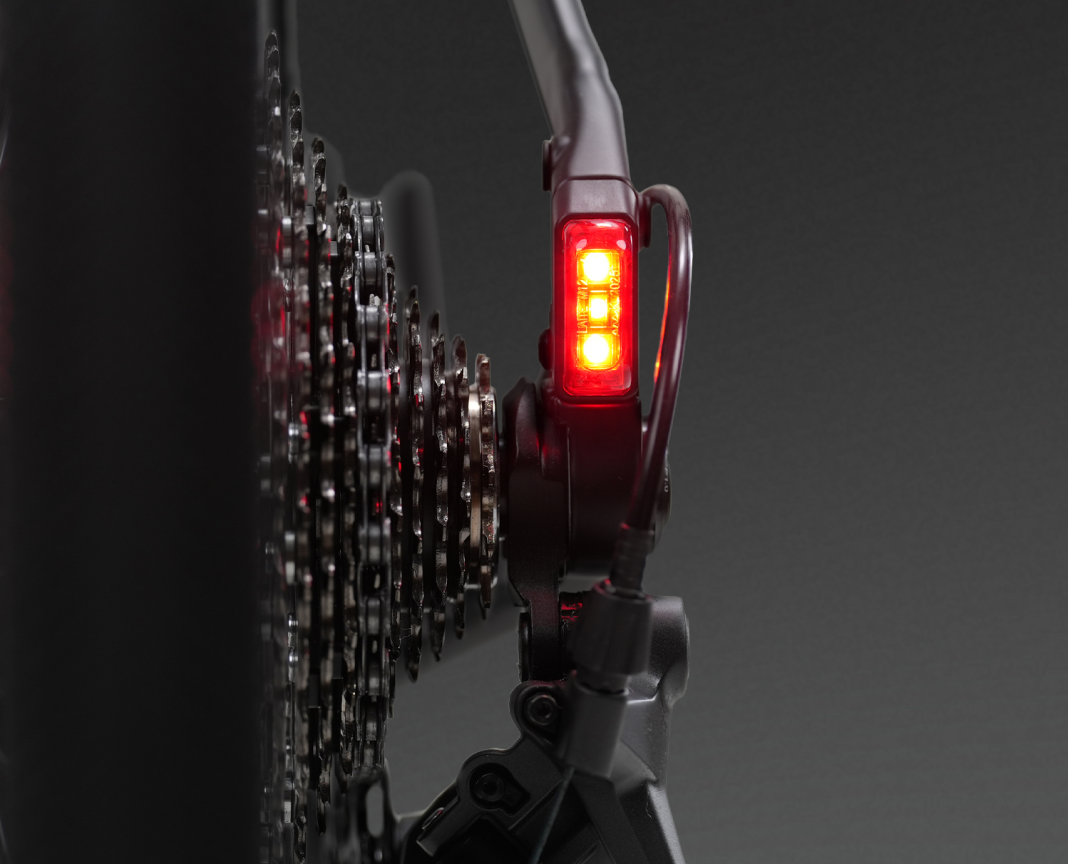

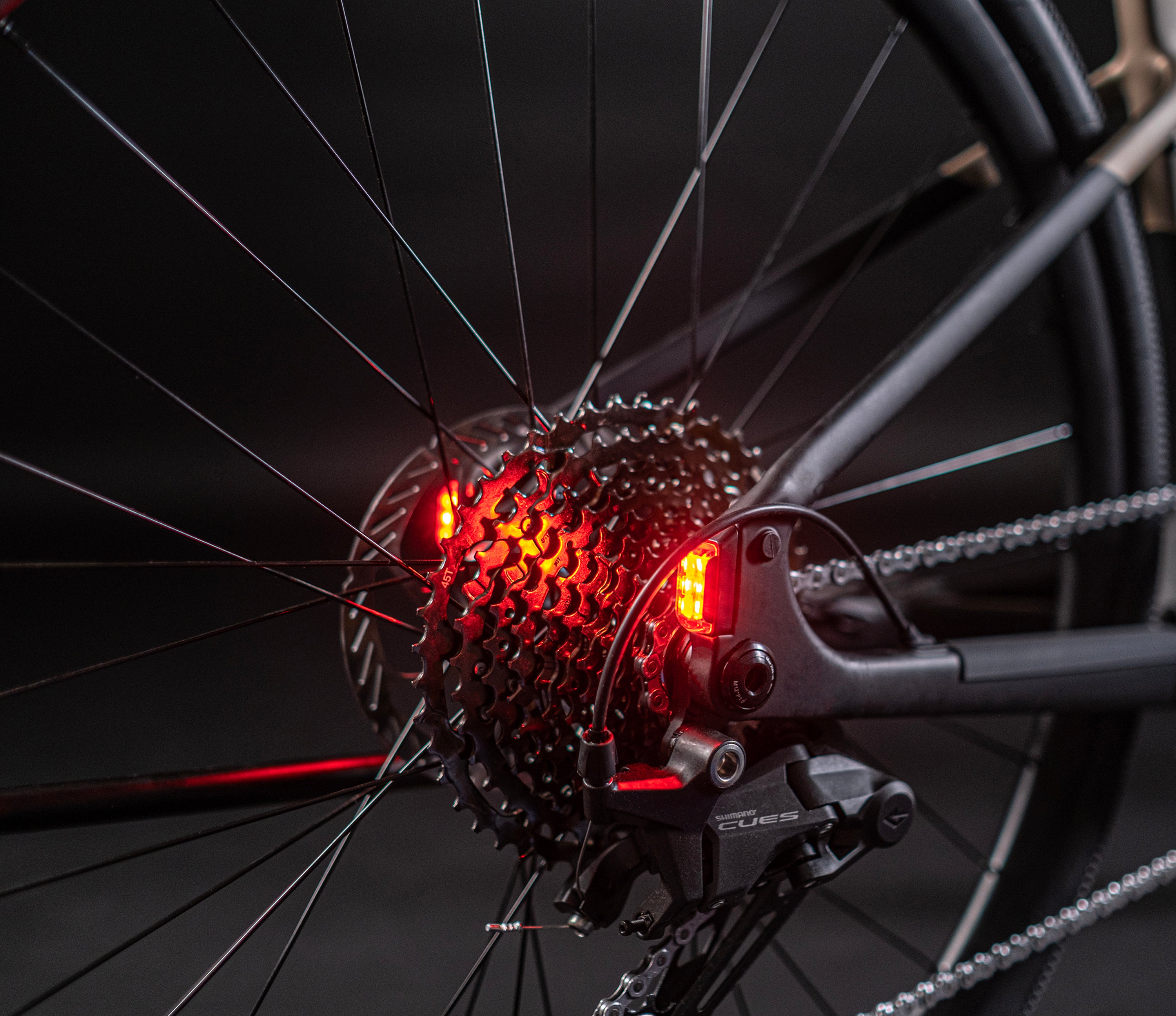

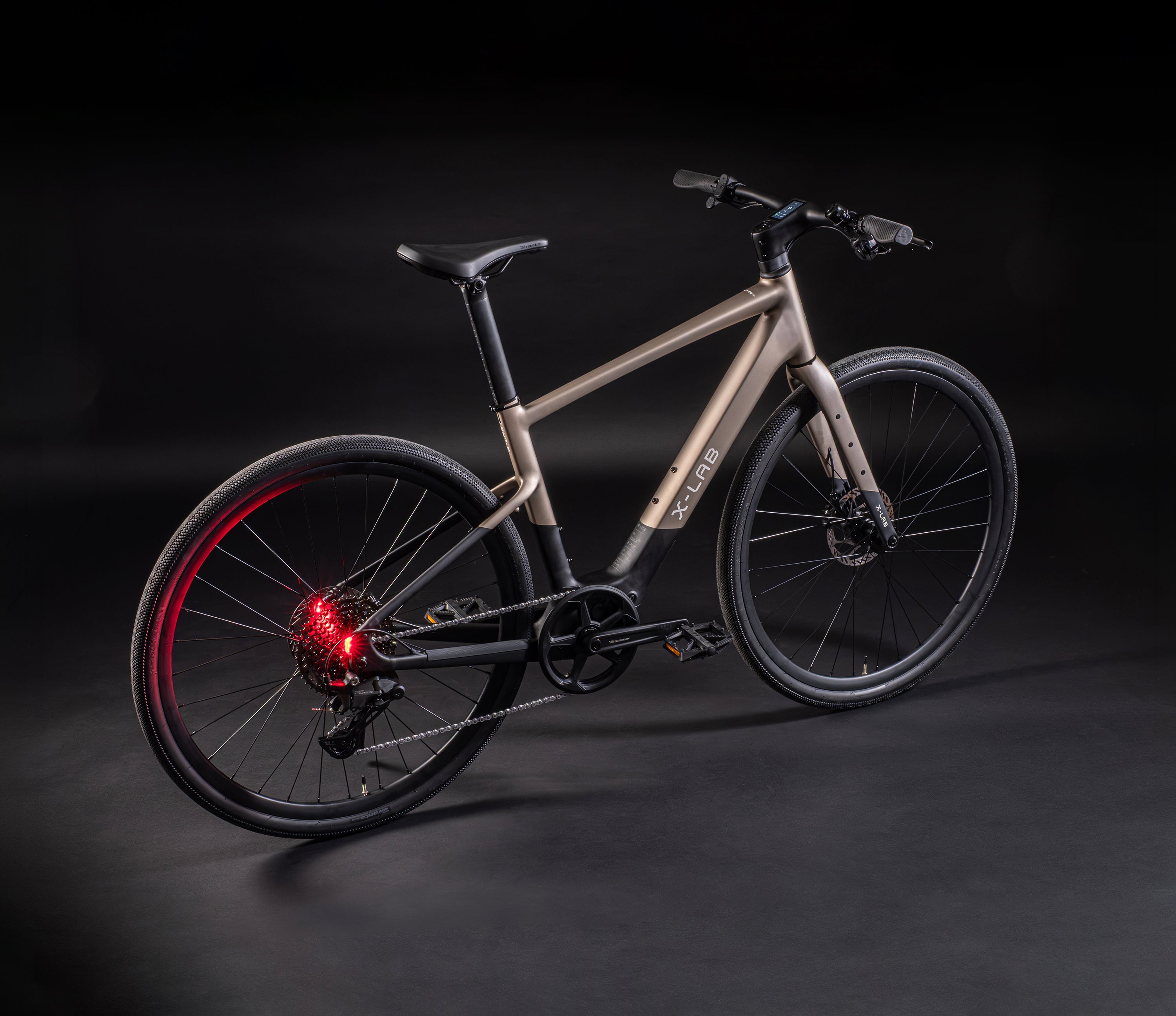

  Integrated rear taillight + brake light



  Sport setup: 700c gravel all-terrain tires and fitness riding position

  prev

  next



  Class 2 throttle + Apple Find My anti-theft technology



  Shimano CUES 9-speed drivetrain



  Integrated rear taillight + brake light



  Sport setup: 700c gravel all-terrain tires and fitness riding position

• Technical Specifications

  FRAME

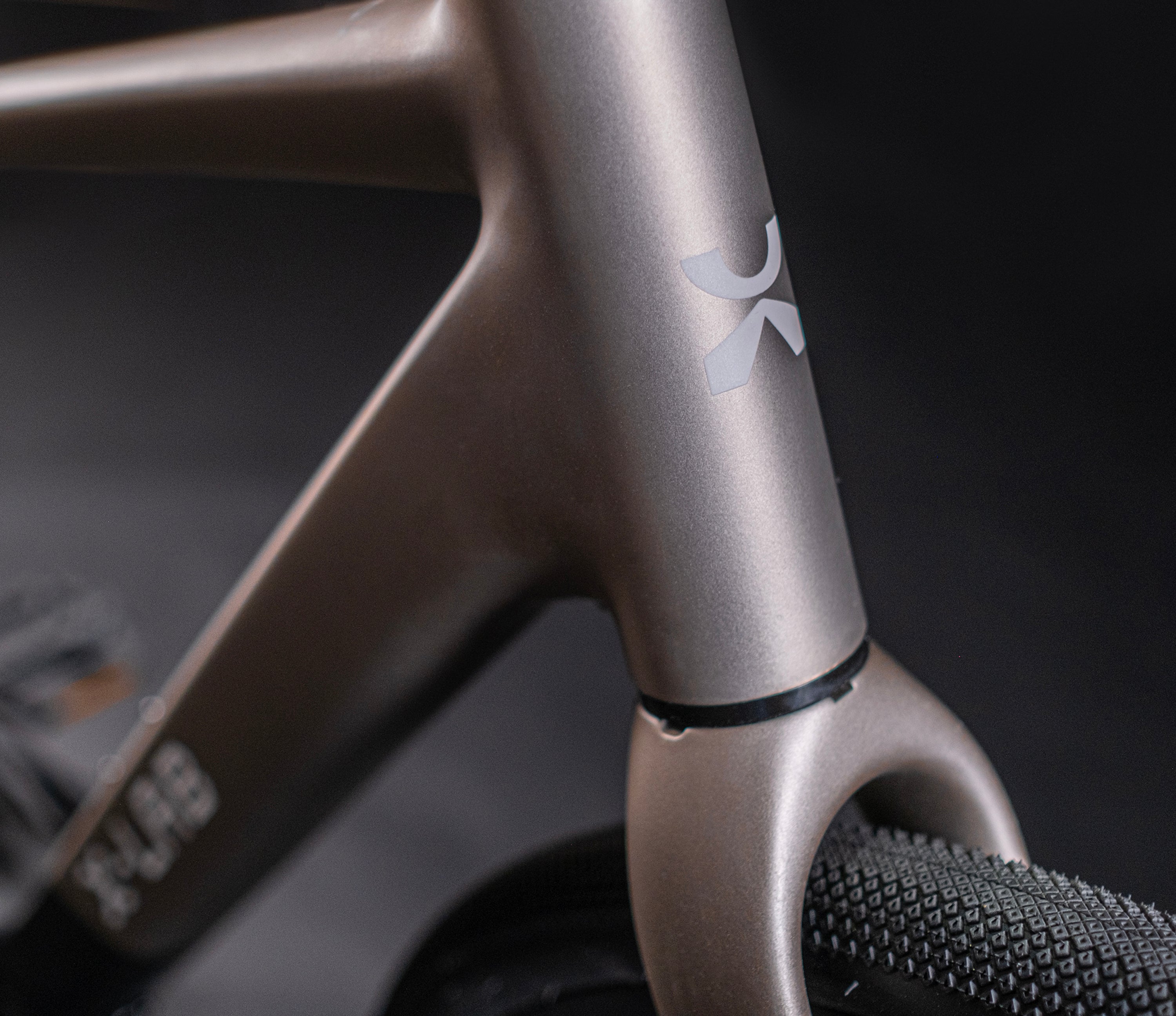

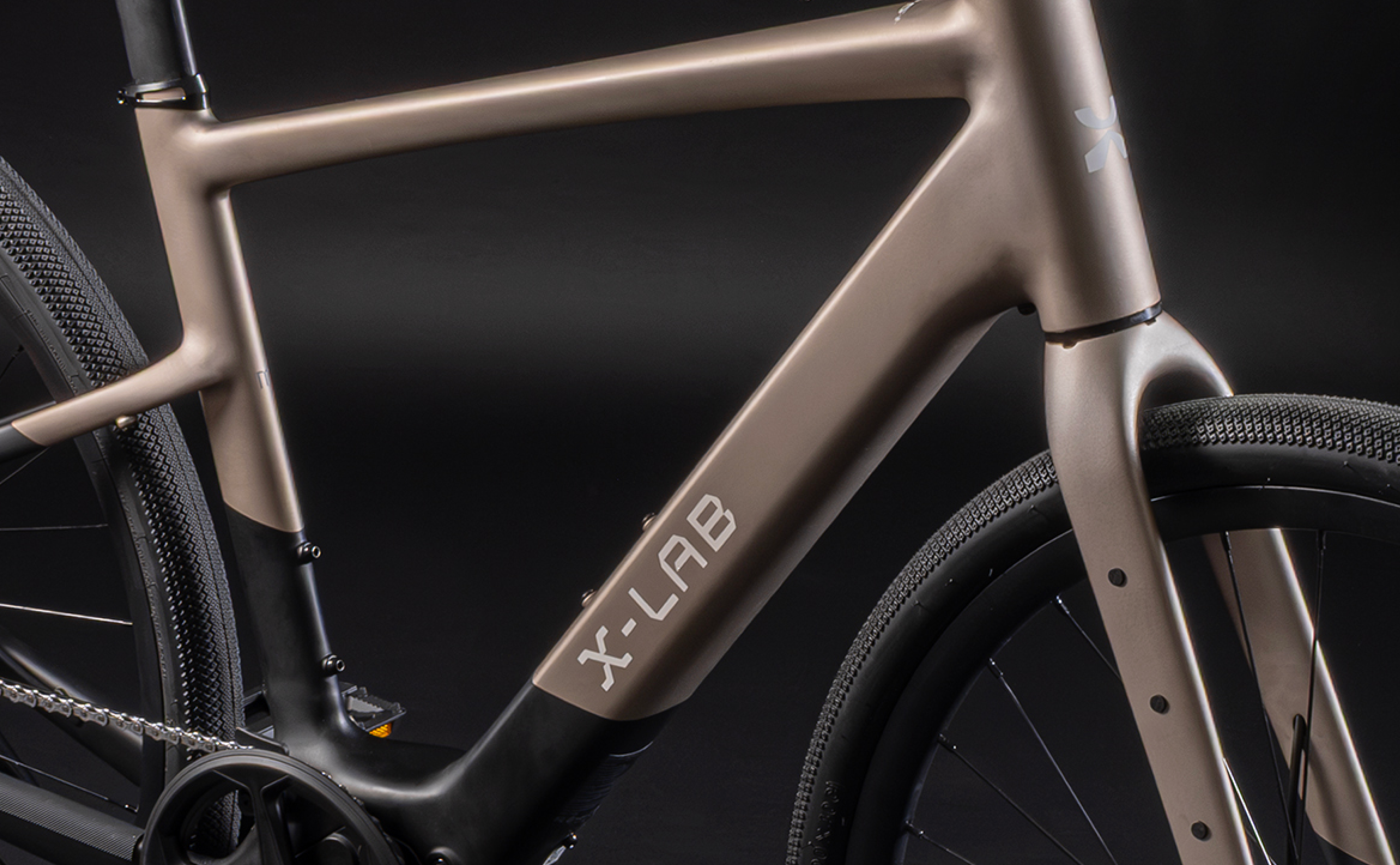

  XDS X6 Alloy Frame, UDH Compatible

  FORK

  XDS Carbon Fork, 100x12mm Thru-axle

  HANDLEBAR / STEM

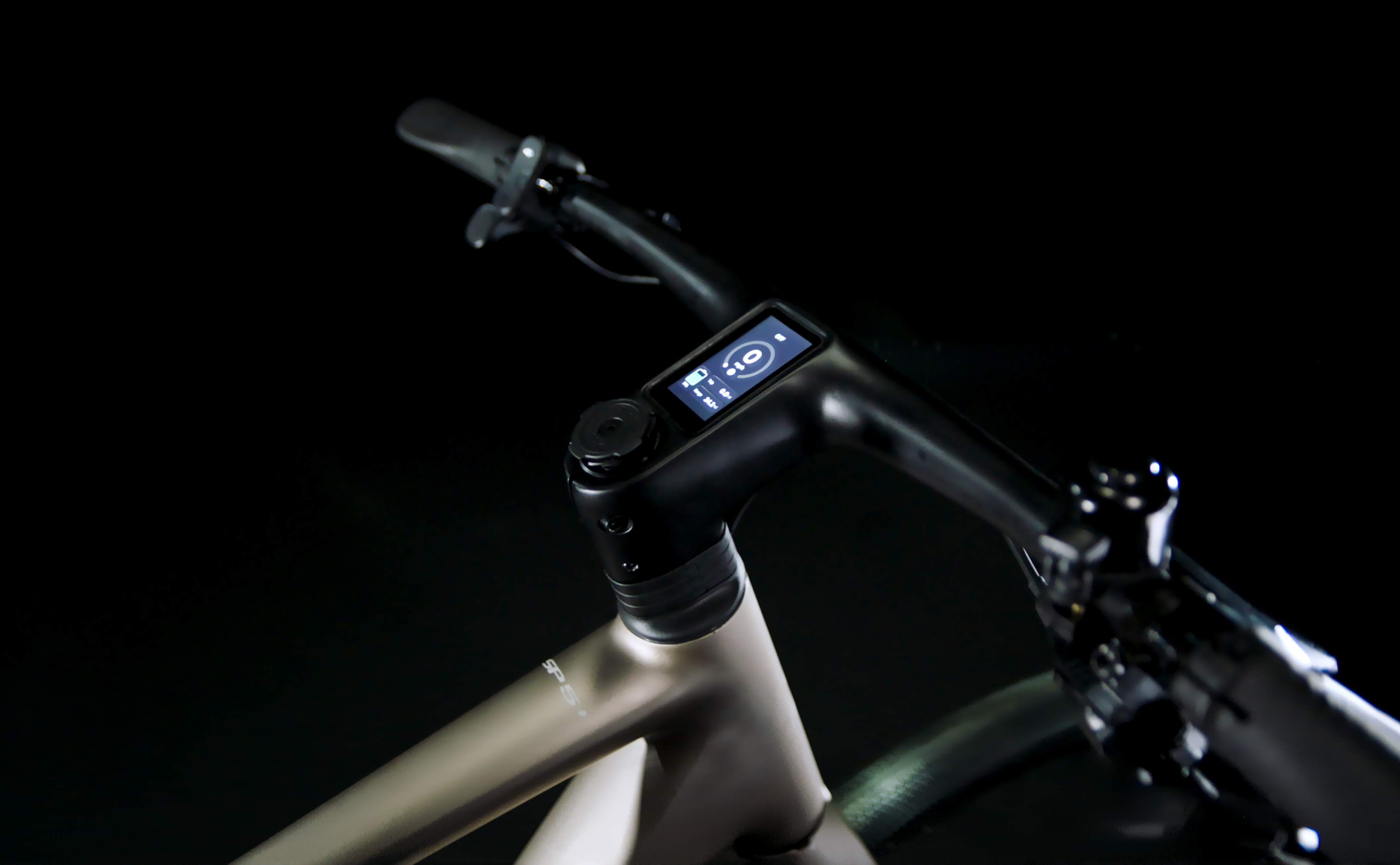

  Branta Alloy Integrated, w/ Display & Front Light, 680mm

  Width, 90mm Length, 6 Degree Rise, 9 Degree Backsweep

  SEATPOST

  XDS Alloy Seatpost, Aero Shape, 350mm Length

  REAR DERAILLEUR

  Shimano Cues RD-U4000, 9-Speed

  SHIFTER

  Shimano Cues 9-Speed

  BRAKES

  Branta EC215D Hydraulic E-Bike Brake, w/ Cutoff Switch, 3 Finger Lever,

  2 Piston Caliper

  CASSETTE

  Shimano CS-LG300 11-46T, 9-Speed

  CRANKSET

  Branta Alloy Crankset, 46T, Narrow-wide Teeth

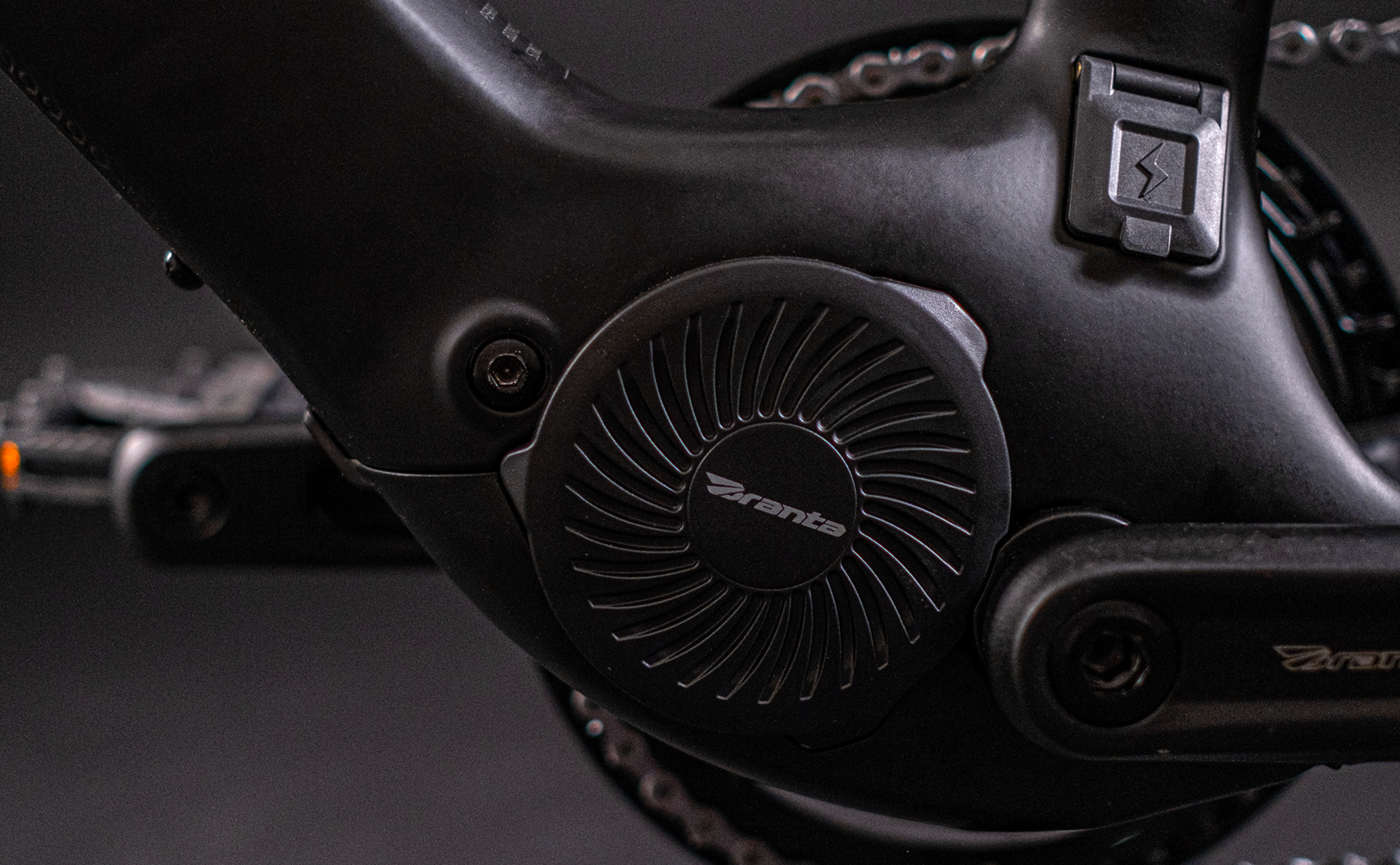

  MOTOR

  XDS Mid-drive X800 Motor, 250 Watt Continuous Rated Power, 400 Watt Peak Power, 85Nm Peak Torque, Dual-sided Torque Sensor

  BATTERY

  XDS Rechargeable Li-ion Battery, 339Wh, LG Battery Cells, 3A Charger (0-100% 3hr 15min)

  LIGHTS

  Integrated F+R Lights (+ Brake Lights)

  SPEED

  Pedal-assist and Throttle, Class 2 20mph (Unlock to Class 3 via the X-Lab Bikes Mobile App)

  RANGE

  Ride up to 50 miles on a Single Charge

  TESTING AND COMPLIANCE

  UL2271 and UL2849 Certified, Ingress Ratings: Complete Bike IP54, Battery IPX7, Motor and Other Electronics IPX6

  LOAD CAPACITY

  Max Load 265 lbs (120 kg)

  CONNECTIVITY

  Apple Find My Anti-Theft Technology, Bluetooth, OTA Updates

  ROTORS

  Branta Z8, F:160mm R:160mm

  CHAIN

  KMC E-GLIDE-S

  WHEELSET

  Branta Alloy E-Bike Wheelset

  TIRES

  Branta R240, 700x40C, 30TPI

  Max Tire Clearance: 45C w/ Full-Wrapped Fender

  SADDLE

  Branta SRX+

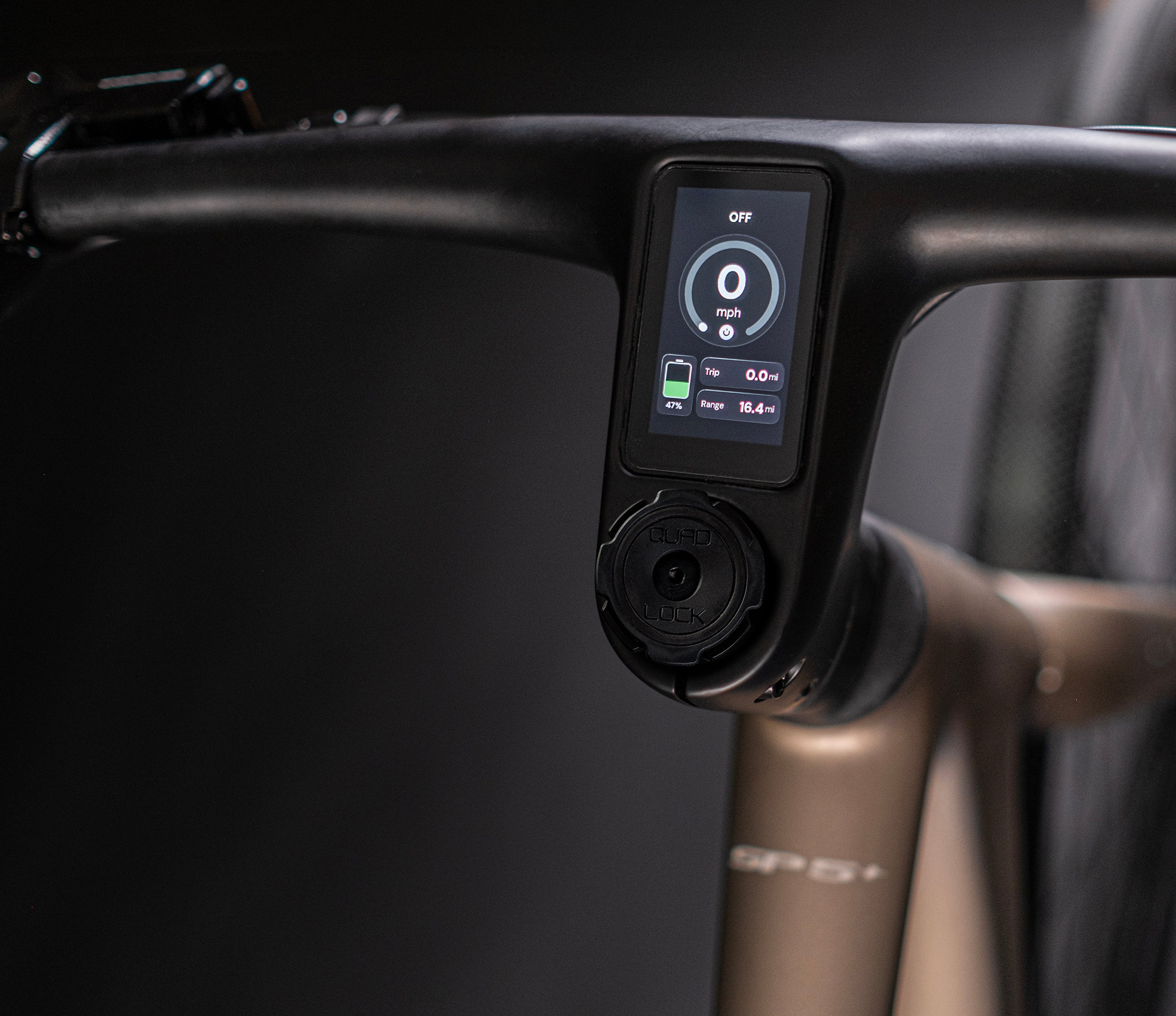

  PHONE HOLDER

  Quad Lock Mount

  WEIGHT

  16.79 kg / 37.01 lbs (Size L)

  SIZE OPTIONS

  S / M / L

• product geometry anchor

  Geometry & Dimensions



  Basic geometry

  title	S	M	L
  A — Seat Tube Length	406mm	457mm	508mm
  B — Top Tube Length	541mm	580mm	609mm
  C — Head Tube Length	171mm	171mm	197mm
  D — Seat Tube Angle	75°	74°	74°
  E — Head Tube Angle	69°	71°	72°
  F — Chainstay	445mm	445mm	445mm
  G — Wheelbase	1080mm	1081mm	1100mm
  H — Bottom Bracket Drop	71mm	65mm	65mm
  I — Stack	565mm	594mm	621mm
  J — Reach	385mm	410mm	425mm
  K — Front Center	644mm	645mm	663mm
  O — Stand-over	774mm	787mm	823mm

  • S

    A — Seat Tube Length	406mm
    B — Top Tube Length	541mm
    C — Head Tube Length	171mm
    D — Seat Tube Angle	75°
    E — Head Tube Angle	69°
    F — Chainstay	445mm
    G — Wheelbase	1080mm
    H — Bottom Bracket Drop	71mm
    I — Stack	565mm
    J — Reach	385mm
    K — Front Center	644mm
    O — Stand-over	774mm

  • M

    A — Seat Tube Length	457mm
    B — Top Tube Length	580mm
    C — Head Tube Length	171mm
    D — Seat Tube Angle	74°
    E — Head Tube Angle	71°
    F — Chainstay	445mm
    G — Wheelbase	1081mm
    H — Bottom Bracket Drop	65mm
    I — Stack	594mm
    J — Reach	410mm
    K — Front Center	645mm
    O — Stand-over	787mm

  • L

    A — Seat Tube Length	508mm
    B — Top Tube Length	609mm
    C — Head Tube Length	197mm
    D — Seat Tube Angle	74°
    E — Head Tube Angle	72°
    F — Chainstay	445mm
    G — Wheelbase	1100mm
    H — Bottom Bracket Drop	65mm
    I — Stack	621mm
    J — Reach	425mm
    K — Front Center	663mm
    O — Stand-over	823mm

  Component geometry

  title	S	M	L
  Fork Rake/Offset	46mm	46mm	46mm
  Trail	90mm	74mm	70mm
  Stem	90mm	90mm	90mm

  • S

    Fork Rake/Offset	46mm
    Trail	90mm
    Stem	90mm

  • M

    Fork Rake/Offset	46mm
    Trail	74mm
    Stem	90mm

  • L

    Fork Rake/Offset	46mm
    Trail	70mm
    Stem	90mm

• FAQ

  General

  What rider type is the SP5+ designed for?

  SP5+ is for the active rider who just needs that little extra push - to get there faster, to arrive with a little less sweat, or take the long way home. It’s a trimmed down, fitness-focused e-bike that’s designed to amplify your every move.

  What’s the weight limit for the bike?

  SP5+ has a weight limit of 265lbs (120kg), which includes the rider and any gear or cargo.

  Is this bike compatible with fenders and a rear rack?

  SP5+ is compatible with full length front and rear fenders. It’s also compatible with universal rear racks that mount to the rear dropouts and seat stays. To mount the rear fender and rack to the frame, the seat stay bridge adapter must be installed on the underside of the seat stays.

  What is the maximum speed?

  SP5+ ships as a Class 2 e-bike, meaning it has both throttle and pedal assist to 20mph. The e-bike can be updated to Class 3 options via the X-LAB Bikes mobile app. It is the rider’s responsibility to comply with all local laws and regulations related to e-bikes.

  Is the battery safe?

  Yes, the battery on SP5+ is designed to be safe and reliable. In addition to using Tier-1 battery cells from LG, the battery and complete e-bike system are tested and certified to UL 2271 and UL 2849.

  Where can my bike be serviced and repaired?

  Any local bike shop will be able to provide general service for your SP5+. For any maintenance of the e-system or warranty issues we recommend going to an X-LAB dealer to receive the best expert guidance and support.

  Technical

  What is the maximum tire clearance?

  SP5+ has clearance for up to 45c tires.

  Are other cockpit size options available?

  SP5+ uses a custom-designed integrated cockpit. There are three different cockpits for ST5+, SP5+, and SL5+. These are all cross compatible with all X-LAB e-bikes and can be purchased separately if a different ride position is desired.

  Are other crank length or chainring options available?

  SP5+ uses a standard ISIS spline interface for the crank arms, making it compatible with a wide range of aftermarket crank options.

  Who makes the motor and battery?

  The motor and battery on SP5+ are developed and manufactured in-house by X-LAB. The battery cells are sourced from LG.

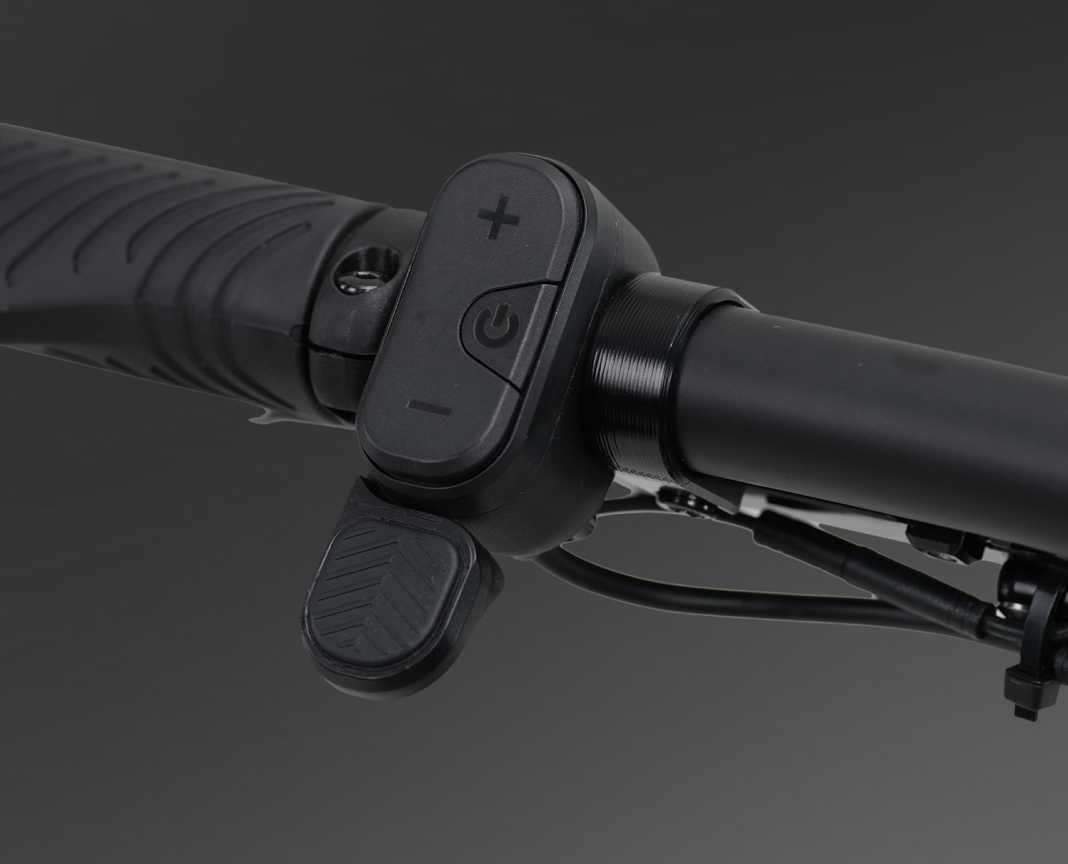

  Can I remove the throttle controller?

  Yes. The throttle controller can be removed if you prefer a cleaner cockpit setup or want to ride without throttle functionality. Please contact your local X-LAB dealer for assistance with removal and configuration.

  Is the battery removable?

  To minimize weight and complexity of the overall e-bike, the battery on SP5+ is designed to be removed only by an X-LAB mechanic.

  Is the wheelset tubeless ready?

  The rims and tires on SP5+ are not tubeless compatible.
