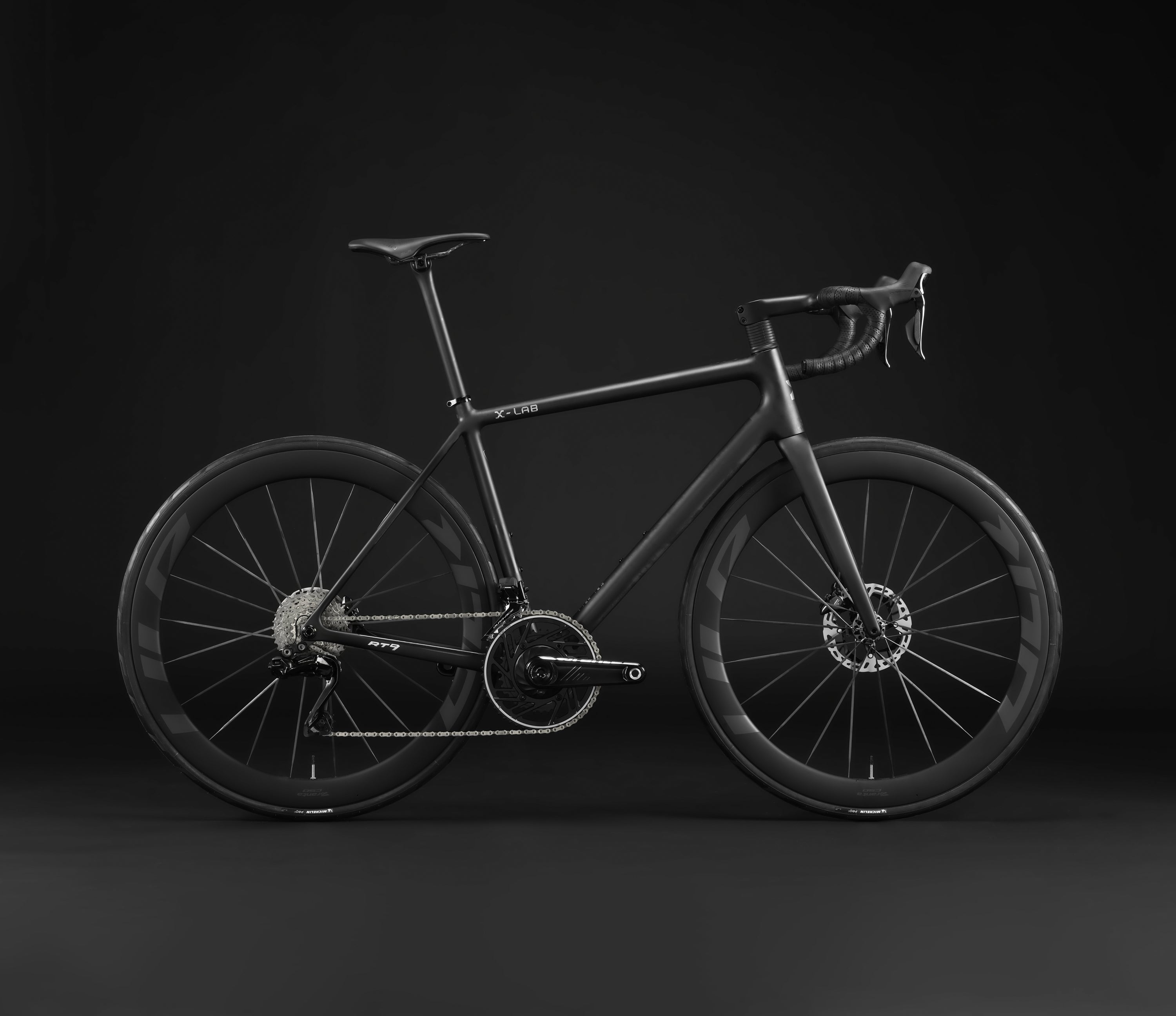

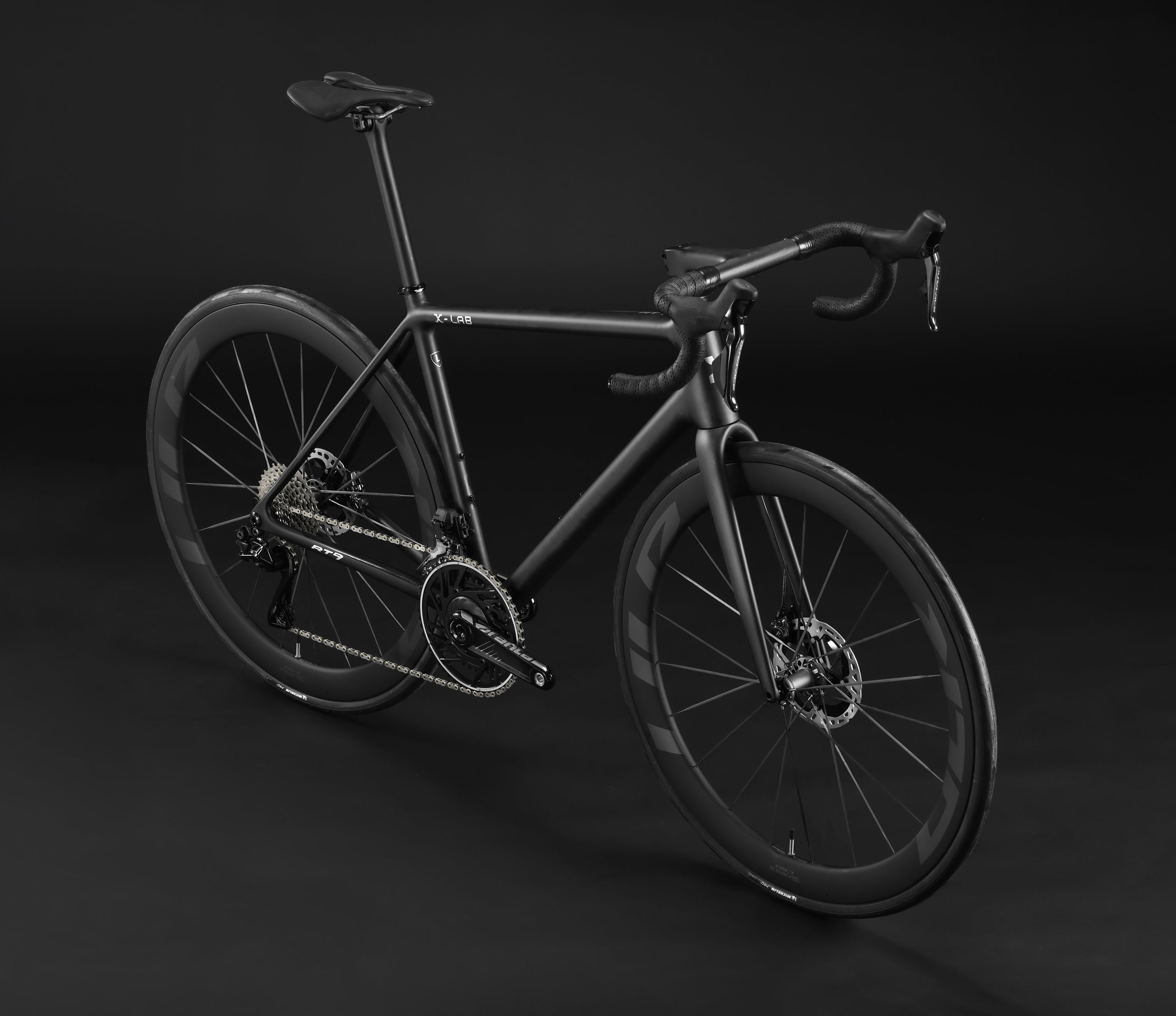

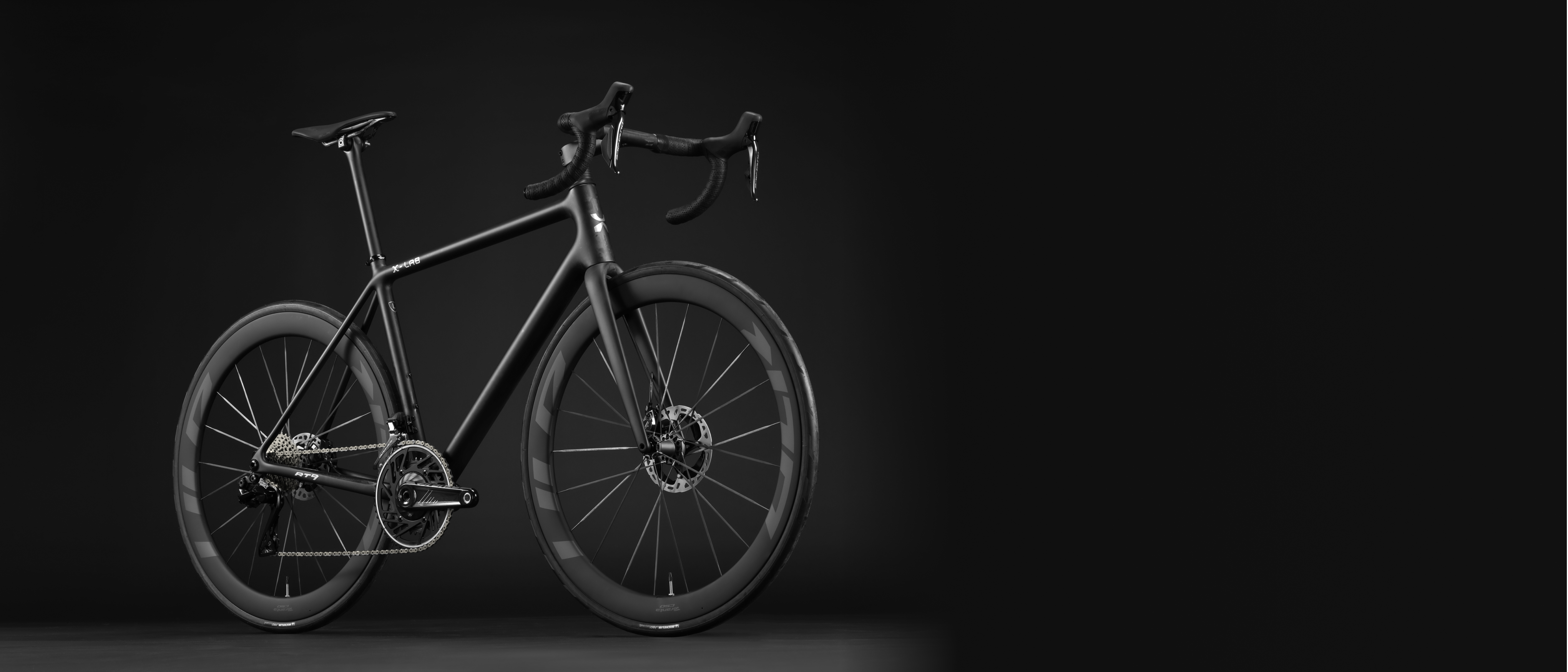

Highlights RT9

• Key Features



  Branta C50 ULR carbon wheelset with carbon spokes | 1,230 g



  Branta carbon crankset with integrated power meter + Apple Find My anti-theft technology



  Shimano Dura-Ace groupset



  XDS carbon frameset with Toray T1100, Full bike 6.2kg

  prev

  next



  Branta C50 ULR carbon wheelset with carbon spokes | 1,230 g



  Branta carbon crankset with integrated power meter + Apple Find My anti-theft technology



  Shimano Dura-Ace groupset



  XDS carbon frameset with Toray T1100, Full bike 6.2kg

• Technical Specifications

  FRAME

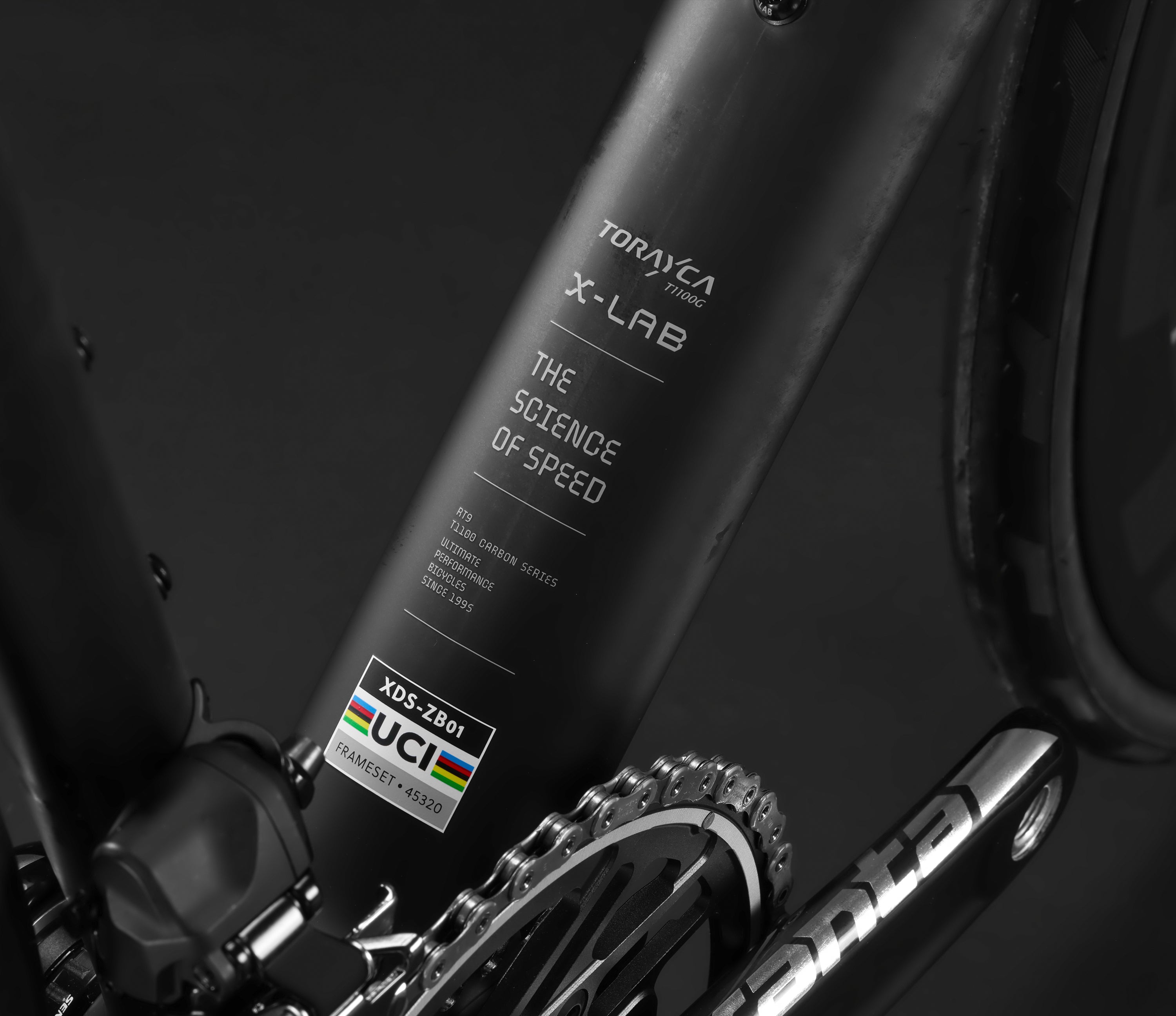

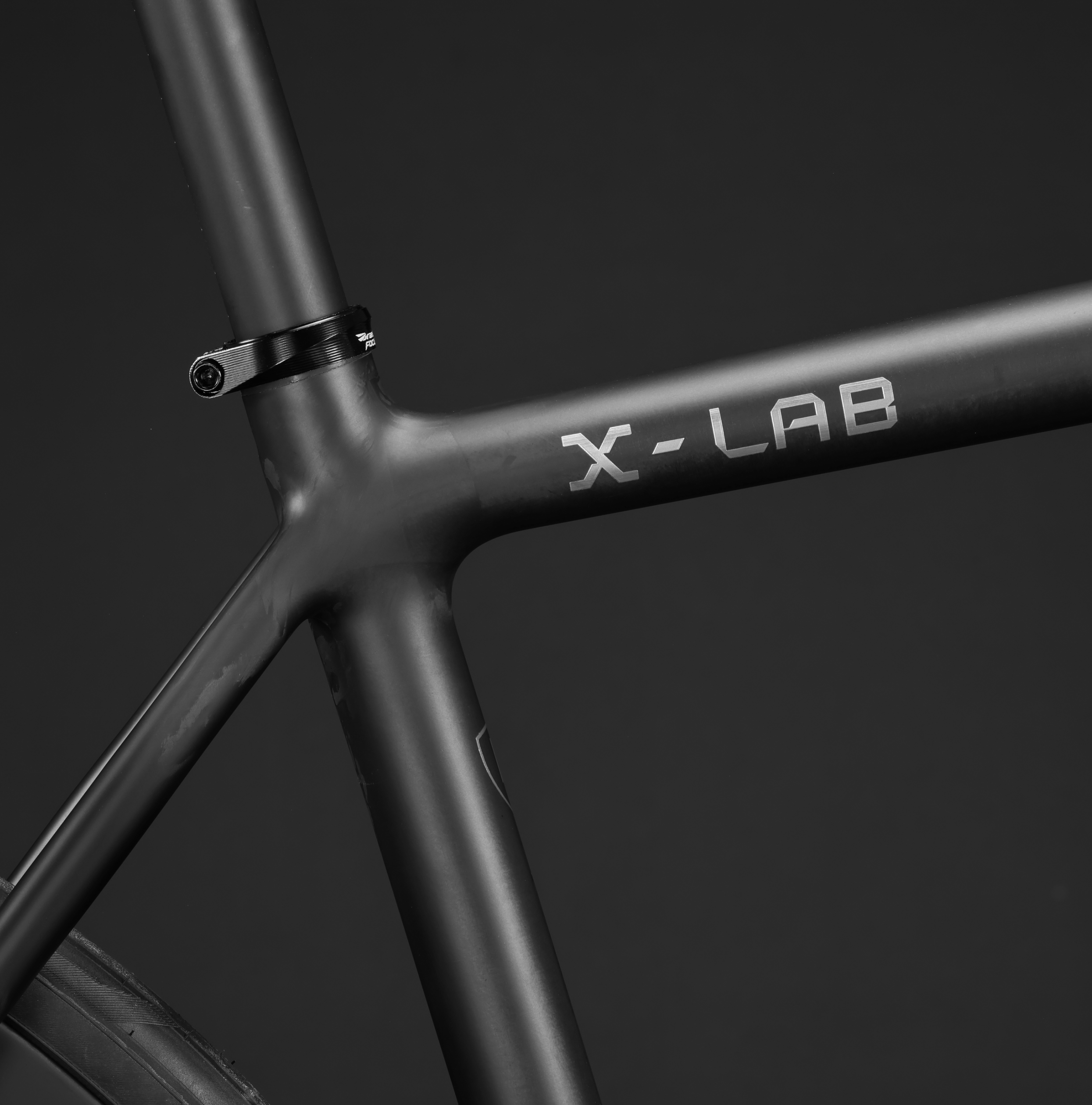

  XDS Carbon Frame, Toray T-1100 + M40X, UDH Compatible

  FORK

  XDS Carbon Fork, Toray T-1100, 100x12mm Thru-axle

  HANDLEBAR / STEM

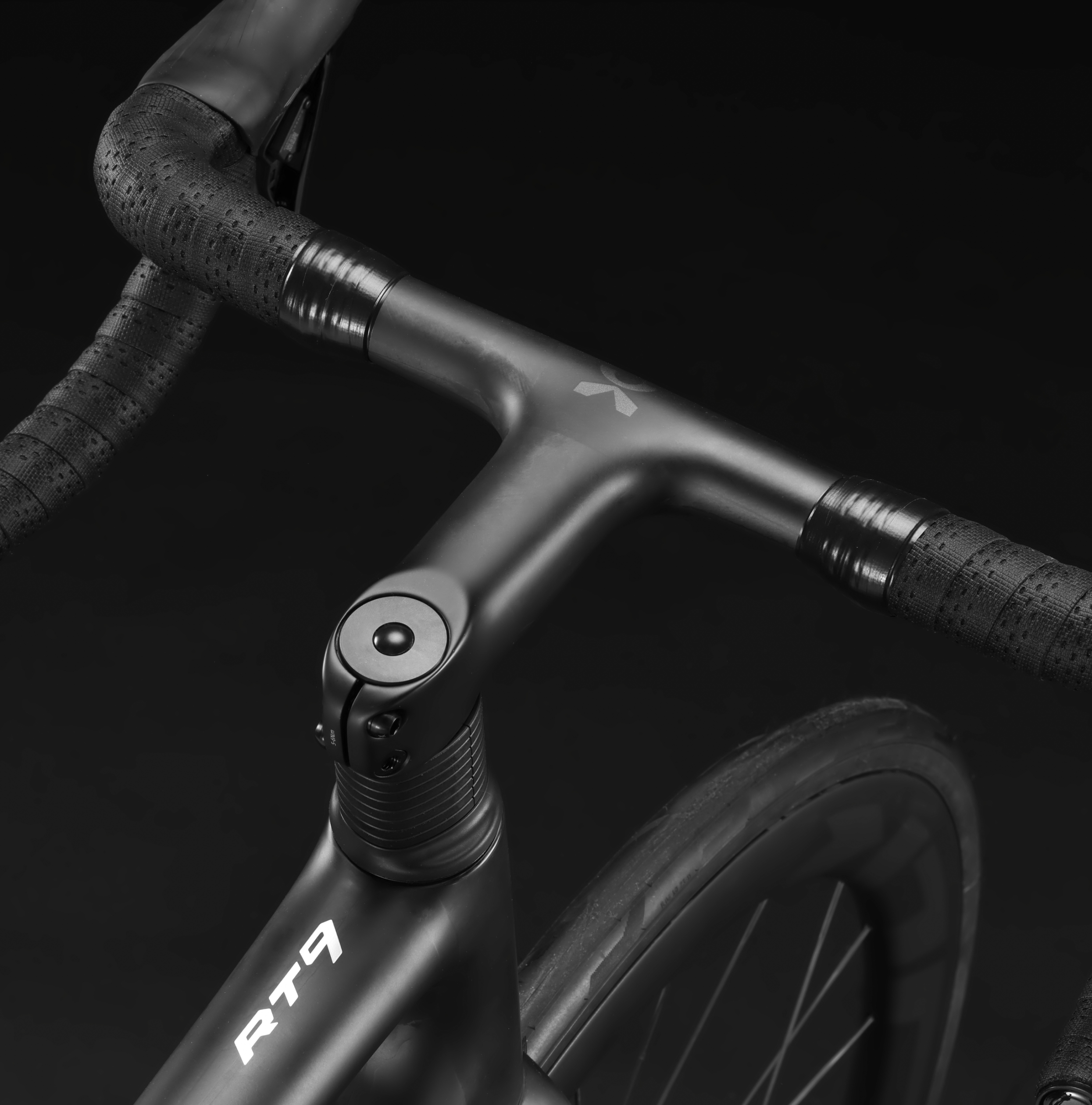

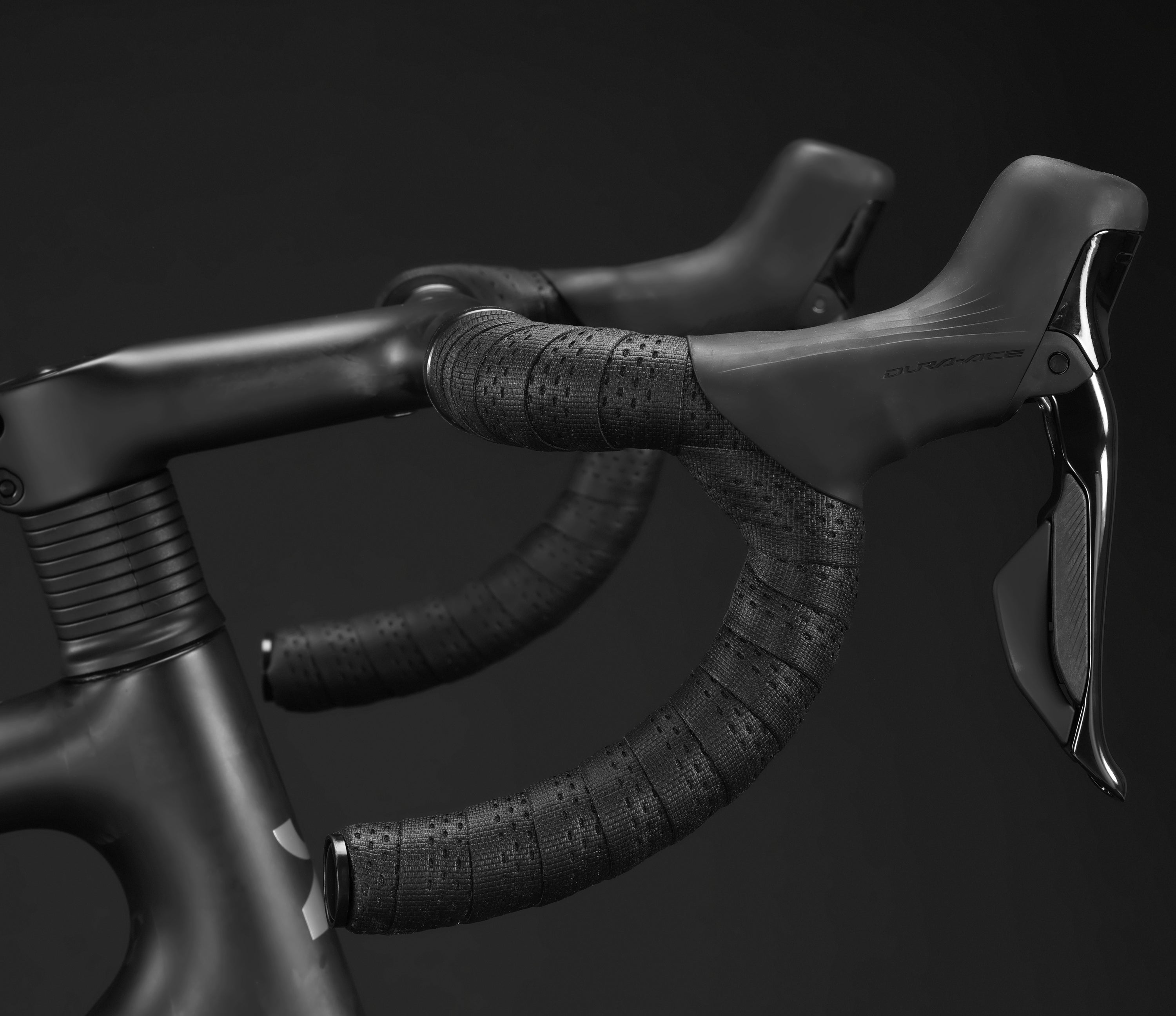

  Branta Carbon Integrated

  SEATPOST

  XDS Carbon Seatpost, 27.2mm

  REAR DERAILLEUR

  Shimano Dura-Ace RD-R9250 Di2

  FRONT DERAILLEUR

  Shimano Dura-Ace FD-R9250 Di2

  SHIFTERS

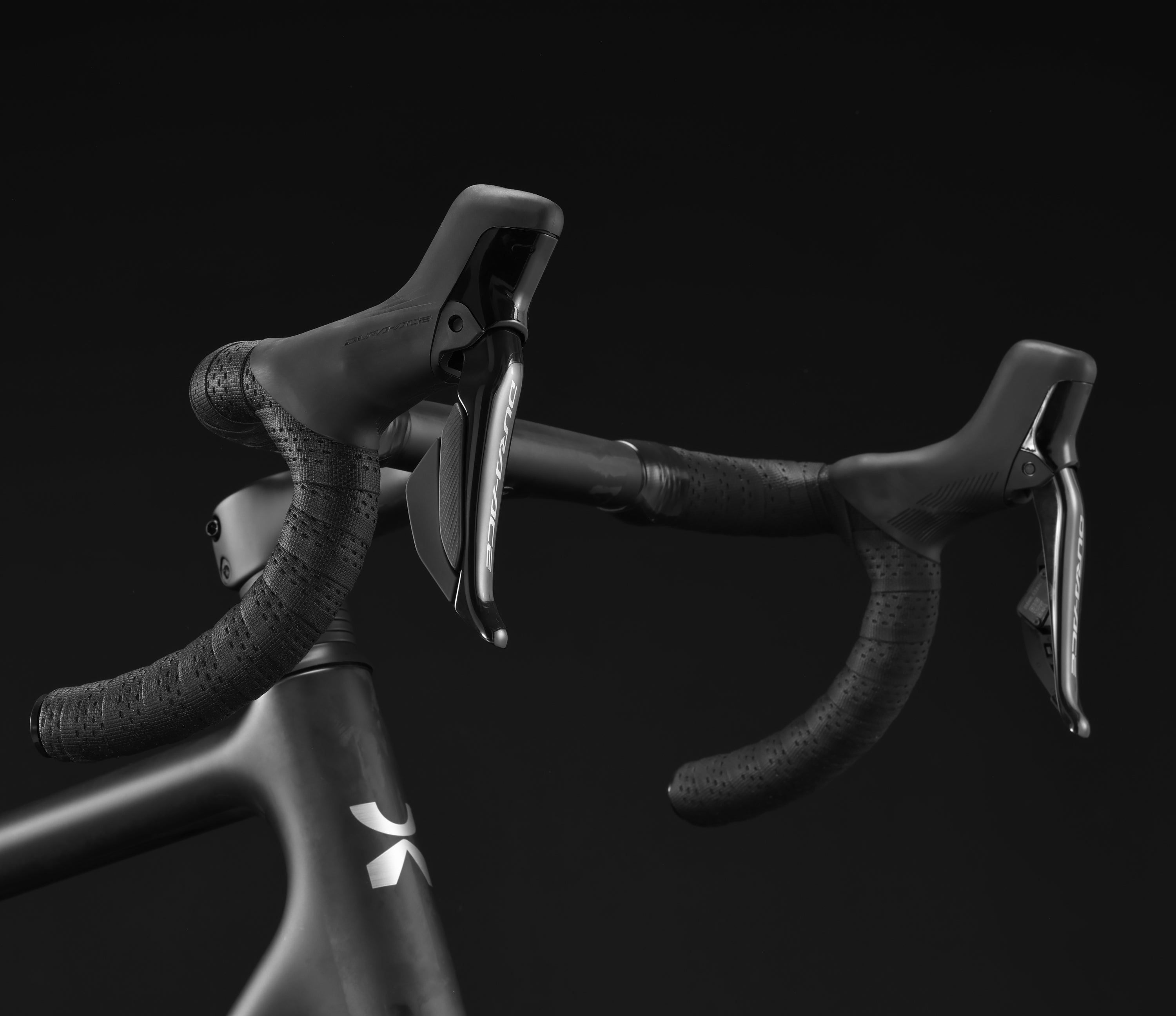

  Shimano Dura-Ace ST-R9270 Di2

  BRAKES

  Shimano Dura-Ace BR-R9270

  CASSETTE

  Shimano Dura-Ace CS-R9200, 11-34T

  CRANKSET

  Branta Carbon Power Meter Crankset, 52-36T,

  29mm Alloy Spindle, Apple Find My Anti-Theft Technology

  BOTTOM BRACKET

  BSA 29mm

  ROTORS

  Shimano SM-MT900, F:160mm R:140mm

  CHAIN

  Shimano CN-M9100

  WHEELSET

  Branta C50 ULR, Carbon Rims & Spokes, Ceramic Bearings

  TIRES

  Michelin Pro 5 700x28C

  Max Tire Clearance: 30C

  SADDLE

  Selle Italia SLR Boost, Carbon Rails

  WEIGHT

  6.20 kg / 13.64 lbs (Size L)

  SIZE OPTIONS

  XS / S / M / L

• product geometry anchor

  Geometry & Dimensions



  Basic geometry

  title	XS	S	M	L
  A — Seat Tube Length	430mm	460mm	480mm	500mm
  B — Top Tube Length	498mm	520mm	540mm	563mm
  C — Head Tube Length	110mm	120mm	137mm	157mm
  D — Seat Tube Angle	75°	74.2°	74°	73.5°
  E — Head Tube Angle	70.5°	71.7°	73°	73.5°
  F — Chainstay	410mm	410mm	410mm	410mm
  G — Wheelbase	972.5mm	977mm	978mm	992mm
  H — Bottom Bracket Drop	74mm	74mm	72mm	72mm
  I — Stack	510mm	525mm	543mm	567mm
  J — Reach	362mm	372mm	384mm	396mm
  K — Front Center	574mm	578mm	578mm	592mm
  O — Stand Over	704mm	728mm	750mm	769mm

  • XS

    A — Seat Tube Length	430mm
    B — Top Tube Length	498mm
    C — Head Tube Length	110mm
    D — Seat Tube Angle	75°
    E — Head Tube Angle	70.5°
    F — Chainstay	410mm
    G — Wheelbase	972.5mm
    H — Bottom Bracket Drop	74mm
    I — Stack	510mm
    J — Reach	362mm
    K — Front Center	574mm
    O — Stand Over	704mm

  • S

    A — Seat Tube Length	460mm
    B — Top Tube Length	520mm
    C — Head Tube Length	120mm
    D — Seat Tube Angle	74.2°
    E — Head Tube Angle	71.7°
    F — Chainstay	410mm
    G — Wheelbase	977mm
    H — Bottom Bracket Drop	74mm
    I — Stack	525mm
    J — Reach	372mm
    K — Front Center	578mm
    O — Stand Over	728mm

  • M

    A — Seat Tube Length	480mm
    B — Top Tube Length	540mm
    C — Head Tube Length	137mm
    D — Seat Tube Angle	74°
    E — Head Tube Angle	73°
    F — Chainstay	410mm
    G — Wheelbase	978mm
    H — Bottom Bracket Drop	72mm
    I — Stack	543mm
    J — Reach	384mm
    K — Front Center	578mm
    O — Stand Over	750mm

  • L

    A — Seat Tube Length	500mm
    B — Top Tube Length	563mm
    C — Head Tube Length	157mm
    D — Seat Tube Angle	73.5°
    E — Head Tube Angle	73.5°
    F — Chainstay	410mm
    G — Wheelbase	992mm
    H — Bottom Bracket Drop	72mm
    I — Stack	567mm
    J — Reach	396mm
    K — Front Center	592mm
    O — Stand Over	769mm

  Component geometry

  title	XS	S	M	L
  Fork Rake/Offset	50mm	50mm	44mm	44mm
  Trail	68mm	61mm	59mm	56mm
  Handlebar	360mm	360mm	380mm	400mm
  Stem	80mm	100mm	100mm	120mm
  Crankset	160mm	160mm	165mm	165mm
  Seat Post	300mm	300mm	350mm	350mm

  • XS

    Fork Rake/Offset	50mm
    Trail	68mm
    Handlebar	360mm
    Stem	80mm
    Crankset	160mm
    Seat Post	300mm

  • S

    Fork Rake/Offset	50mm
    Trail	61mm
    Handlebar	360mm
    Stem	100mm
    Crankset	160mm
    Seat Post	300mm

  • M

    Fork Rake/Offset	44mm
    Trail	59mm
    Handlebar	380mm
    Stem	100mm
    Crankset	165mm
    Seat Post	350mm

  • L

    Fork Rake/Offset	44mm
    Trail	56mm
    Handlebar	400mm
    Stem	120mm
    Crankset	165mm
    Seat Post	350mm

• FAQ

  General

  What rider type is the RT9 designed for?

  RT9 is for the rider who values weight savings above all else and spends long days climbing mile after mile. They are an experienced rider who values having the best equipment and has to have the pinnacle of carbon technology and innovation.

  Is the bike easy to assemble out of the box?

  Yes, RT9 is easy to assemble. You can refer to the written assembly guide or our assembly video to help guide you through the process. If you have any questions or doubts about assembling RT9 yourself, we recommend having it professionally assembled at your local bike shop.

  What’s the weight limit for the bike?

  RT9 has a weight limit of 220lbs (100kg), which includes the rider and any gear or cargo.

  Can the frameset be purchased separately?

  Yes, the RT9 frameset and other major components (including cockpit, crank, and wheels) are available for purchase.

  Where can my bike be serviced and repaired?

  Any local bike shop will be able to provide general service for your RT9. For any component customization or warranty issues we recommend going to an X-LAB dealer to receive the best expert guidance and support.

  Technical

  What is the maximum tire clearance?

  RT9 has clearance for up to 30c tires.

  Can the integrated power meter connect to third-party bike computers?

  Yes, the integrated power meter can connect to most major bike computers and fitness devices via ANT+. This allows live power data to be shared directly to your device. Live power data can also be shared via Bluetooth to the X-LAB Bikes app on your mobile device. At this time, live data can’t be shared to third party mobile apps via Bluetooth.

  Is the frame compatible with SRAM groupsets?

  Yes, the RT9 frame is compatible with most wired and wireless electronic groupsets from all major drivetrain brands.

  Does it use a UDH (Universal Derailleur Hanger)?

  Yes, RT9 uses a UDH.

  Is the aero cockpit compatible with standard bike computer mounts?

  Yes, the aero cockpit is compatible with standard 2-bolt under-handlebar bike computer and combo mounts. A basic bike computer mounting kit is also provided with the bike.

  What is the maximum chainring size supported?

  RT9 can fit up to 55-42T 2x front chainrings or a 68T 1x front chainring.

  Are other cockpit size options available?

  Yes, X-LAB has 3 different size options for the integrated aero cockpit on RT9.

  Are other crank length options available?

  Yes, X-LAB offers numerous crank length options for the Branta carbon power meter crankset.

  Are other chainring options available?

  Yes, X-LAB offers both compact (50-34T) and race (54-40T) front chainring options, in addition to the standard (52-36T) front chainrings that come stock on the bike. The X-LAB chainrings have a standard 110 BCD bolt pattern but feature a unique shape to integrate with the integrated power meter.

  Does the power meter measure left, right, or both sides?

  The Branta power meter crank is dual-sided, meaning it measures power from both left and right legs separately.

  Is the wheelset tubeless ready?

  Yes - the rims and tires on RT9 are tubeless ready and tubeless rim tape is already installed. Tubeless valves and sealant must be purchased separately.

• Manual Downloads

  • XDS Acoustic Bike User Manual

• Unboxing & Assembling



  2:41 min

  RT9 Unboxing and Assembly

  play
