ST5+

  • ELECTRIC
  • MID-DRIVE MOTOR
  • URBAN

Versatile electric bike for everyday riding, commuting, and convenience.

$1,999 Free Ground Shipping

  • "This is the one for replacing car trips..." - BikeRumor
  • Mid-Drive utility machine that's commuter ready
  • 619Wh battery + up to 75+ mile range
  • Torque for real hills and real loads

or as low as $150/mo with

HSA/FSA eligible for qualified customers

Payment methods:

Select size See bicycle geometry

  • background email M
  • background email L

Size Guide

For the best experience, the electric models are currently only available through our authorized dealers for professional assembly, setup, and ongoing service. Find A Dealer

Delivery within 14 days

layer-mask

Size Chart

ST5+

Frame Size Rider Height
M 157 cm – 173 cm 5' 2" - 5' 8"
L 173 cm – 188 cm 5' 8" - 6' 2"
mask-layer

Notify Me

You have great taste – this bike sold out fast! If you want first dibs, drop your email and we’ll let you know as soon as it’s back in stock.

* When you ask to be notified, you are also subscribing to our newsletter for the latest product releases.

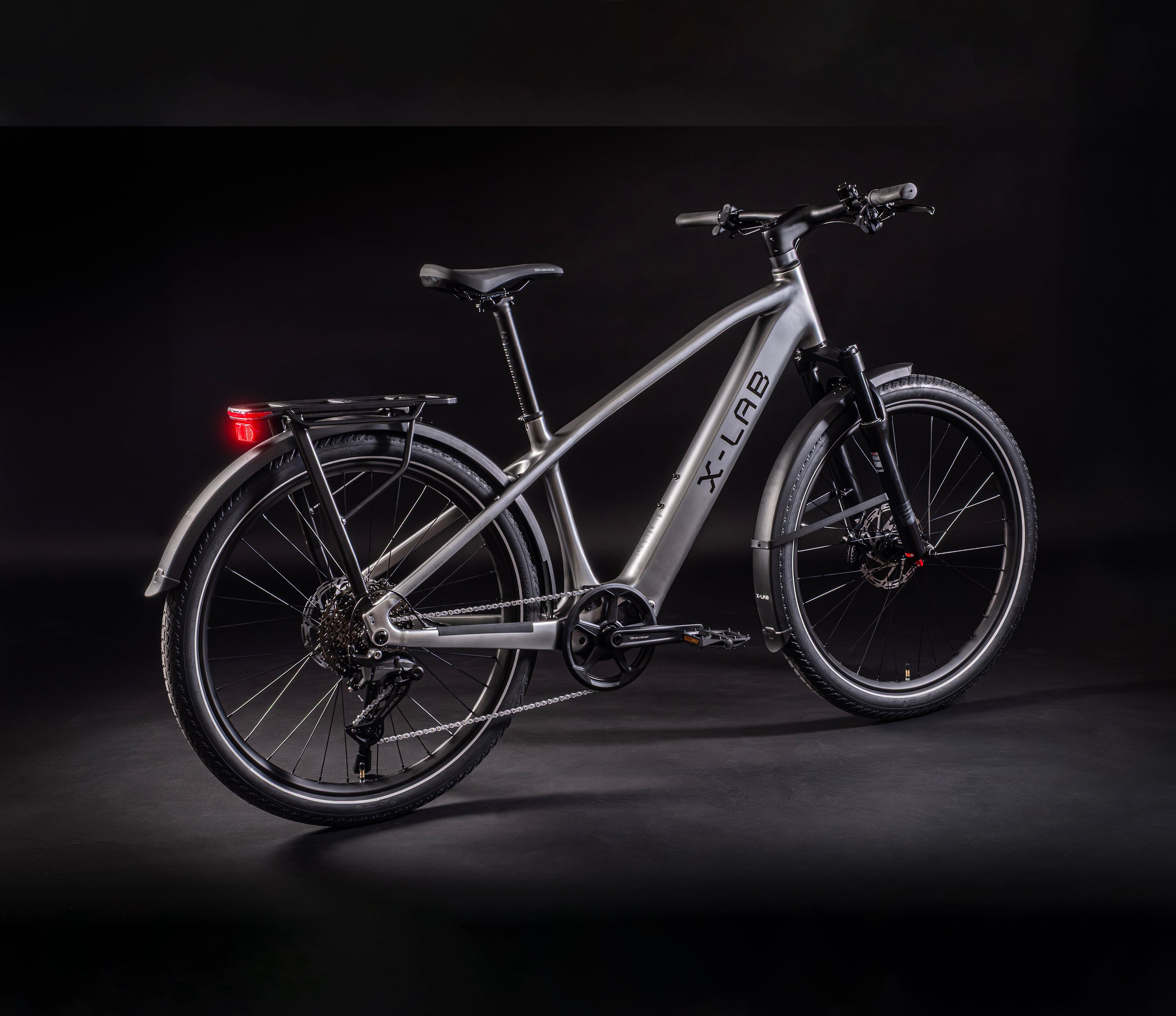

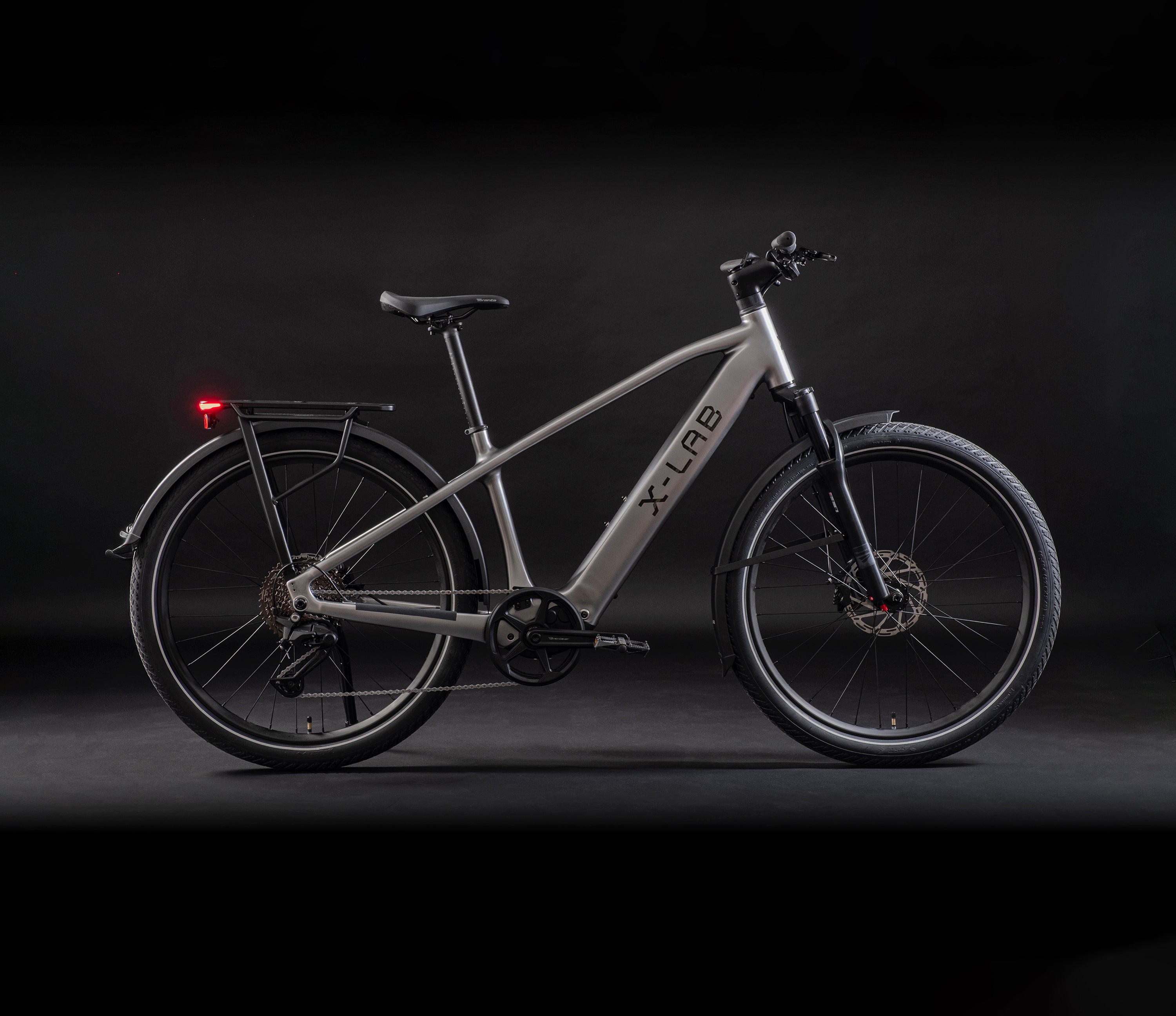

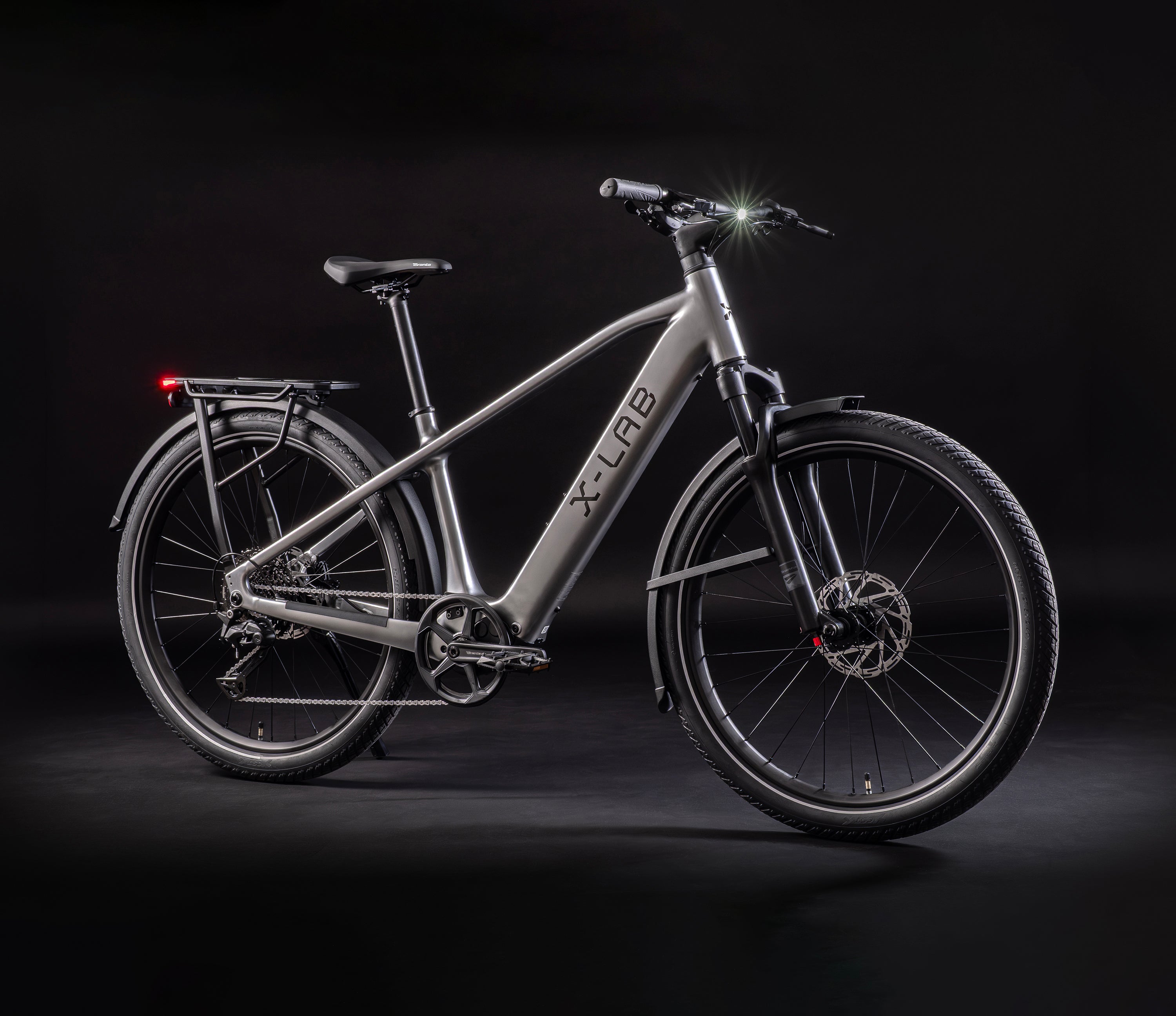

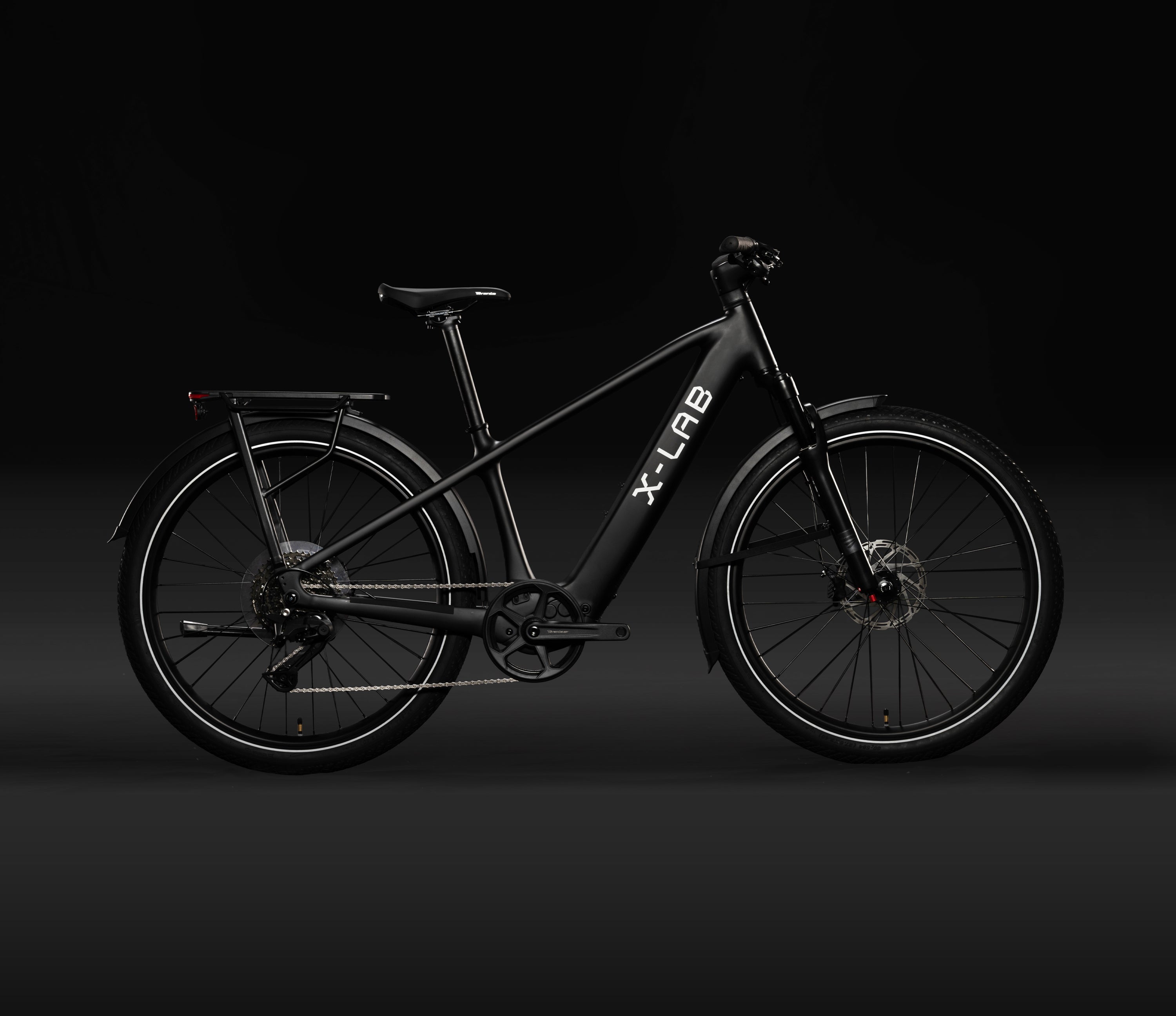

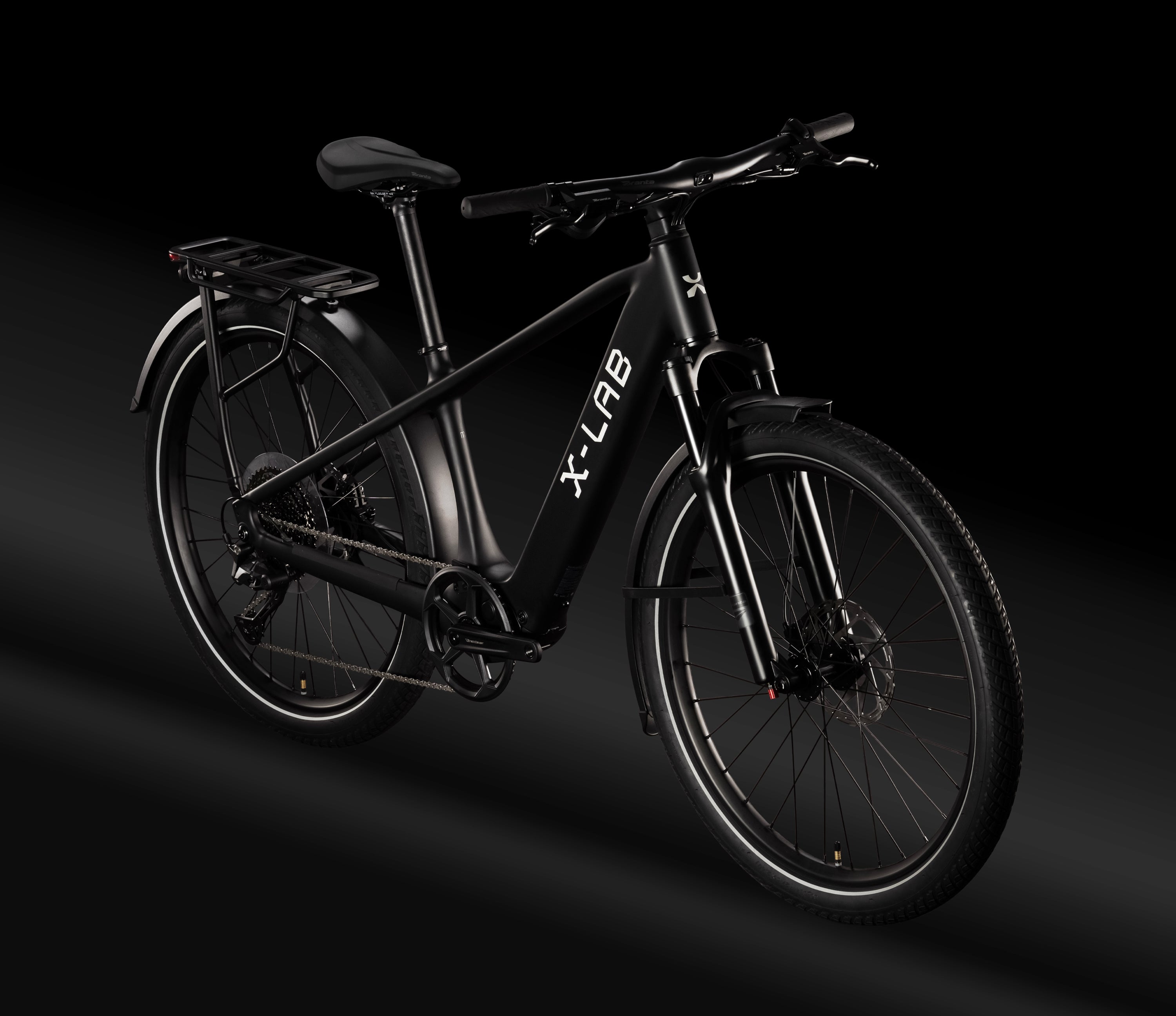

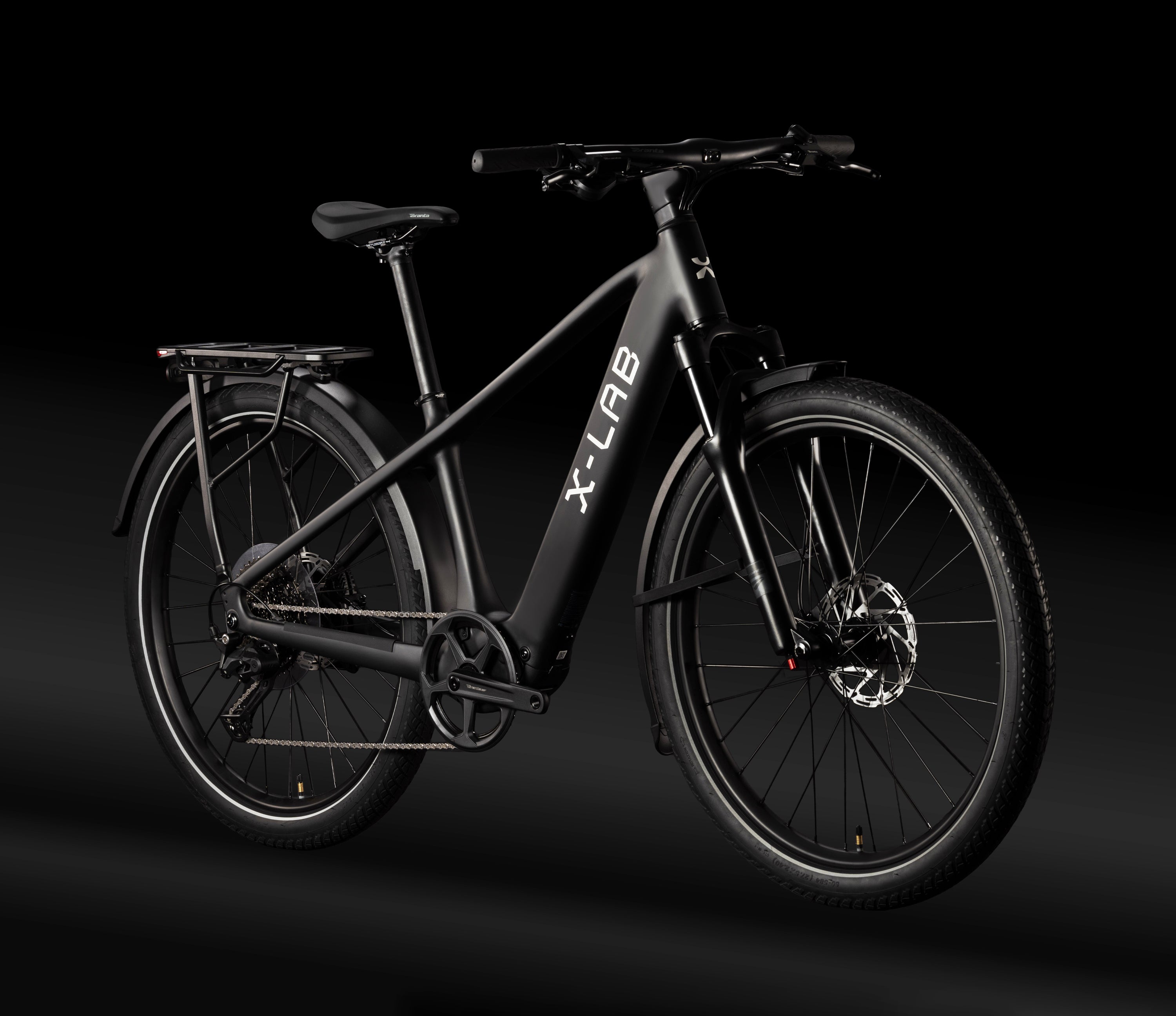

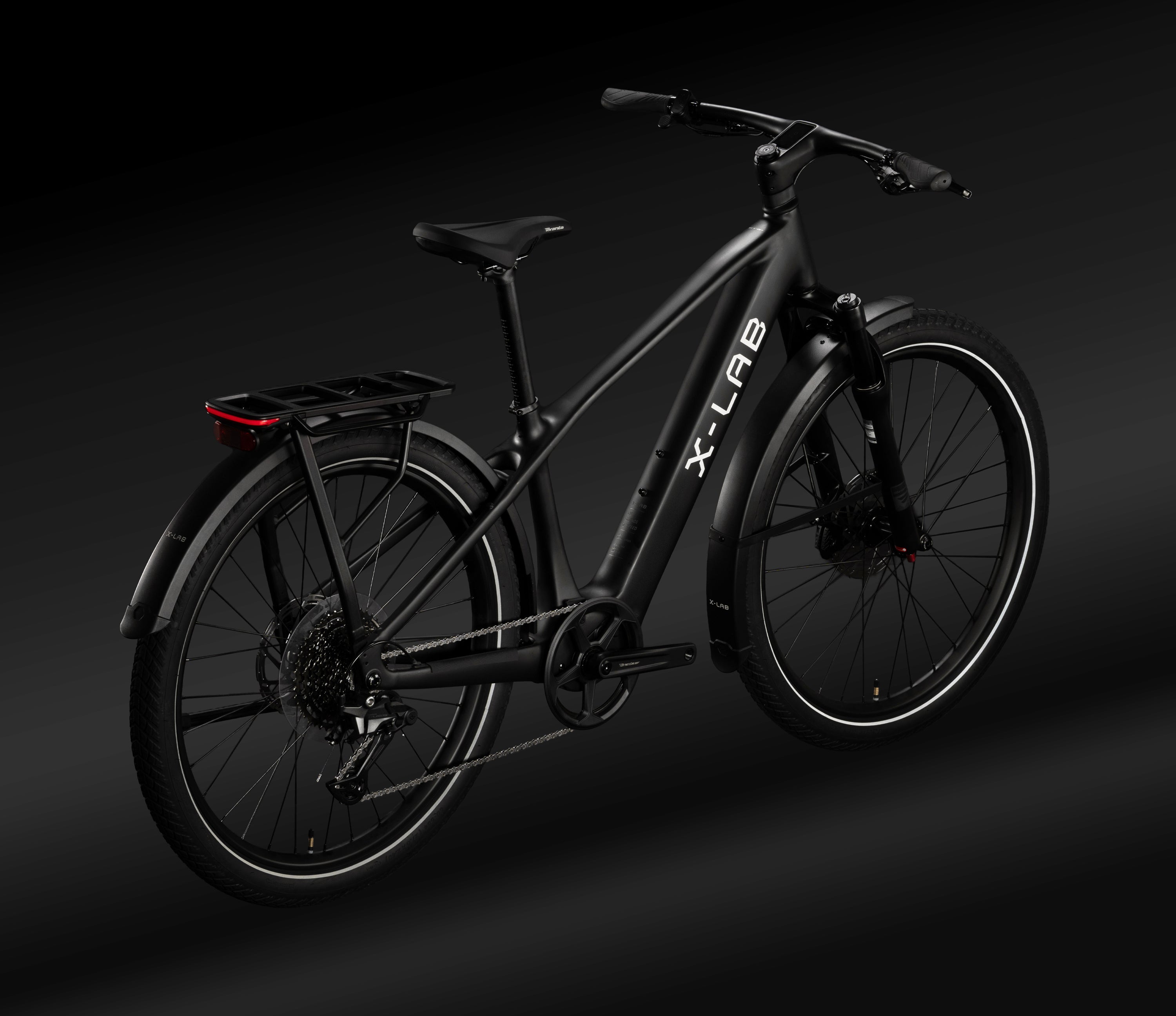

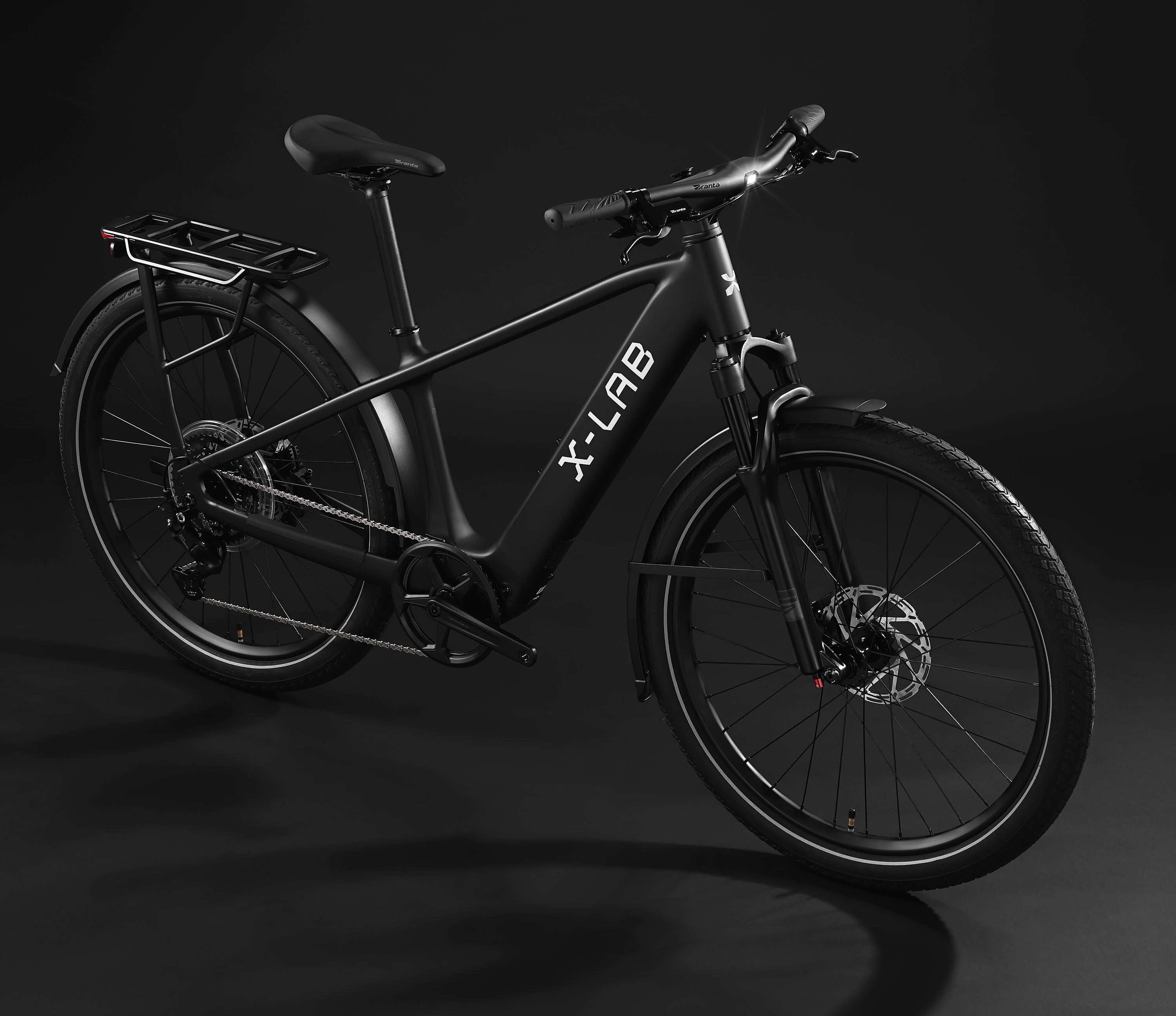

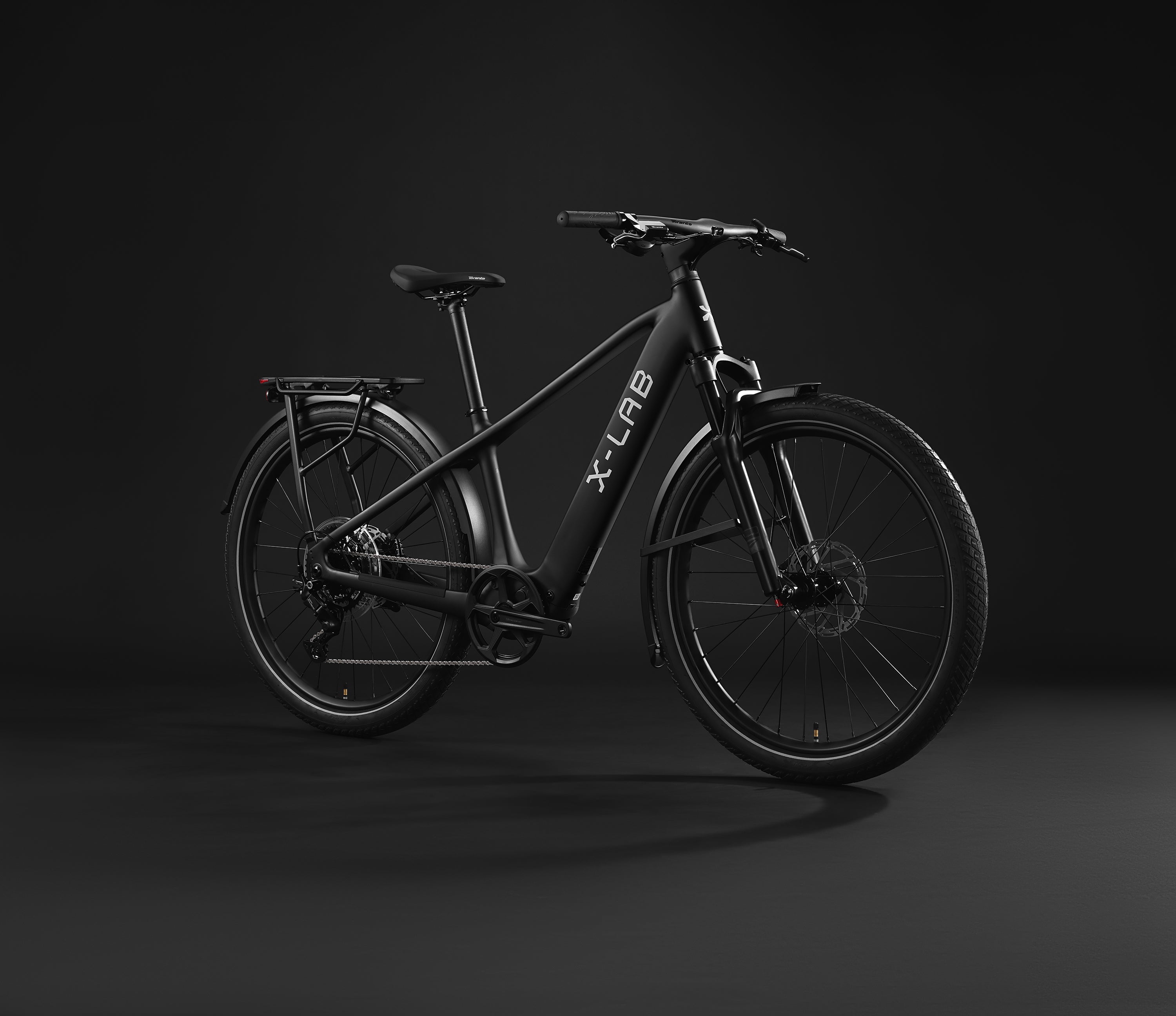

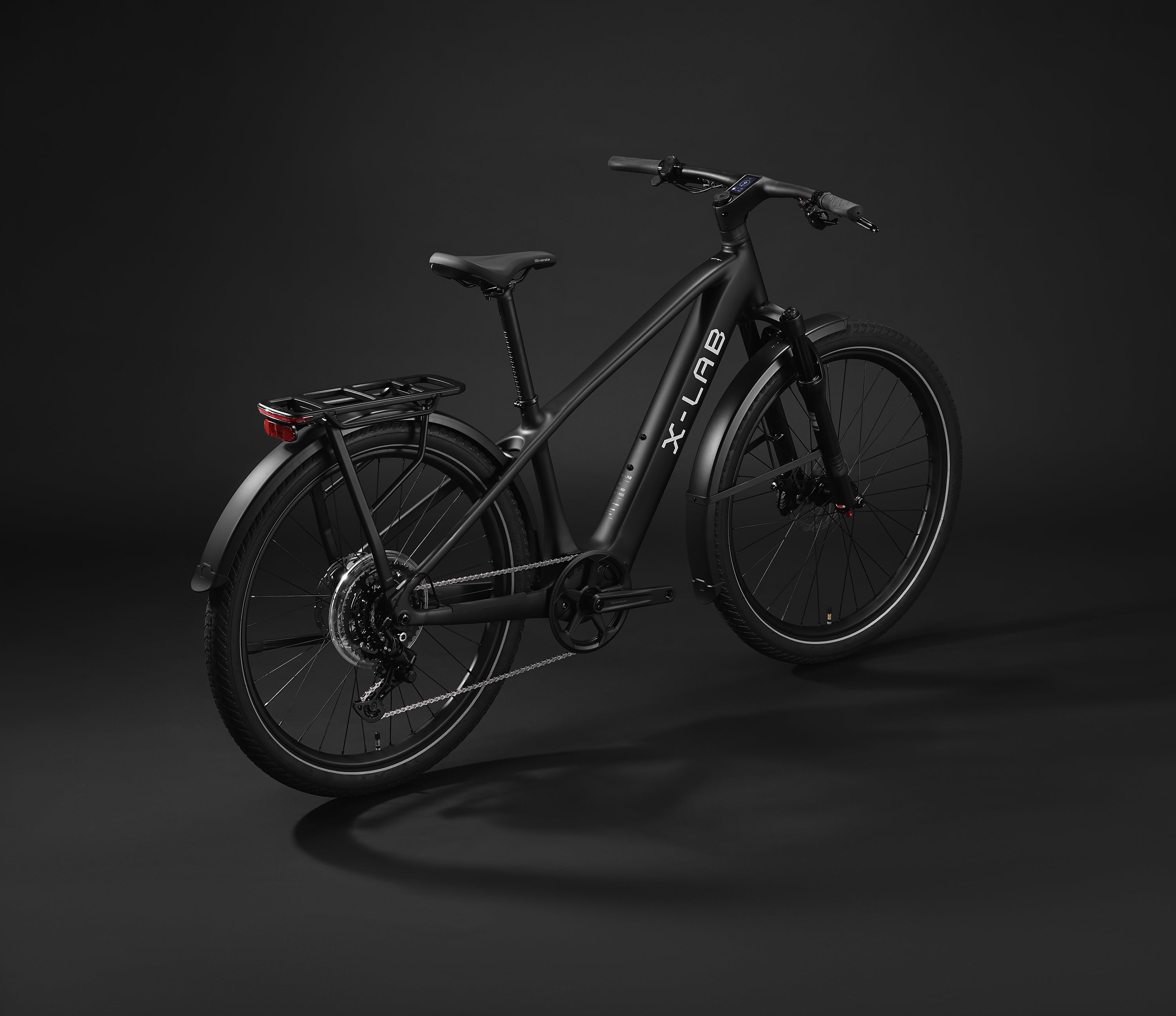

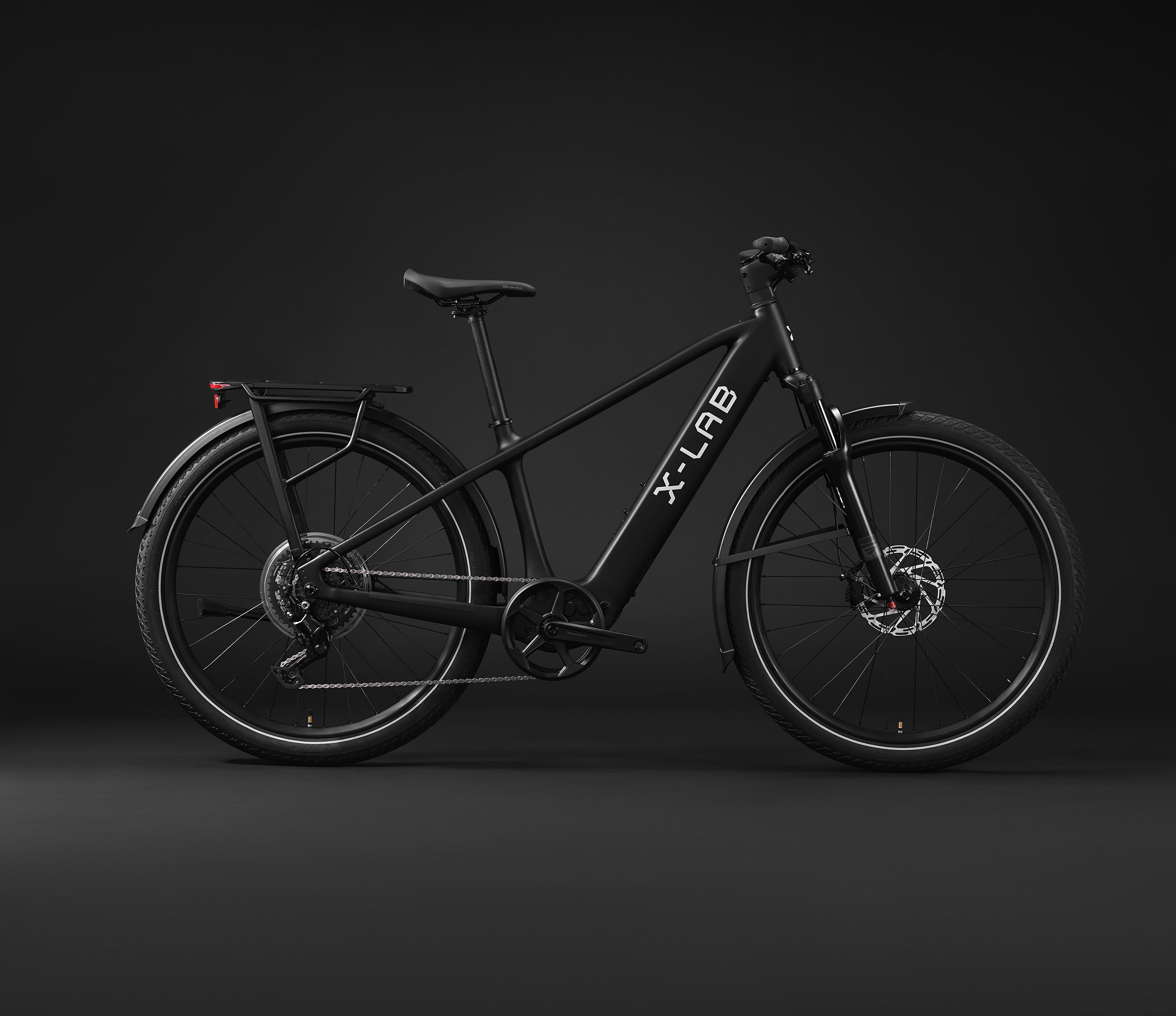

X-LAB ST5+

The ST5+ brings X-LAB engineering to modern urban mobility.

Powered by an integrated electric system and built on a refined aluminum platform, the ST5+ delivers smooth acceleration, confident handling, and the comfort needed for everyday riding.

Designed for riders who want more from their city bike, the ST5+ makes commuting faster, cleaner, and far more enjoyable.

From daily travel to spontaneous detours, the ST5+ transforms the way you move through the city.

The Mission Command Center

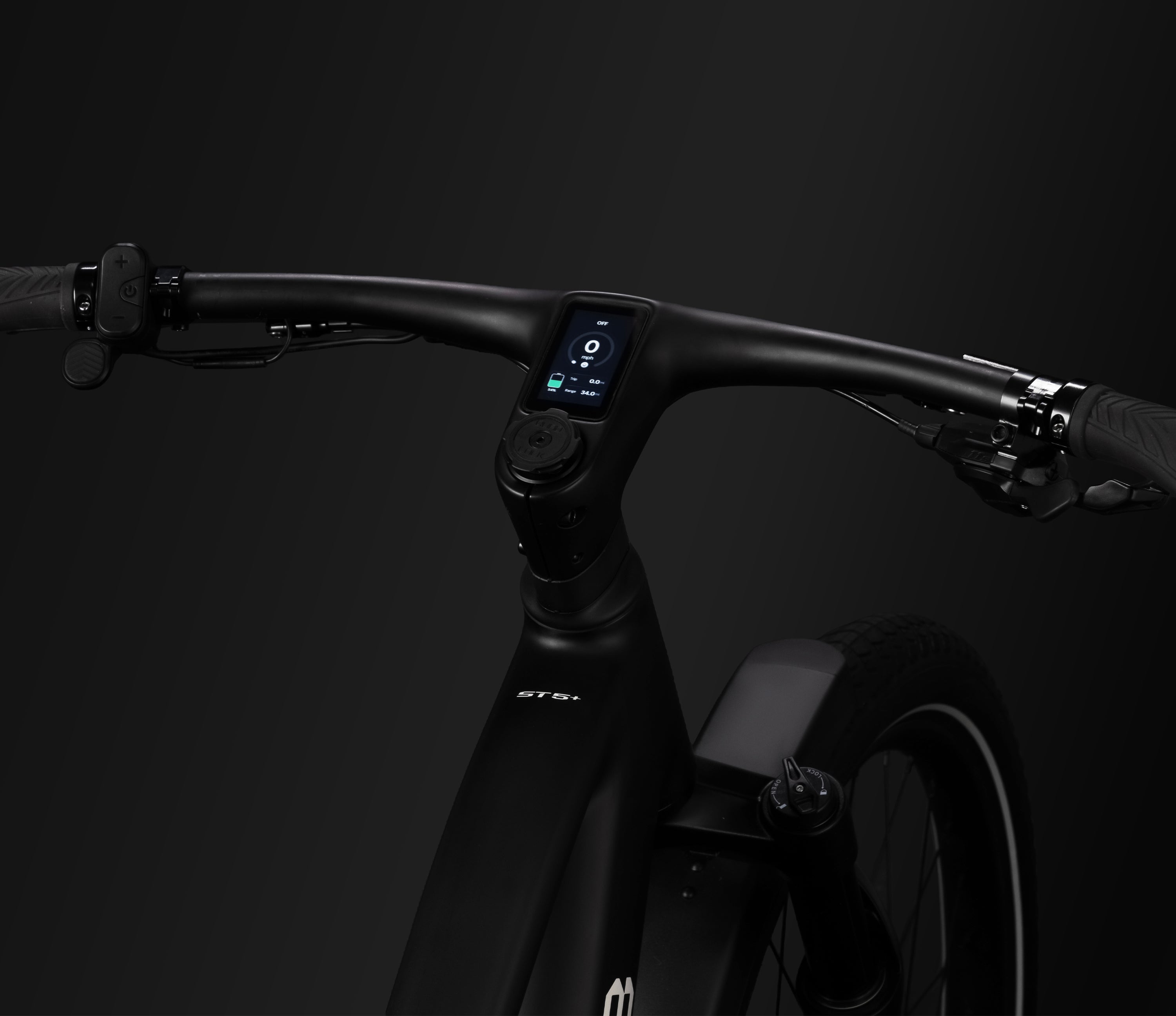

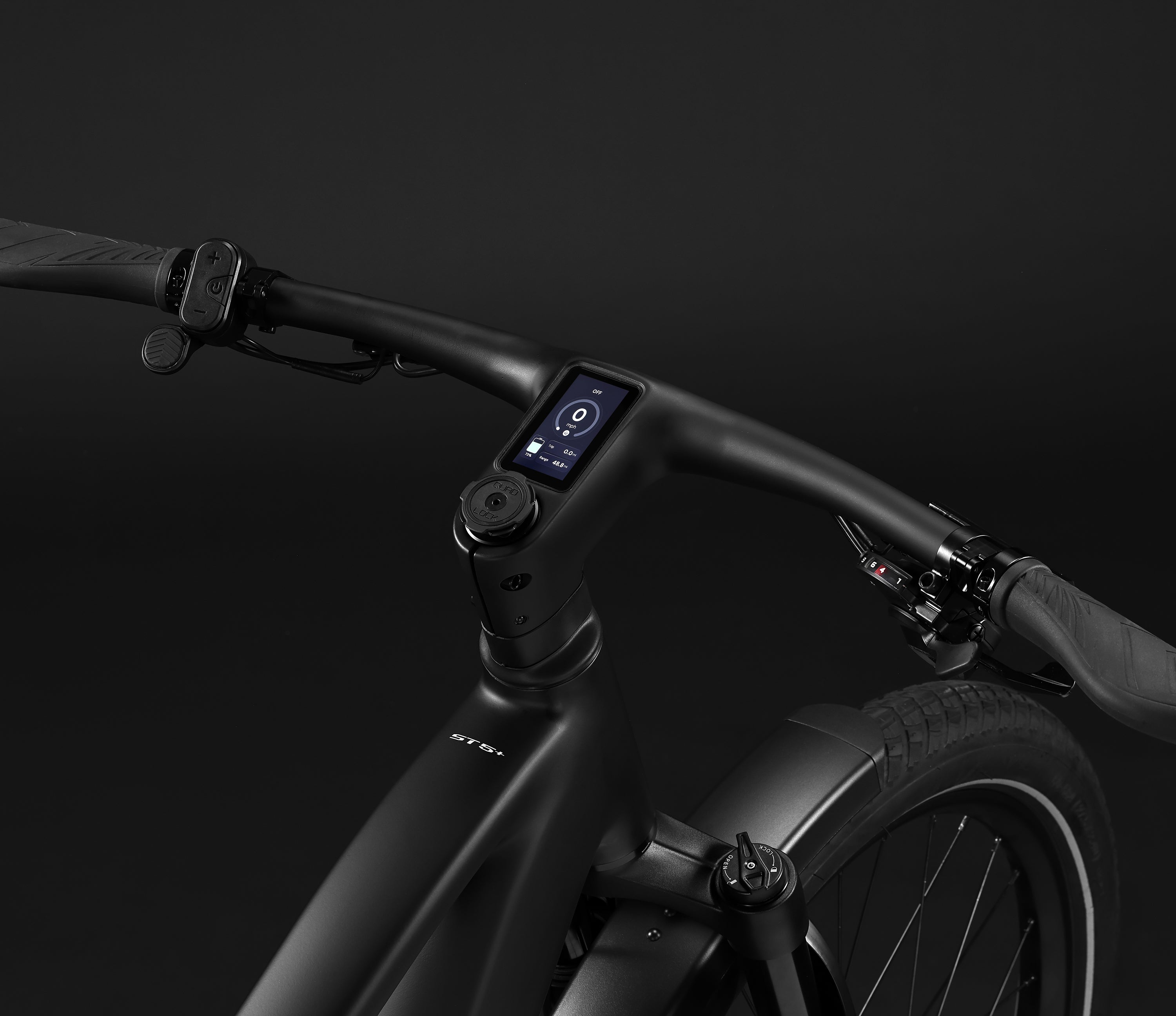

A fully integrated cockpit with an accessible color dashboard puts speed, range, assist mode, and ride data right where you need it – simple to read, effortless to use, and built for everyday reliability and adjustments.

Built Tough, Ride Smooth

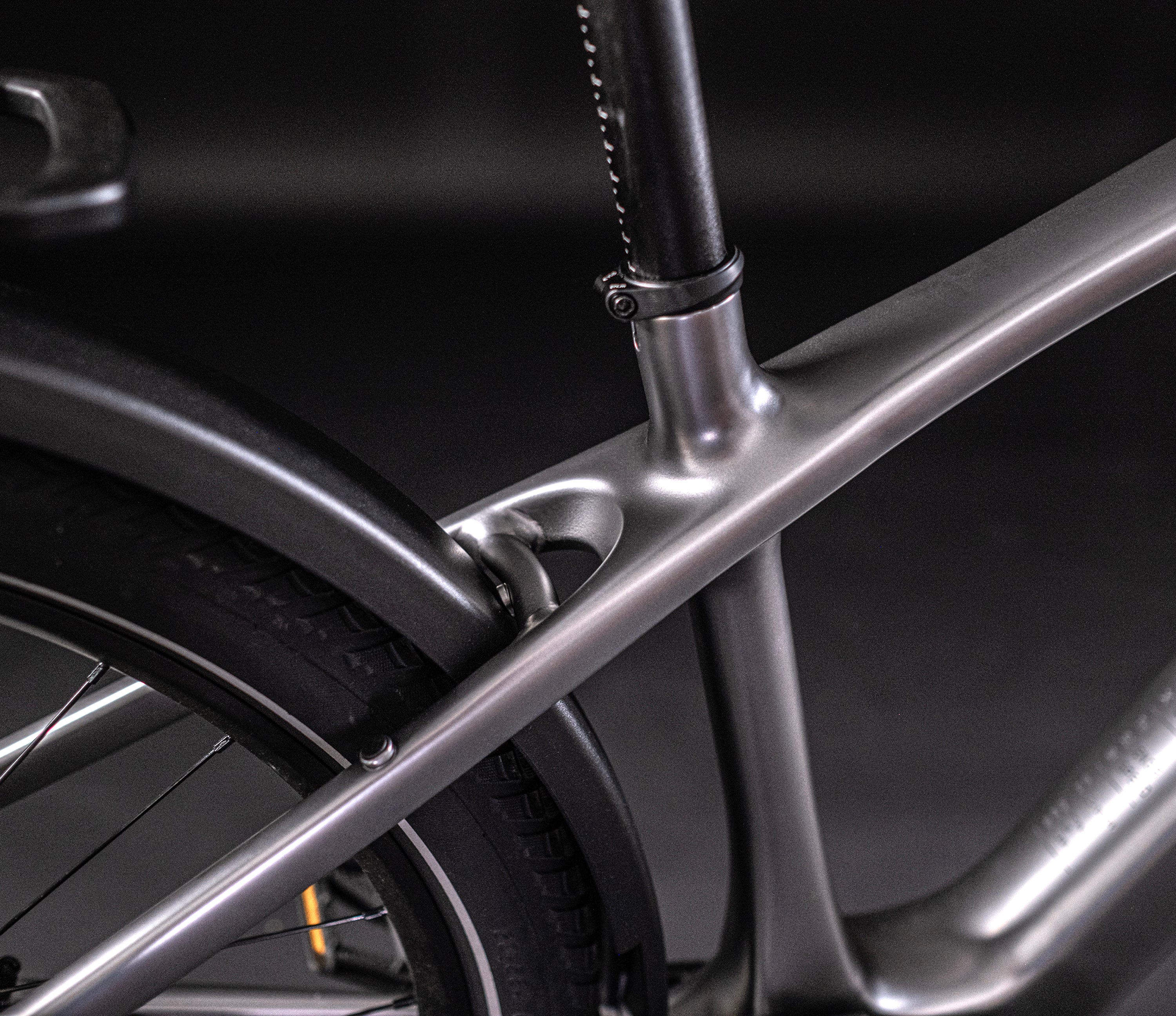

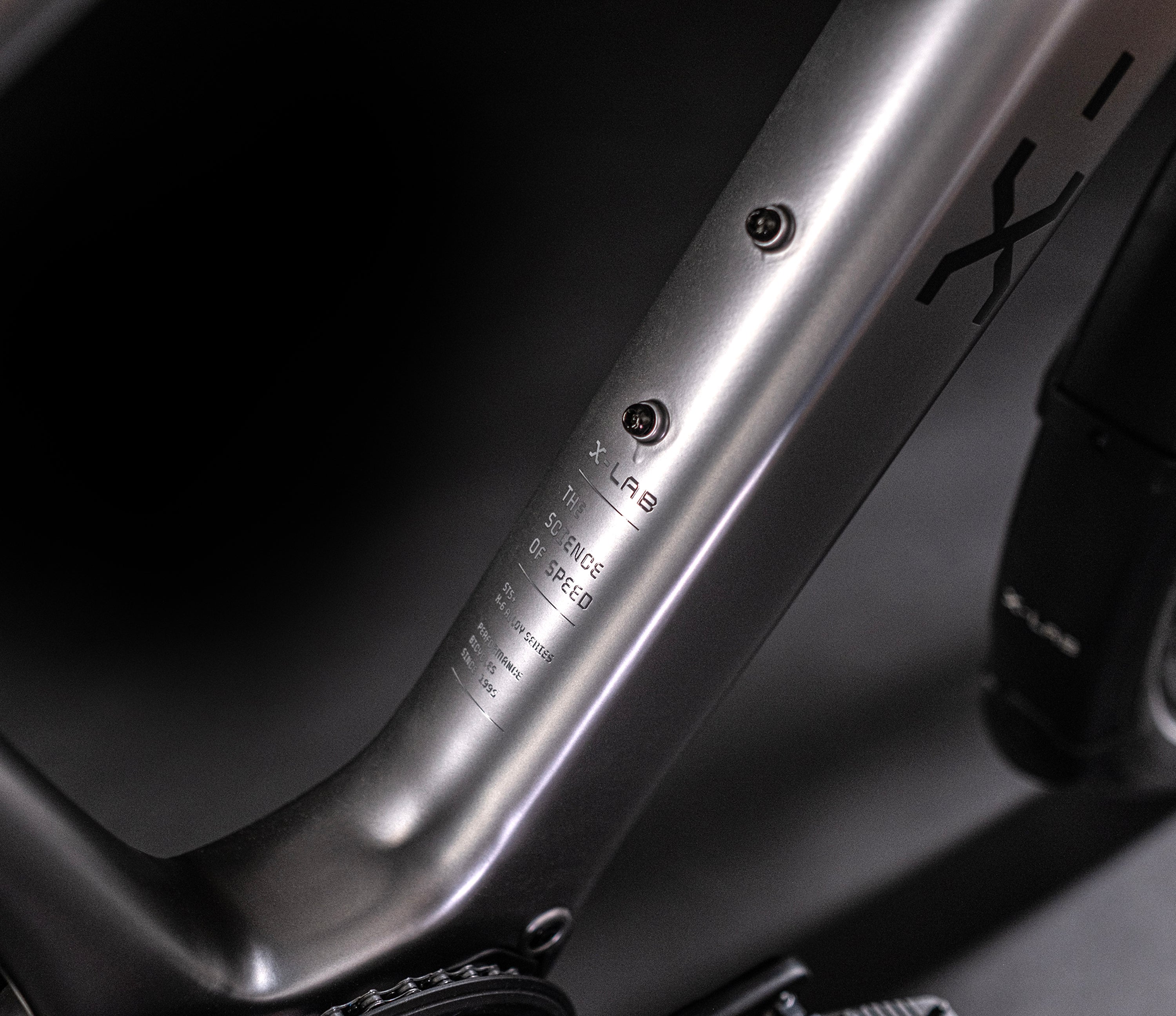

A durable alloy frame and a complete build around 54 lbs delivers stability and confidence that prepares the rider for commutes, errands, and long rides with real utility in mind.

Mid-Drive Power Engineered In-House

A mid-drive system tuned as a complete platform with torque where it counts, smarter control, and an integrated Branta ecosystem designed for a better ride feel and easier long-term performance.

All-Inclusive Security + Updates

ST5+ doesn’t stop at hardware: with Find My and the X-LAB Bikes app, you get security, ride customization, diagnostics, and over-the-air updates, so your bike stays current, protected, and ready for every day.

Highlights ST5+

  • Key Features

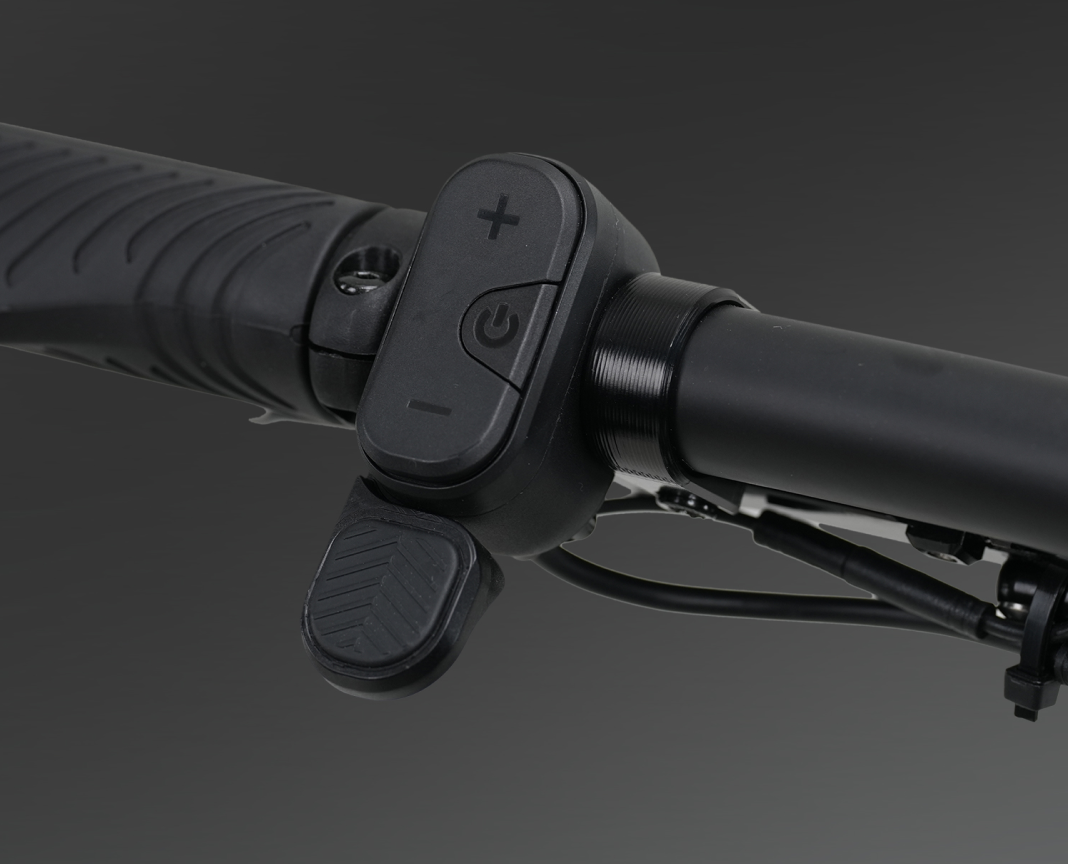

    Class 2 throttle + Apple Find My anti-theft technology

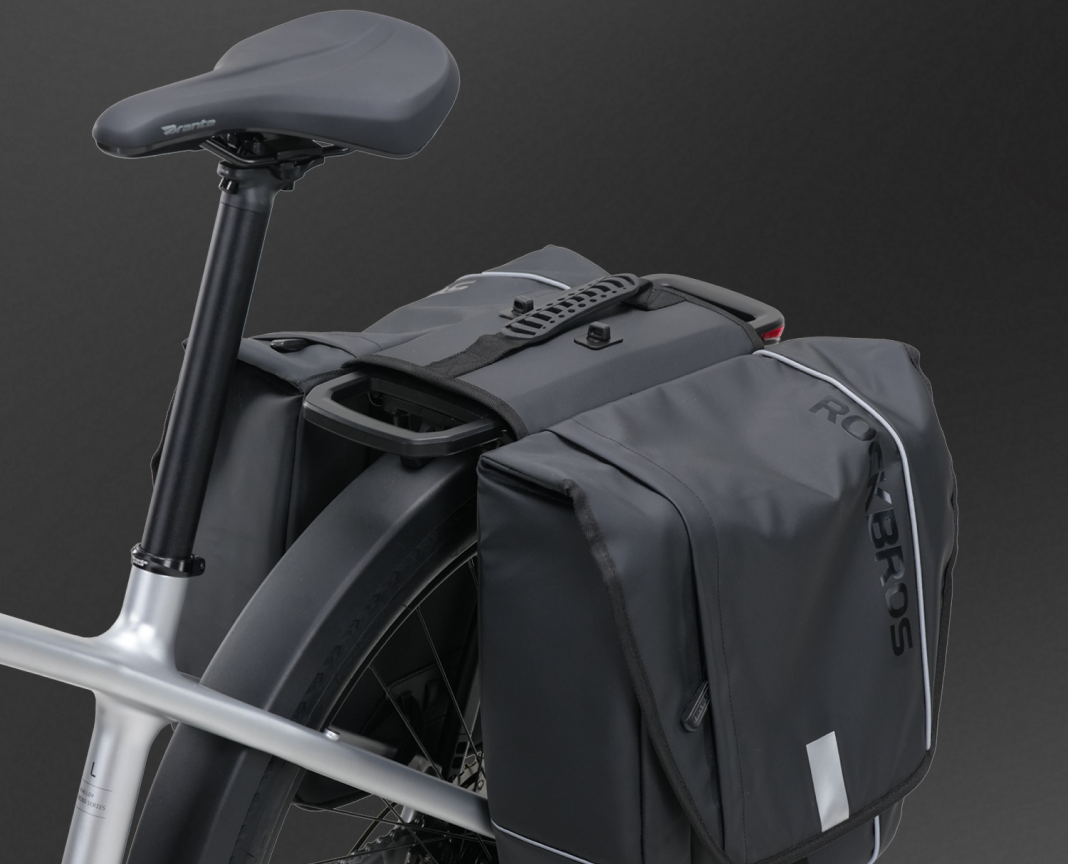

    MIK rear rack + alloy fenders

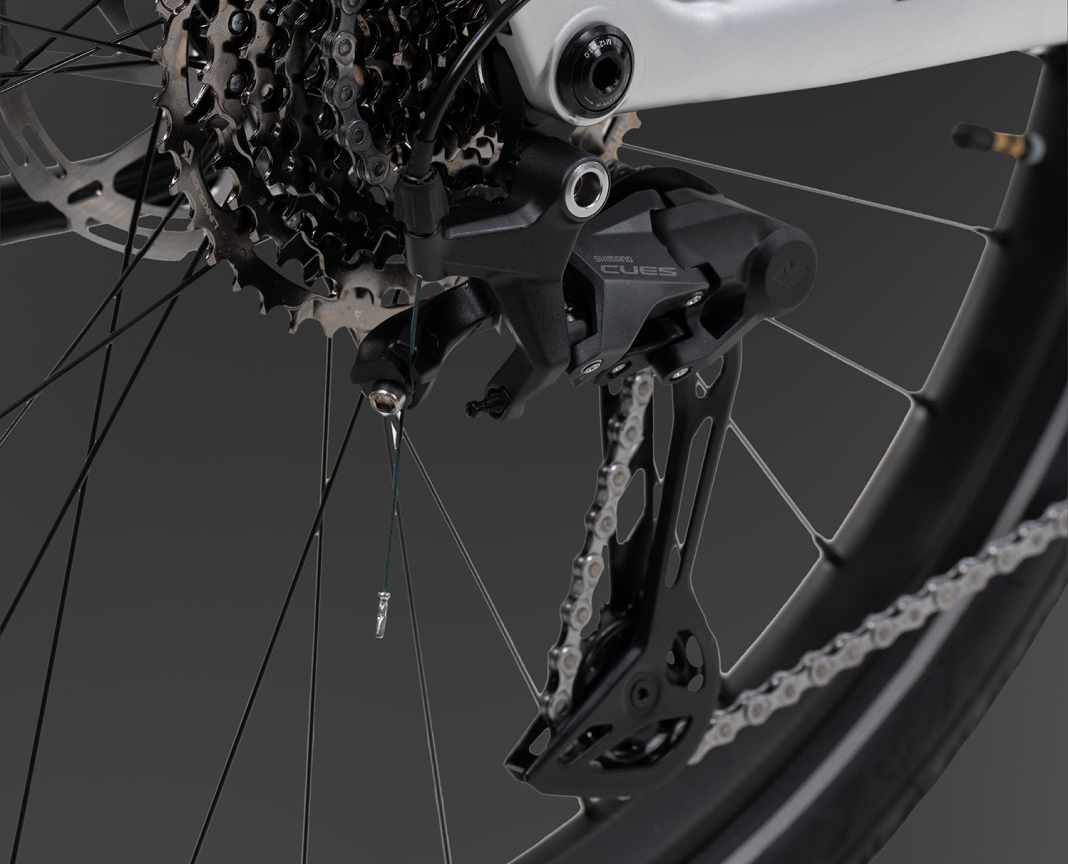

    Shimano CUES 9-speed drivetrain

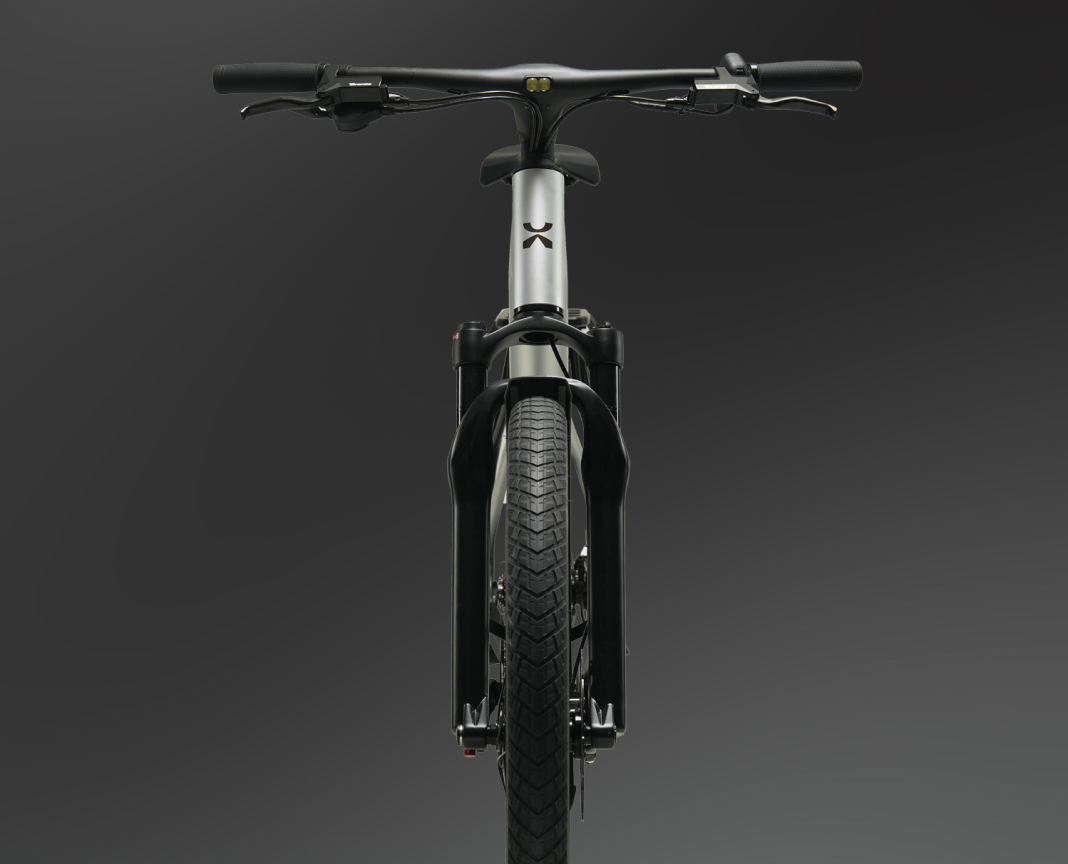

    Comfort setup: 2.4” tires + 80 mm suspension fork

    prev
    next

    Class 2 throttle + Apple Find My anti-theft technology

    MIK rear rack + alloy fenders

    Shimano CUES 9-speed drivetrain

    Comfort setup: 2.4” tires + 80 mm suspension fork

  • Technical Specifications

    FRAME

    XDS X6 Alloy Frame, UDH Compatible

    FORK

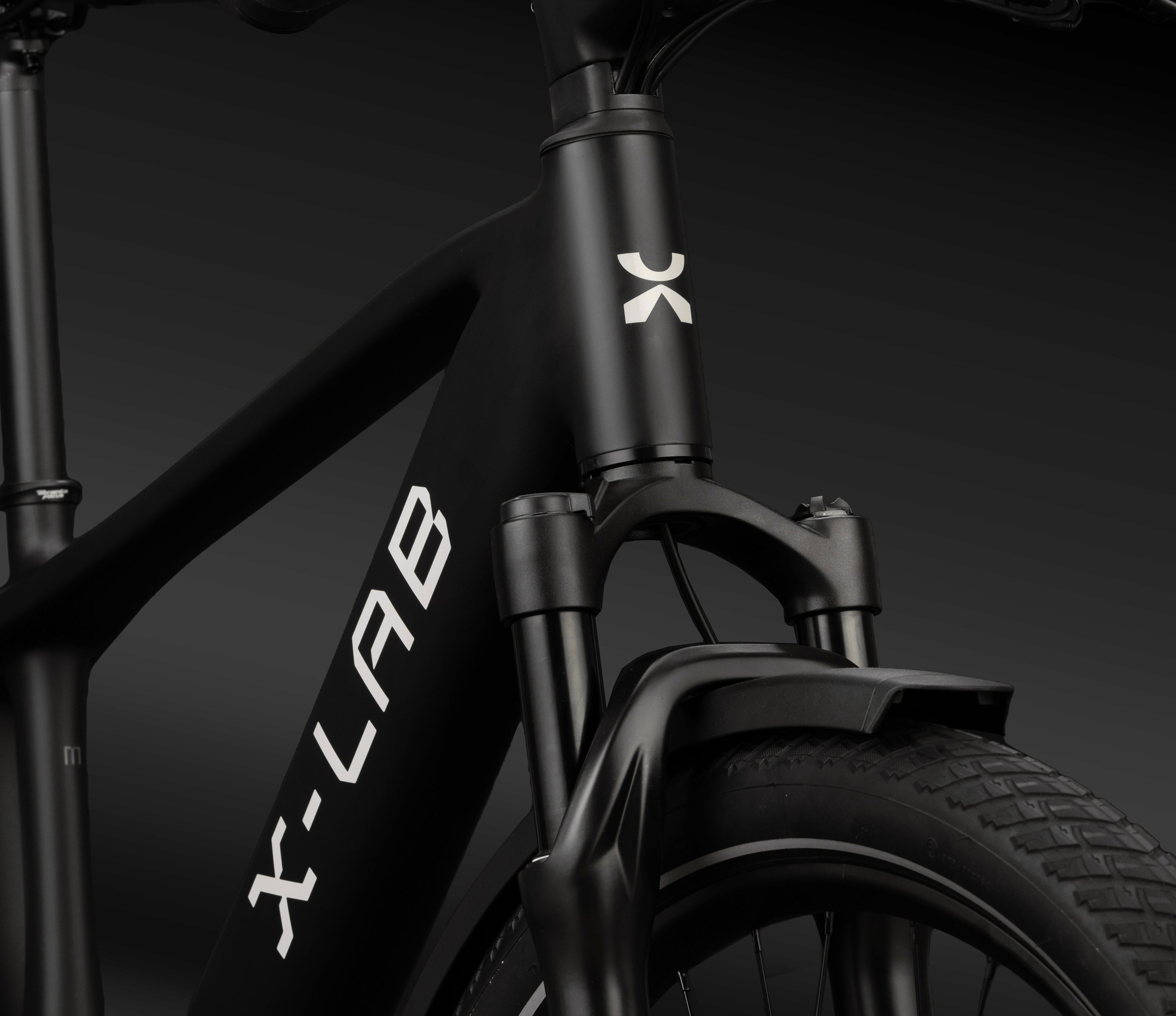

    XDS Suspension Fork, Coil Spring, 80mm Travel,

    110x15mm Thru-axle

    HANDLEBAR / STEM

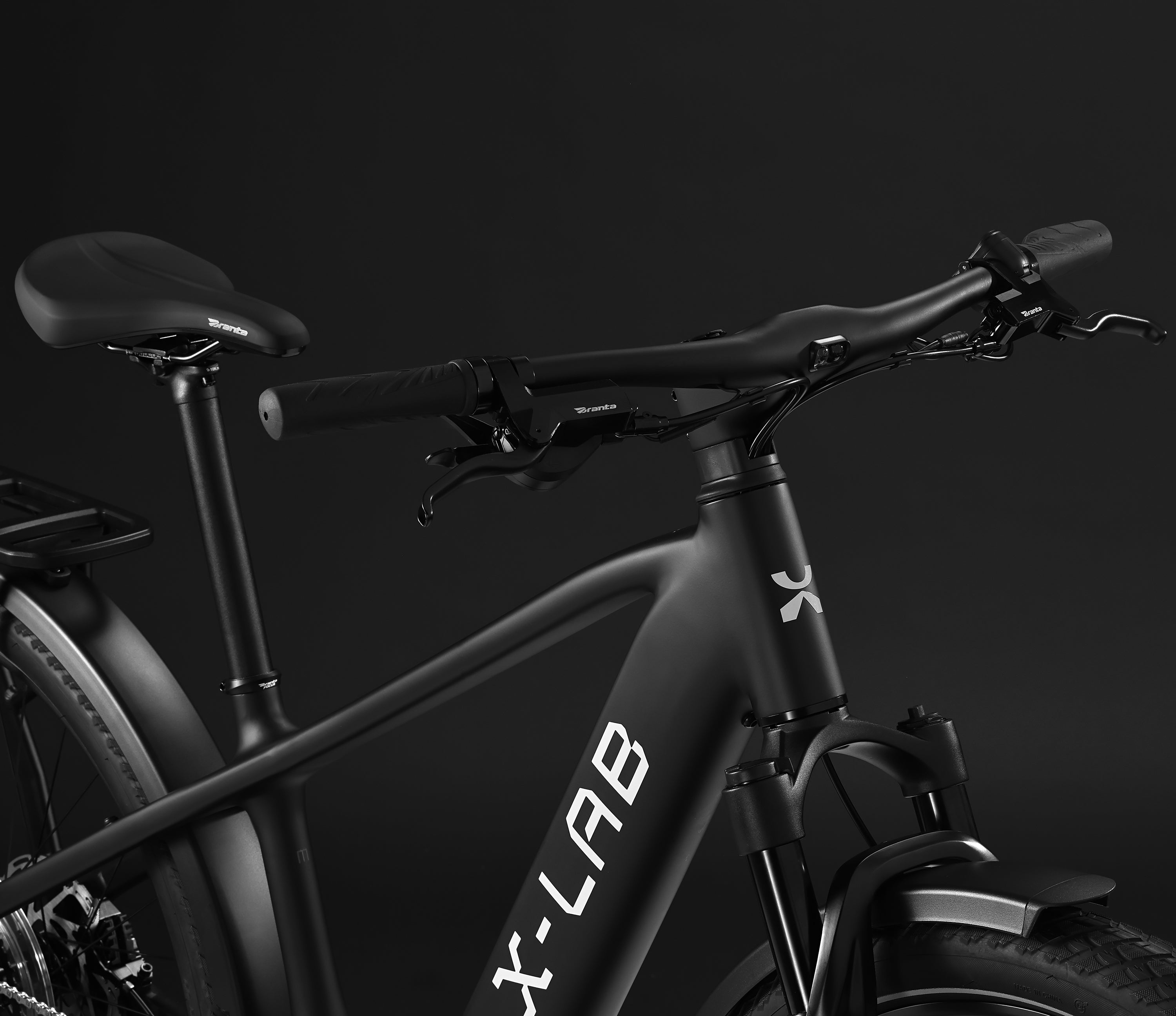

    Branta Alloy Integrated, w/ Display & Front light, 680mm

    Width, 90mm Length, 6 Degree Rise, 15 Degree Backsweep

    SEATPOST

    XDS 31.6mm Alloy Seatpost , 350mm Length

    REAR DERAILLEUR

    Shimano Cues RD-U4000, 9-Speed

    SHIFTER

    Shimano Cues 9-Speed

    BRAKES

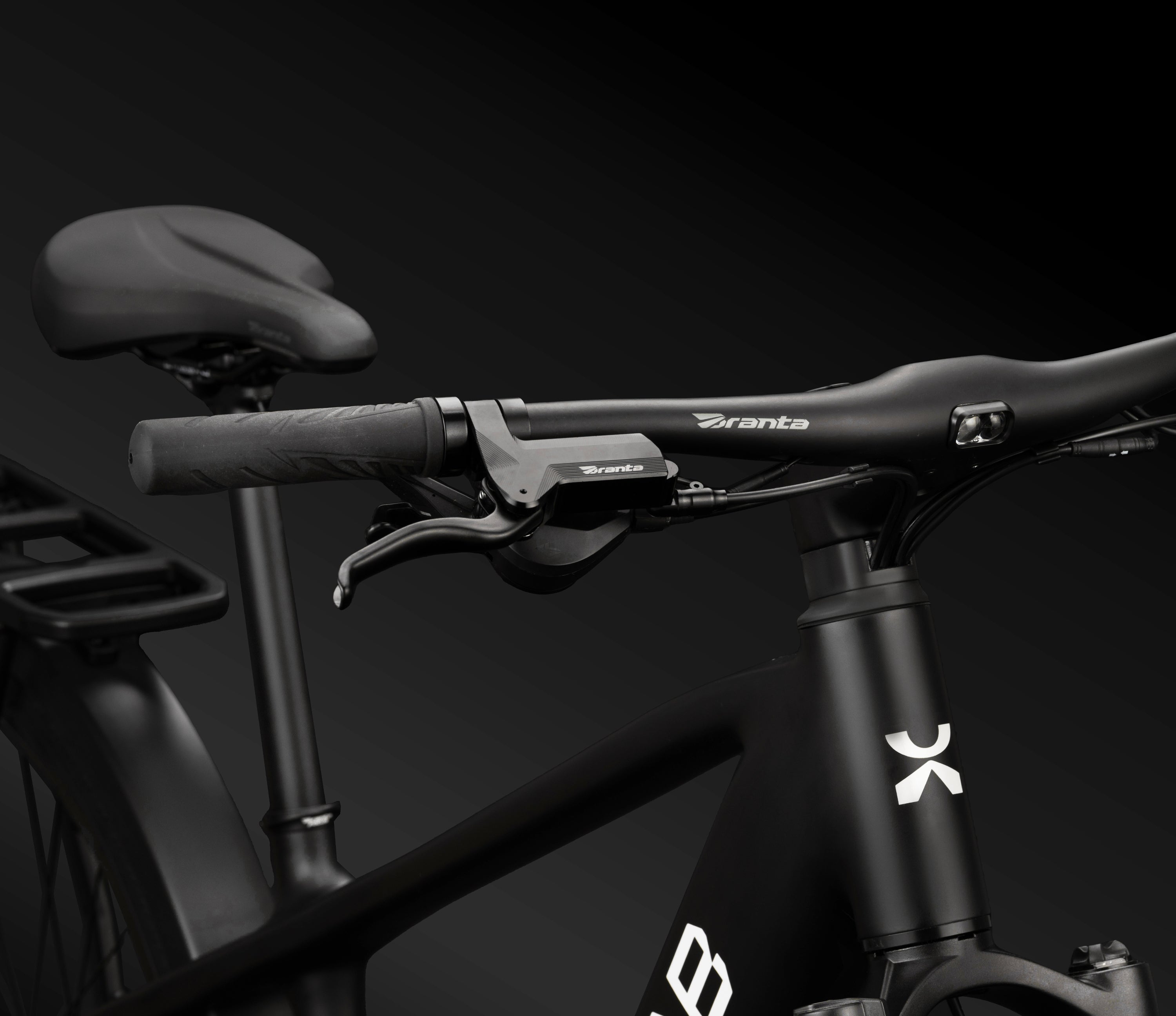

    Branta EC4D Hydraulic E-Bike Brake, w/ Cutoff Switch, 3 Finger Lever,

    4 Piston Caliper

    CASSETTE

    Shimano CS-LG300 11-46T, 9-Speed

    CRANKSET

    Branta Alloy Crankset, 46T, Narrow-wide Teeth

    MOTOR

    XDS Mid-drive X800 Motor, 250 Watt Continuous

    Rated Power, 470 Watt Peak Power, 95Nm Peak Torque, Dual-sided Torque Sensor

    BATTERY

    XDS Rechargeable Li-ion Battery, 619Wh, LG Battery Cells, 3A Charger (0-100% 5hr)

    LIGHTS

    Integrated F+R Lights (+ Brake Lights)

    SPEED

    Pedal-assist and Throttle, Class 2 20mph (Unlock to Class 3 via the X-Lab Bikes Mobile App)

    RANGE

    Ride up to 75 miles on a Single Charge

    TESTING AND COMPLIANCE

    UL2271 and UL2849 Certified, Ingress Ratings: Complete Bike IP54, Battery IPX7, Motor and Other Electronics IPX6

    LOAD CAPACITY

    Max Load 330 lbs (150 kg)

    CONNECTIVITY

    Apple Find My Anti-Theft Technology, Bluetooth, OTA Updates

    ROTORS

    Branta PN28, F:180mm R:180mm

    CHAIN

    KMC E-GLIDE-S

    WHEELSET

    Branta Alloy E-Bike Wheelset

    TIRES

    CST CTC-06, 27.5’’x2.4, 30TPI, w/ Reflective Stripe

    Max Tire Clearance: 2.4"

    SADDLE

    Branta C301

    PHONE HOLDER

    Quad Lock Mount

    REAR RACK

    MIK-HD Rack

    WEIGHT

    24.76 kg / 54.58 lbs (Size L)

    SIZE OPTIONS

    M / L

  • product geometry anchor

    Geometry & Dimensions

    Basic geometry
    title M L
    A — Seat Tube Length 420mm 440mm
    B — Top Tube Length 581mm 638mm
    C — Head Tube Length 134mm 159mm
    D — Seat Tube Angle 75° 74°
    E — Head Tube Angle 69° 69°
    F — Chainstay 475mm 475mm
    G — Wheelbase 1152mm 1201mm
    H — Bottom Bracket Drop 70mm 70mm
    I — Stack 635mm 659mm
    J — Reach 410mm 451mm
    K — Front Center 686mm 735mm
    O — Stand Over 734mm 744mm
    • A — Seat Tube Length 420mm
      B — Top Tube Length 581mm
      C — Head Tube Length 134mm
      D — Seat Tube Angle 75°
      E — Head Tube Angle 69°
      F — Chainstay 475mm
      G — Wheelbase 1152mm
      H — Bottom Bracket Drop 70mm
      I — Stack 635mm
      J — Reach 410mm
      K — Front Center 686mm
      O — Stand Over 734mm
    • A — Seat Tube Length 440mm
      B — Top Tube Length 638mm
      C — Head Tube Length 159mm
      D — Seat Tube Angle 74°
      E — Head Tube Angle 69°
      F — Chainstay 475mm
      G — Wheelbase 1201mm
      H — Bottom Bracket Drop 70mm
      I — Stack 659mm
      J — Reach 451mm
      K — Front Center 735mm
      O — Stand Over 744mm
    Component geometry
    title M L
    Fork Rake/Offset 51mm 51mm
    Trail 85mm 85mm
    Stem 90mm 90mm
    • Fork Rake/Offset 51mm
      Trail 85mm
      Stem 90mm
    • Fork Rake/Offset 51mm
      Trail 85mm
      Stem 90mm

  • FAQ

    General

    What rider type is the ST5+ designed for?

    ST5+ is perfect for long commutes, shopping adventures, or just getting out and exploring. Featuring an upright yet sporty geometry and comfortable yet capable features ST5+ is suited for new riders and experienced cyclists alike.

    What’s the weight limit for the bike?

    ST5+ has a weight limit of 330lbs (150kg), which includes the rider and any gear or cargo.

    Is this bike compatible with fenders and a rear rack?

    ST5+ comes standard with full-coverage alloy fenders and an MIK-HD rear rack.

    What is the maximum speed?

    ST5+ ships as a Class 2 e-bike, meaning it has both throttle and pedal assist to 20mph. The e-bike can be updated to Class 3 options via the X-LAB Bikes mobile app. It is the rider’s responsibility to comply with all local laws and regulations related to e-bikes.

    Is the battery safe?

    Yes, the battery on ST5+ is designed to be safe and reliable. In addition to using Tier-1 battery cells from LG, the battery and complete e-bike system are tested and certified to UL 2271 and UL 2849.

    Where can my bike be serviced and repaired?

    Any local bike shop will be able to provide general service for your ST5+. For any maintenance of the e-system or warranty issues we recommend going to an X-LAB dealer to receive the best expert guidance and support.

    Is the wheelset tubeless ready?

    The rims and tires on ST5+ are not tubeless compatible.

    Technical

    What is the maximum tire clearance?

    ST5+ has clearance for up to 2.4” tires.

    Are other cockpit size options available?

    ST5+ uses a custom-designed integrated cockpit. There are three different cockpits for ST5+, SP5+, and SL5+. These are all cross compatible with all X-LAB e-bikes and can be purchased separately if a different ride position is desired.

    Who makes the motor and battery?

    The motor and battery on ST5+ are developed and manufactured in-house by X-LAB. The battery cells are sourced from LG.

    Can I remove the throttle controller?

    Yes. The throttle controller can be removed if you prefer a cleaner cockpit setup or want to ride without throttle functionality. Please contact your local X-LAB dealer for assistance with removal and configuration.

    Is the battery removable?

    To minimize weight and complexity of the overall e-bike, the battery on ST5+ is designed to be removed only by an X-LAB mechanic.

  • Manual Downloads

  • Unboxing & Assembling

    ST5+ Unboxing and Assembly
    ST5+ Unboxing and Assembly
    play

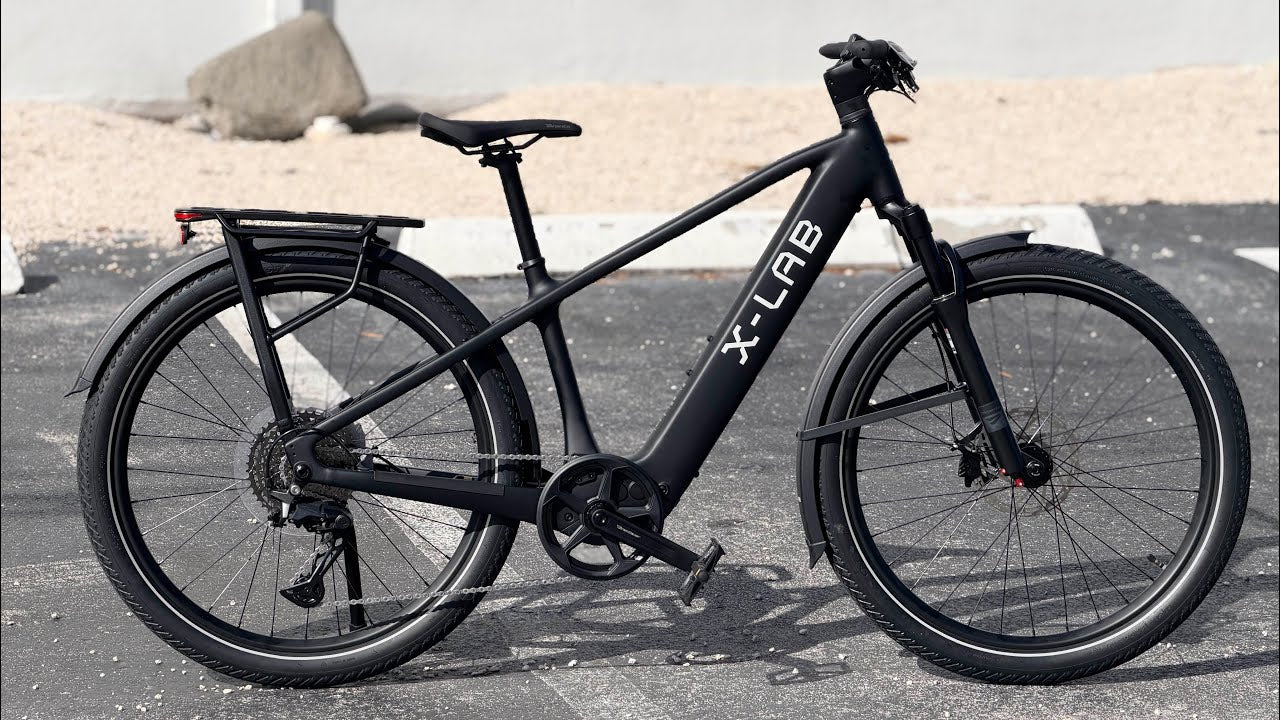

Media Reviews
