SP3

  • ALL-ROAD
  • ALLOY
  • CITY
  • CUES
  • FITNESS

Your first great city/fitness ride.

$799 Free Ground Shipping

  • Accessible all-road fitness bike that overdelivers
  • X6 alloy frame + carbon fork
  • 45mm tire clearance
  • Branta hydraulic disc brakes
  • Quad Lock mount

or as low as $150/mo with

HSA/FSA eligible for qualified customers

Payment methods:

Select size See bicycle geometry

  • background email S
  • background email M
  • background email L
  • background email XL

Size Guide

Not sure what size you should ride? Visit one of our dealers in your area. Find A Dealer

Delivery within 14 days

layer-mask

Size Chart

SP3

Frame Size Rider Height
S 150 cm – 163 cm 4' 11" - 5' 4"
M 163 cm – 173 cm 5' 4" - 5' 8"
L 173 cm – 183 cm 5' 8" - 6'
XL 183 cm – 195 cm 6' - 6' 5"

SP3 Free Ground Shipping

Frostbite Size: - Quantity: 1

$799
mask-layer

Notify Me

You have great taste – this bike sold out fast! If you want first dibs, drop your email and we’ll let you know as soon as it’s back in stock.

* When you ask to be notified, you are also subscribing to our newsletter for the latest product releases.

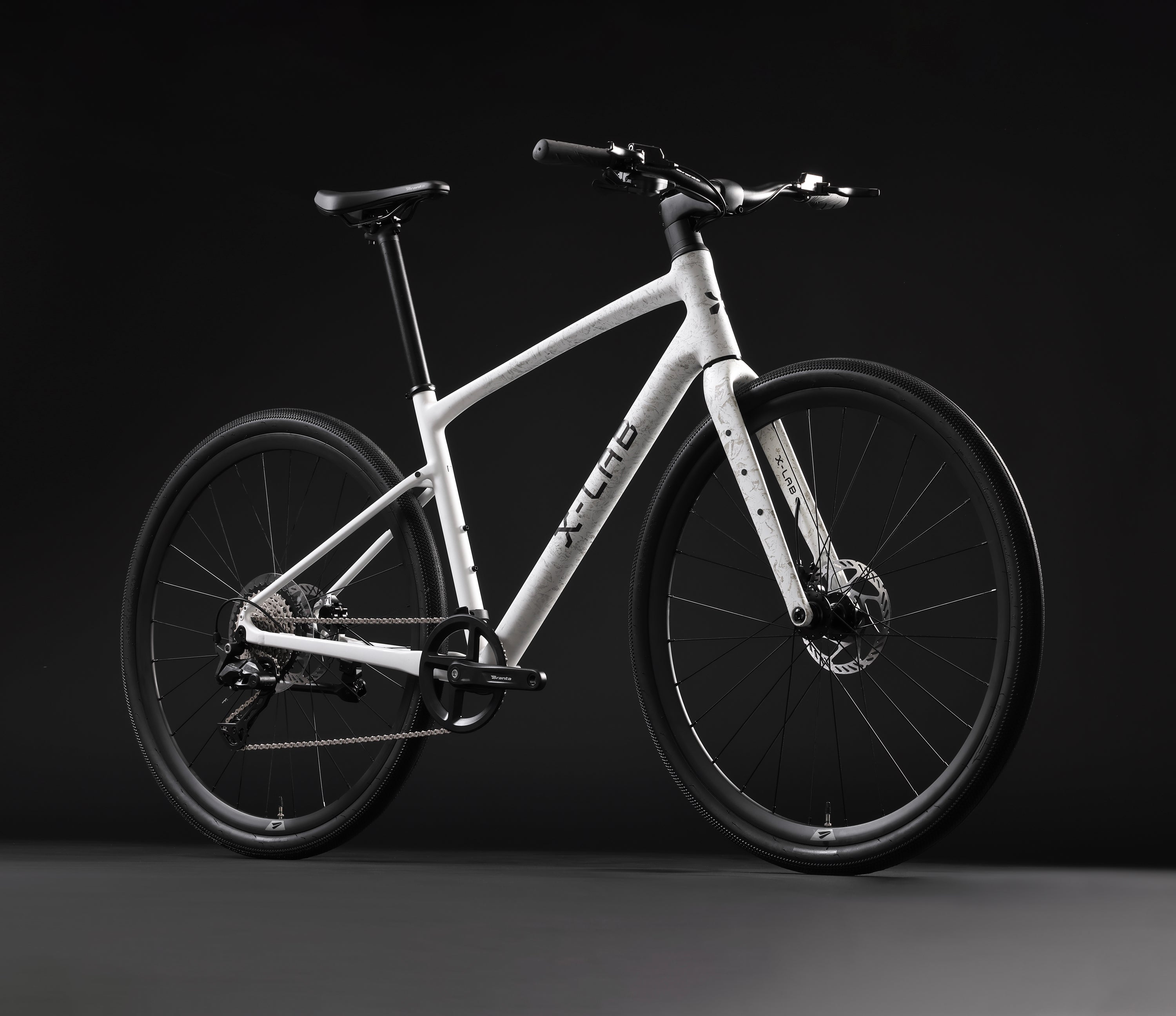

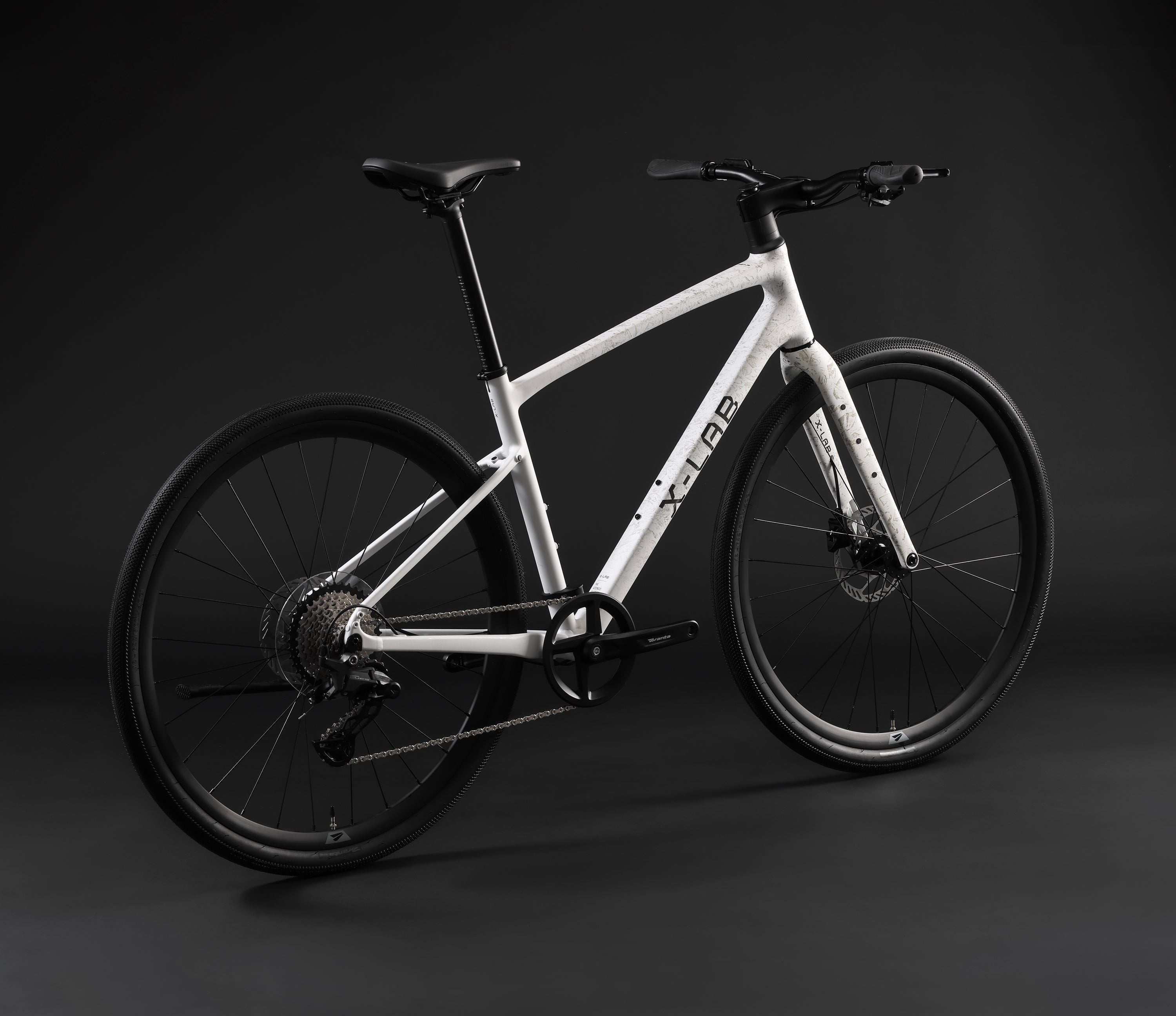

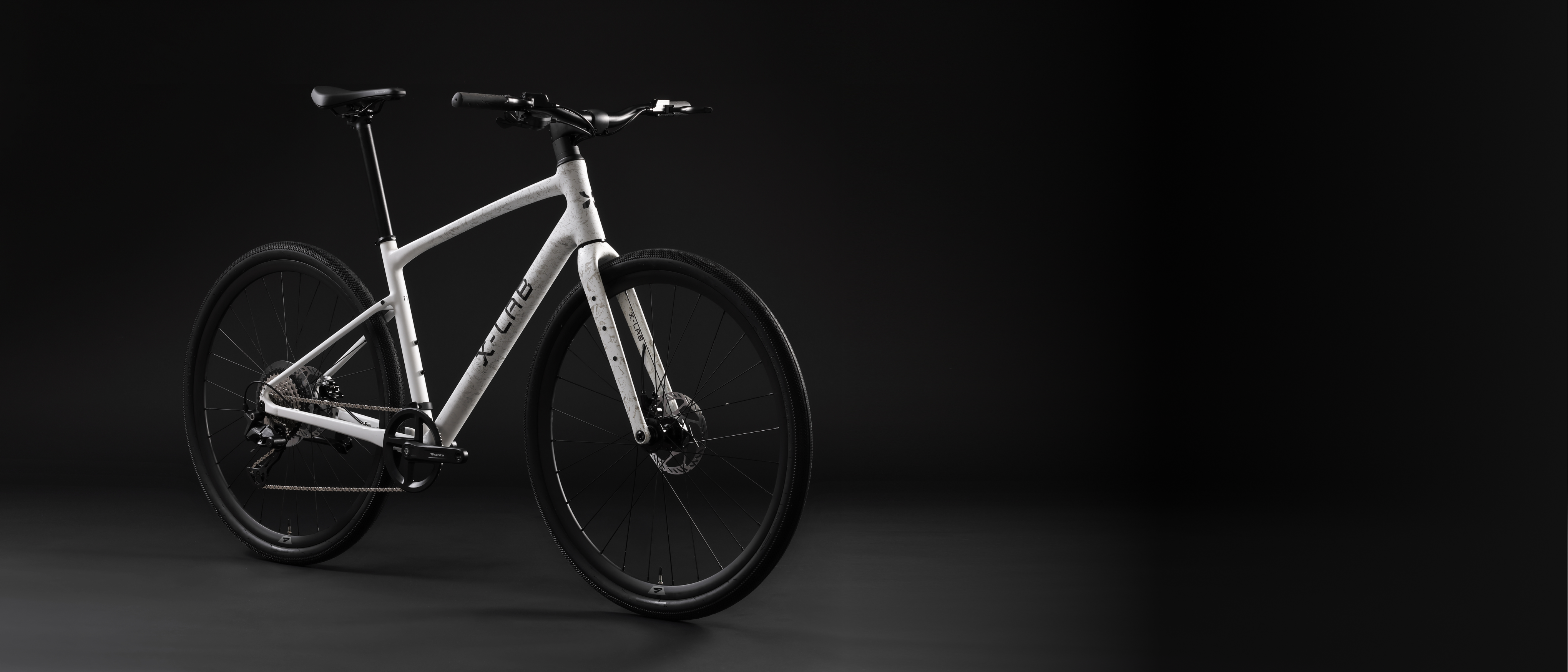

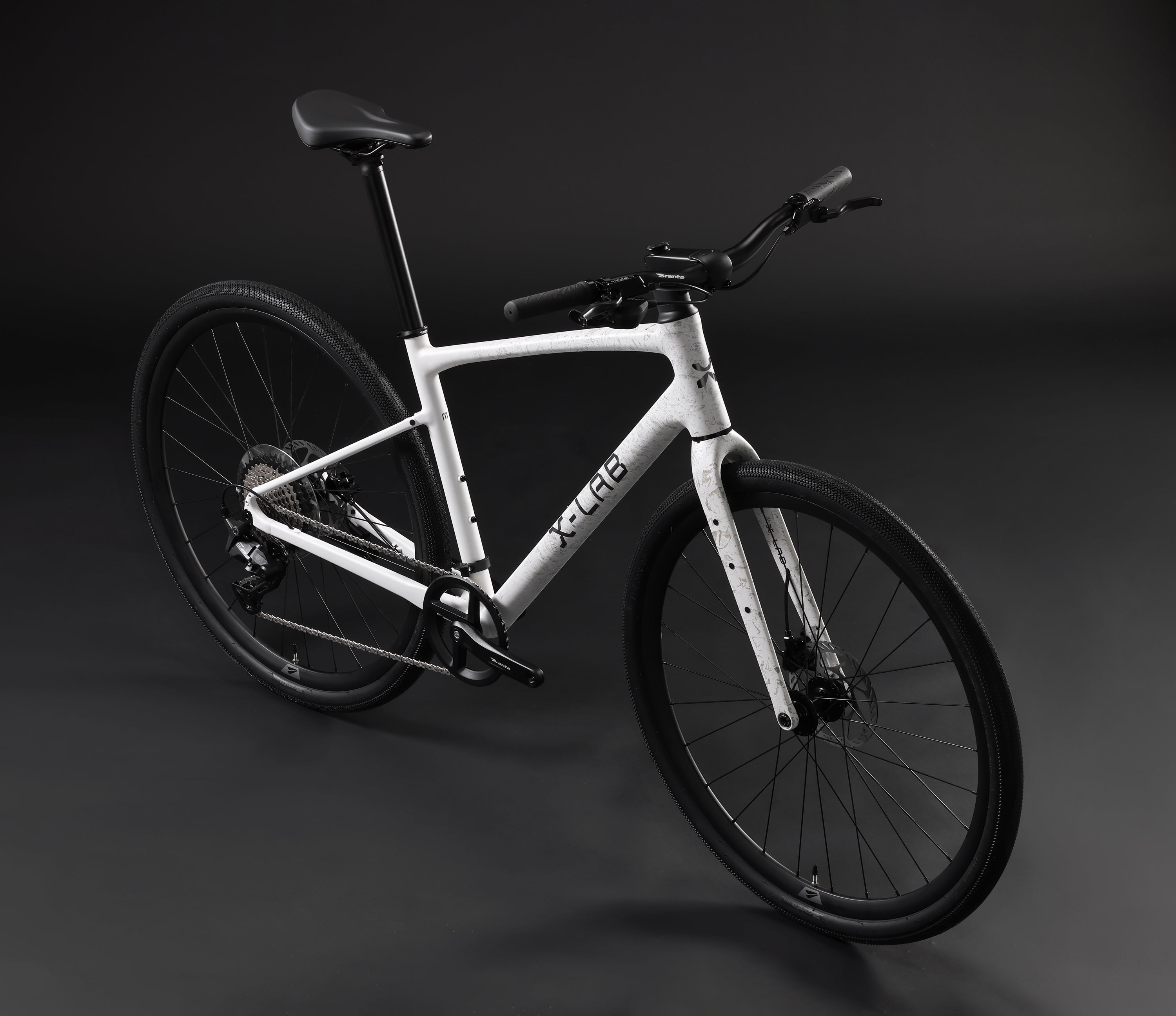

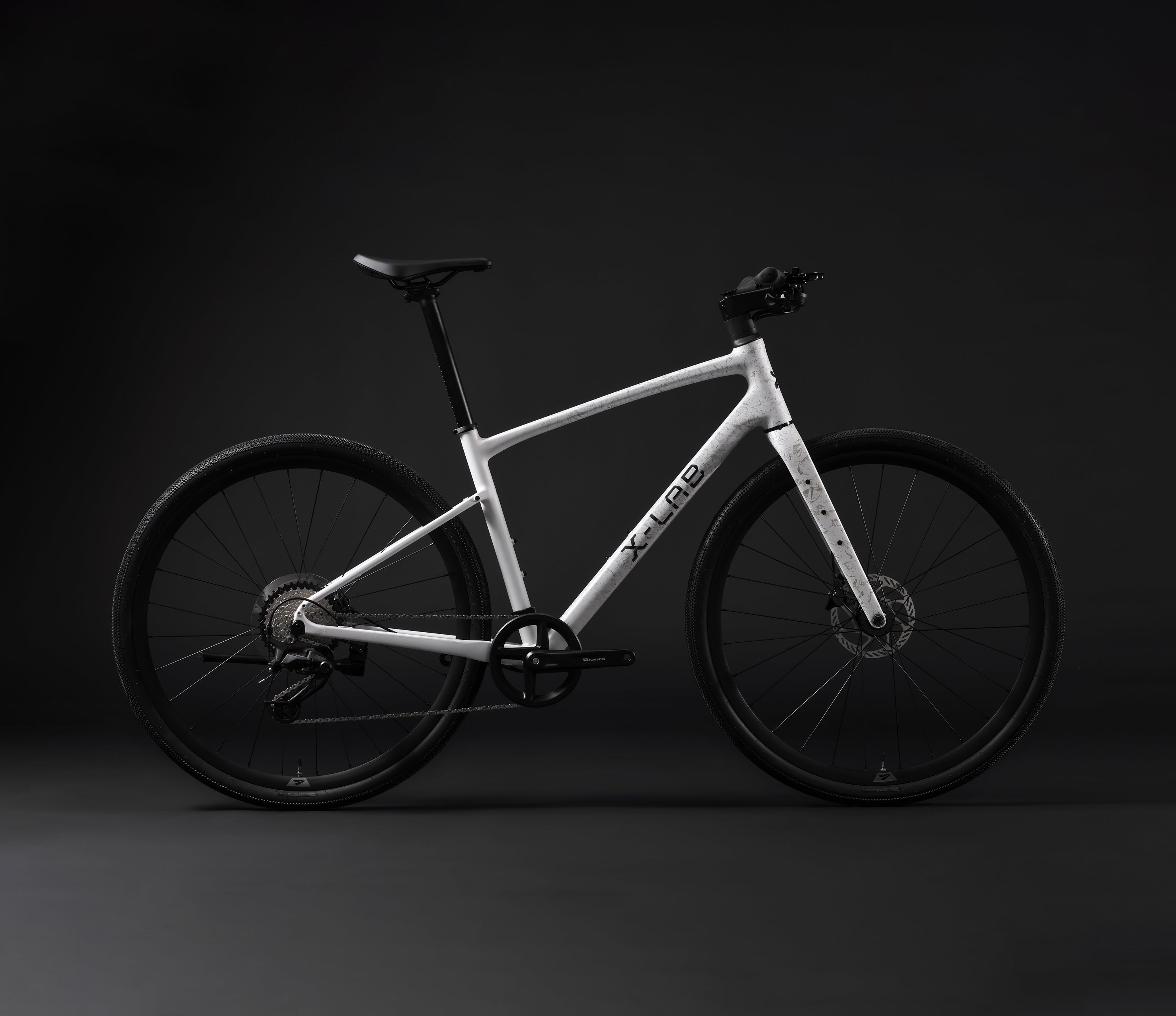

X-LAB SP3

The SP3 is designed for riders who value simplicity, comfort, and everyday reliability.

Built with a durable aluminum frame and a relaxed riding position, it offers stable handling and a smooth ride through city streets and neighborhood paths.

Approachable and dependable, the SP3 delivers the freedom of cycling without complication – perfect for new riders or anyone looking for an easygoing ride.

Sometimes the best rides are the simplest ones.

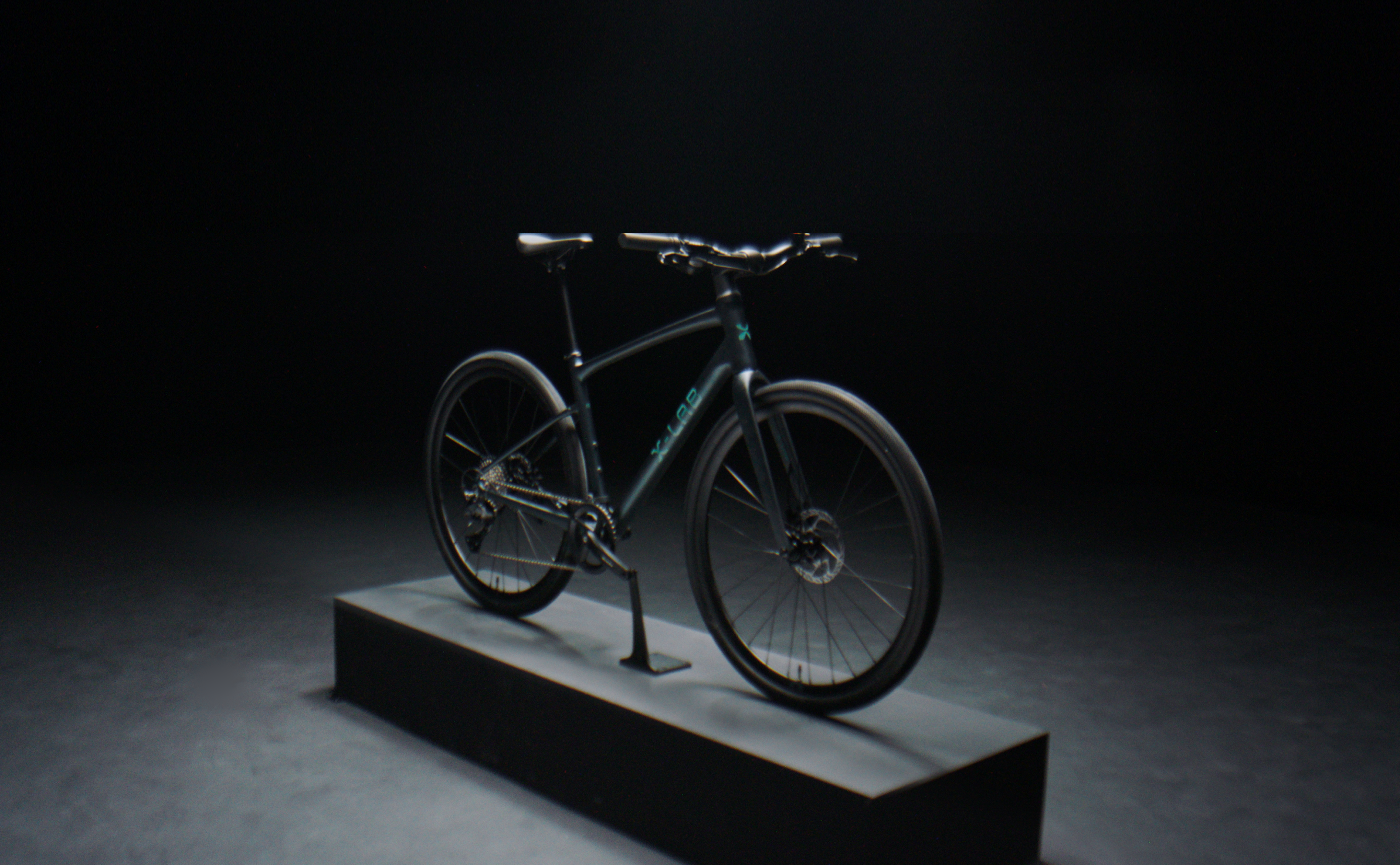

One “Simple” Bike That Does Much More

A clean, confident alloy build that looks as good as it rides, the SP3 is designed to overdeliver for the everyday rider, from novice to advanced, with real road versatility built in.

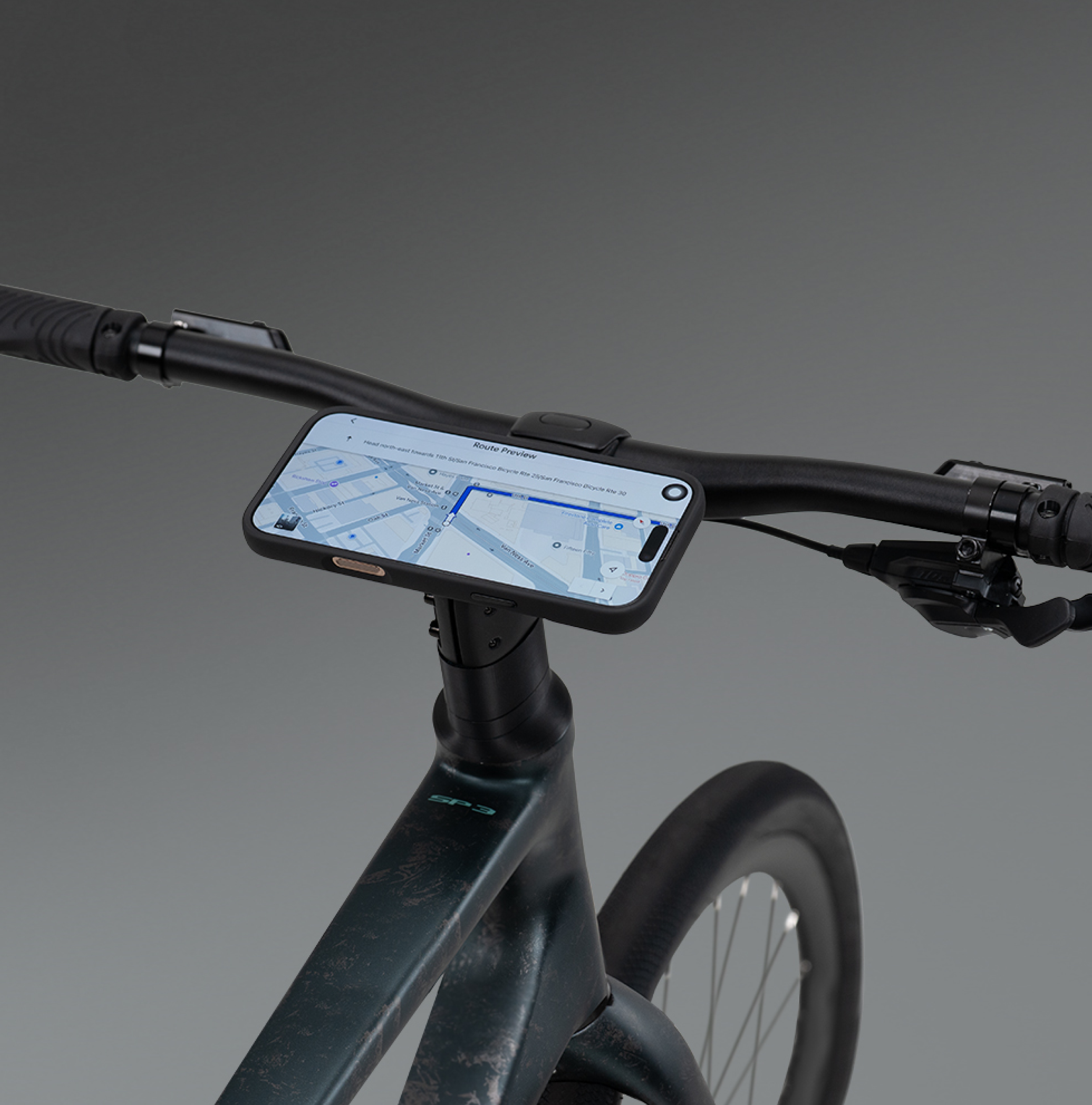

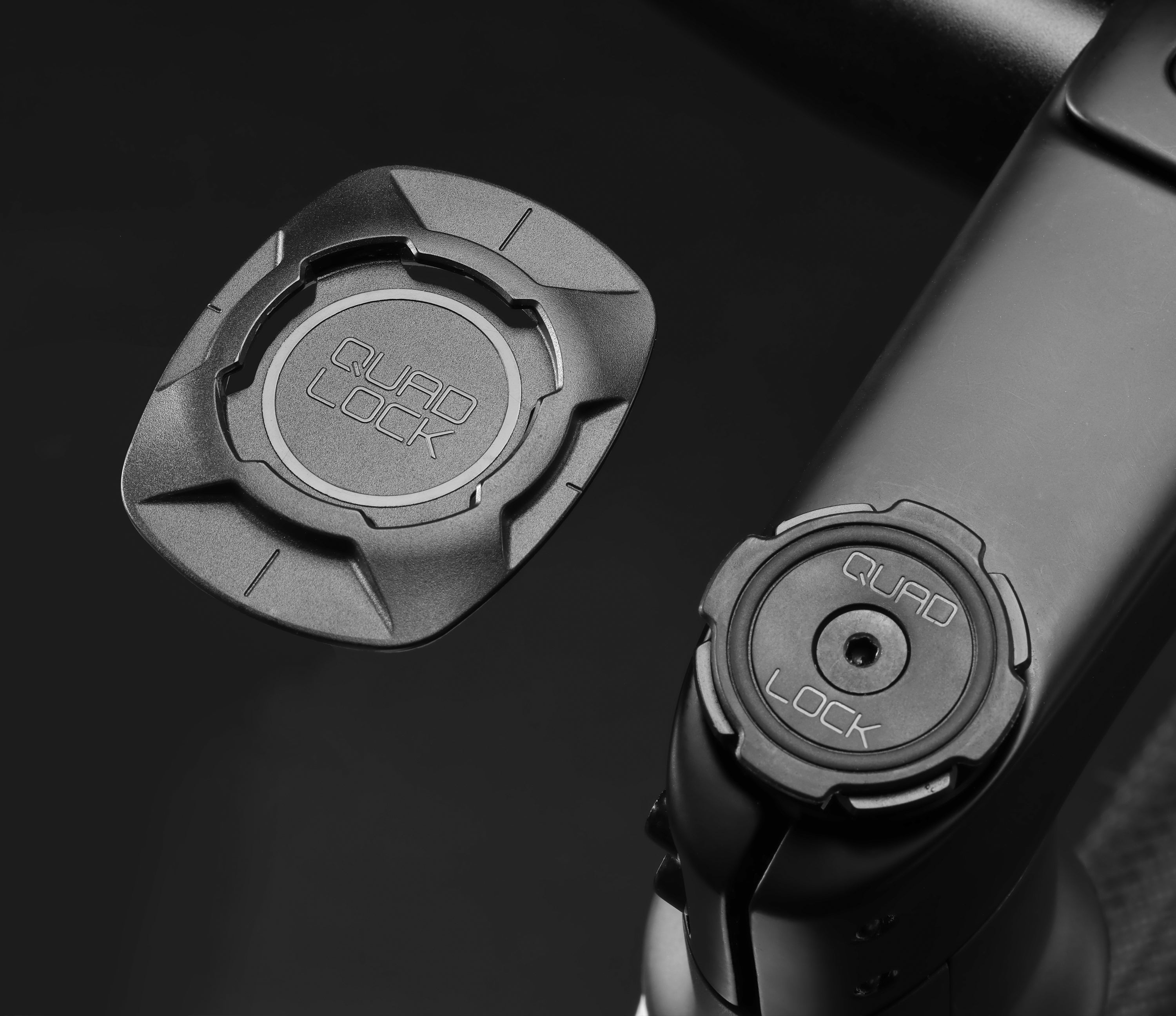

Secure Your Window to the World

Quad Lock integration for your smart phone keeps navigation, music, and ride tracking secure and visible, delivering city-ready convenience without clutter, wobble, or compromise.

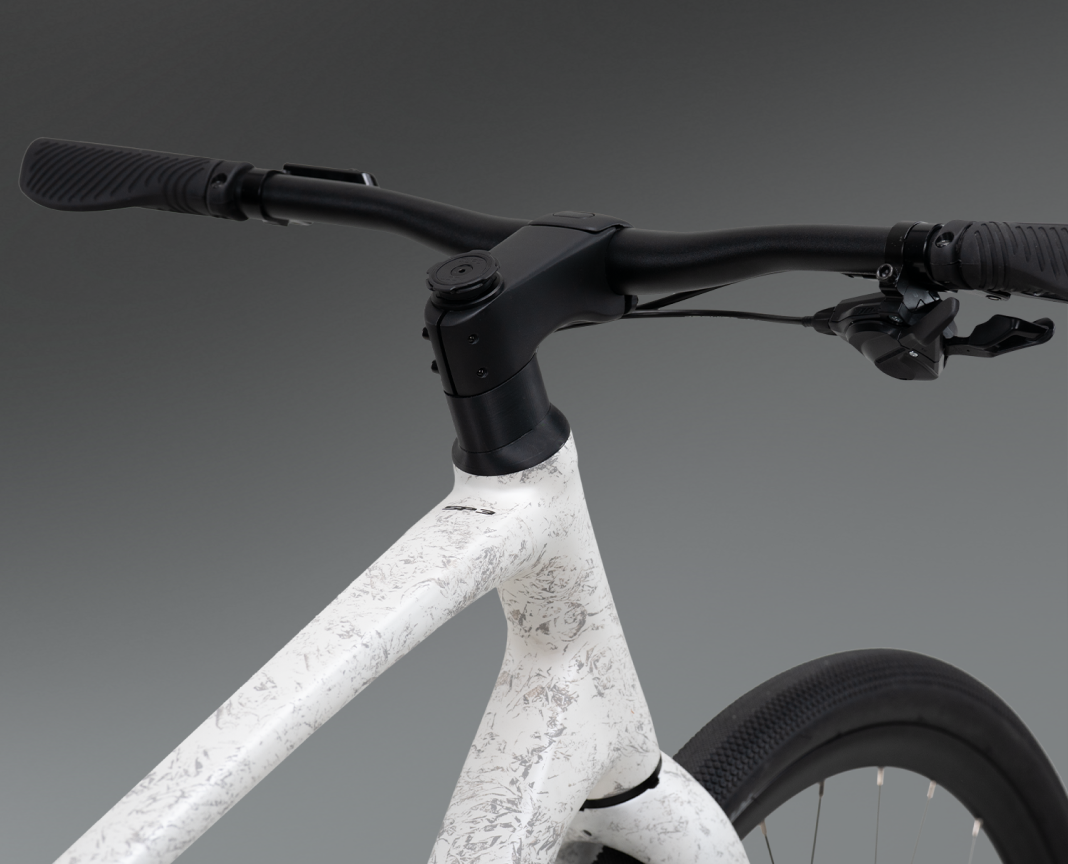

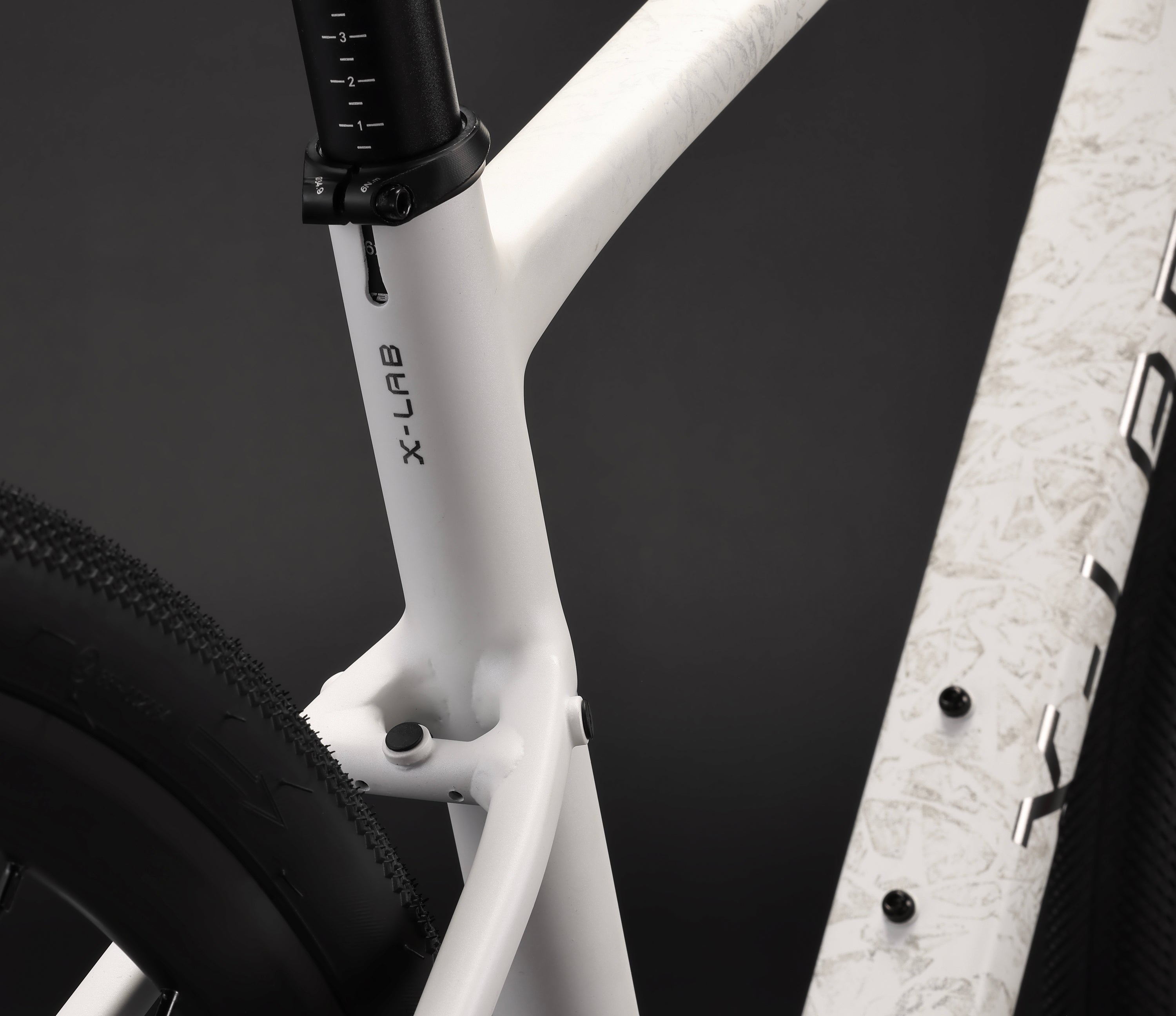

Precision You Can See

Every joint is engineered and finished with obsessive care, delivering clean lines, seamless connections, and artisan craftsmanship you can feel in the ride quality over short and long hauls.

Highlights SP3

  • Key Features

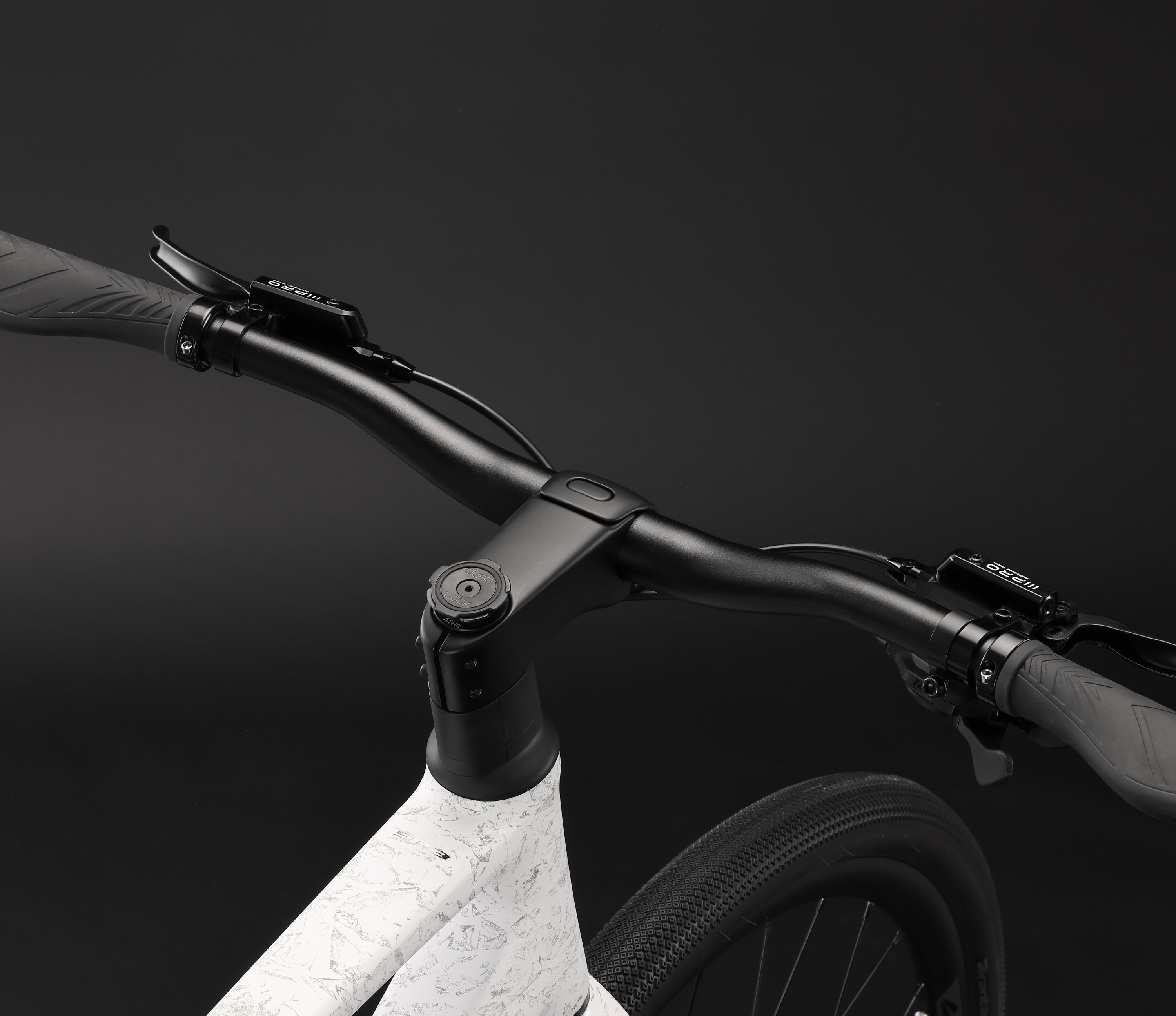

    Integrated cockpit with clean cable routing

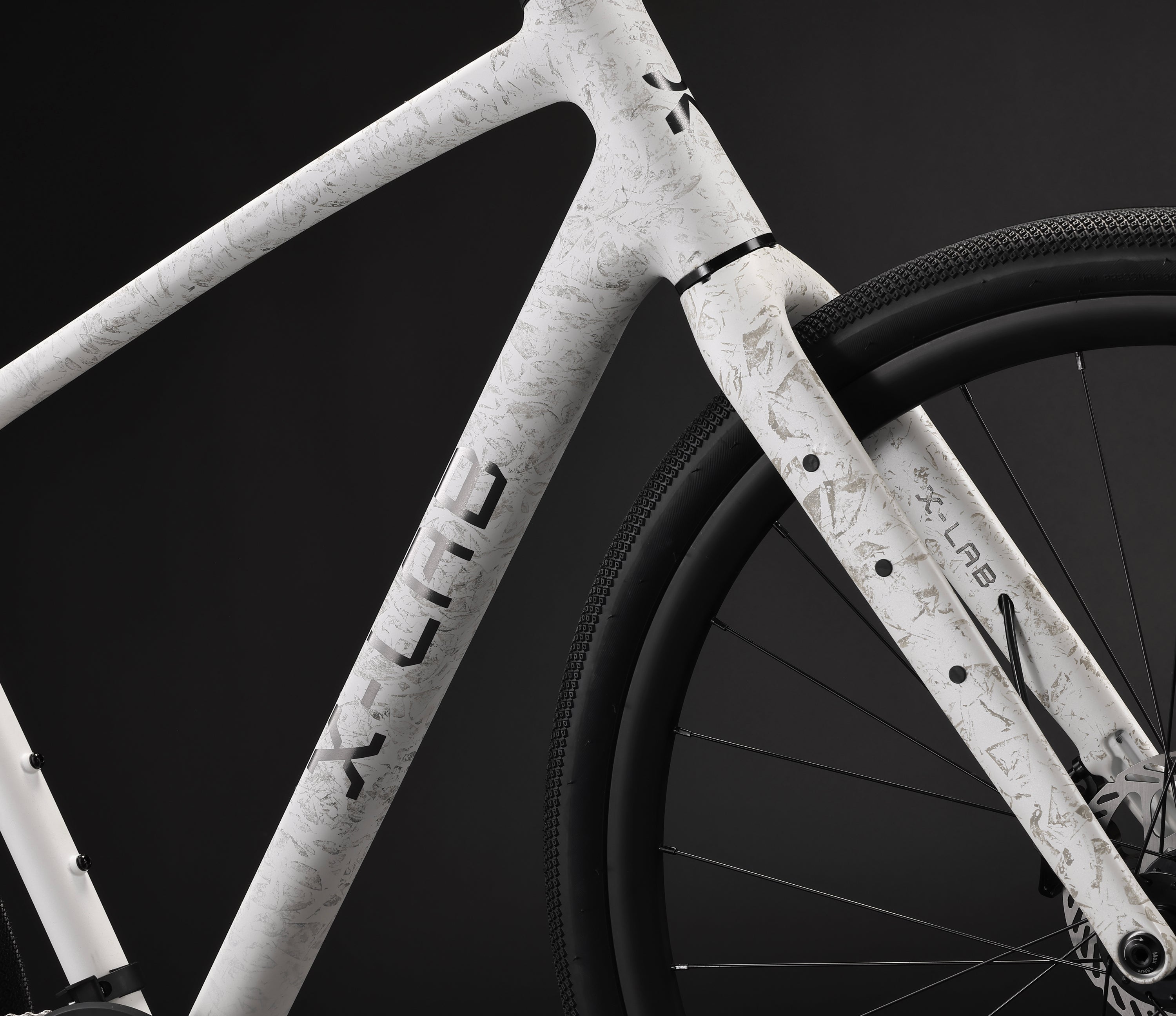

    XDS X6 Alloy frame + Carbon fork

    Quad Lock phone mount

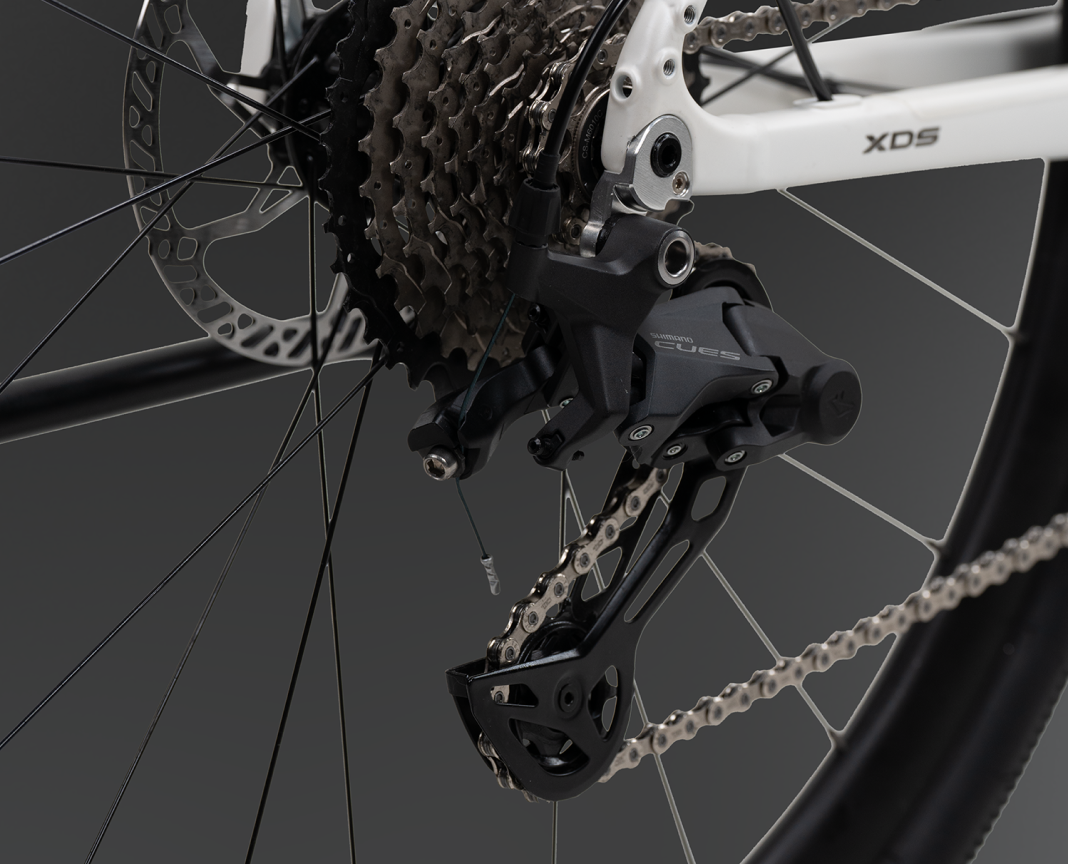

    Shimano CUES drivetrain + hydraulic disc brakes

    prev
    next

    Integrated cockpit with clean cable routing

    XDS X6 Alloy frame + Carbon fork

    Quad Lock phone mount

    Shimano CUES drivetrain + hydraulic disc brakes

  • Technical Specifications

    FRAME

    XDS X6 Alloy Frame

    FORK

    XDS Carbon Fork, 100x12mm Thru-axle

    STEM

    Branta Alloy Stem, 90mm, 0 Degree Rise

    HANDLEBAR

    Branta X6 Alloy Handlebar, 25mm Rise, 9 Degree Back Sweep

    SEATPOST

    XDS Alloy 31.6mm Seatpost, 400mm Length, 12mm Setback

    REAR DERAILLEUR

    Shimano Cues RD-U6020, 10-Speed

    SHIFTER

    Shimano Cues SL-U6000-10R

    BRAKES

    Branta C515 Hydraulic Disc Brake, 3 Finger Lever, 2 Piston Caliper

    CASSETTE

    CS-M6010C 10-speed, 11-40T

    CRANKSET

    Branta Alloy Square Taper Crankset, 170mm, 40T,

    Narrow-wide Teeth

    BOTTOM BRACKET

    BSA Square Taper

    ROTORS

    Branta AR14, F:160mm R:160mm

    CHAIN

    TEC GT-Glide

    WHEELSET

    Branta A27 Regular, Alloy Rim

    TIRES

    Branta R240, 700x40C, 30TPI

    Max Tire Clearance: 45C w/ Full-Wrapped Fender

    SADDLE

    Branta SRX+

    PHONE HOLDER

    Quad Lock Mount

    WEIGHT

    10.71 kg / 23.61 lbs (Size L)

    SIZE OPTIONS

    S / M / L / XL

  • product geometry anchor

    Geometry & Dimensions

    Basic geometry
    title S M L XL
    A — Seat Tube Length 405mm 457mm 508mm 559mm
    B — Top Tube Length 546mm 574mm 602mm 622mm
    C — Head Tube Length 140mm 165mm 190mm 215mm
    D — Seat Tube Angle 75° 74° 74° 73°
    E — Head Tube Angle 70° 71° 72° 73°
    F — Chainstay 445mm 445mm 445mm 445mm
    G — Wheelbase 1054mm 1072mm 1089mm 1092mm
    H — Bottom Bracket Drop 72mm 72mm 72mm 72mm
    I — Stack 563mm 589mm 615mm 643mm
    J — Reach 390mm 405mm 420mm 420mm
    K — Front Center 619mm 637mm 654mm 657mm
    M — Fork Length 398mm 398mm 398mm 398mm
    O — Stand Over 727mm 768mm 809mm 850mm
    • A — Seat Tube Length 405mm
      B — Top Tube Length 546mm
      C — Head Tube Length 140mm
      D — Seat Tube Angle 75°
      E — Head Tube Angle 70°
      F — Chainstay 445mm
      G — Wheelbase 1054mm
      H — Bottom Bracket Drop 72mm
      I — Stack 563mm
      J — Reach 390mm
      K — Front Center 619mm
      M — Fork Length 398mm
      O — Stand Over 727mm
    • A — Seat Tube Length 457mm
      B — Top Tube Length 574mm
      C — Head Tube Length 165mm
      D — Seat Tube Angle 74°
      E — Head Tube Angle 71°
      F — Chainstay 445mm
      G — Wheelbase 1072mm
      H — Bottom Bracket Drop 72mm
      I — Stack 589mm
      J — Reach 405mm
      K — Front Center 637mm
      M — Fork Length 398mm
      O — Stand Over 768mm
    • A — Seat Tube Length 508mm
      B — Top Tube Length 602mm
      C — Head Tube Length 190mm
      D — Seat Tube Angle 74°
      E — Head Tube Angle 72°
      F — Chainstay 445mm
      G — Wheelbase 1089mm
      H — Bottom Bracket Drop 72mm
      I — Stack 615mm
      J — Reach 420mm
      K — Front Center 654mm
      M — Fork Length 398mm
      O — Stand Over 809mm
    • A — Seat Tube Length 559mm
      B — Top Tube Length 622mm
      C — Head Tube Length 215mm
      D — Seat Tube Angle 73°
      E — Head Tube Angle 73°
      F — Chainstay 445mm
      G — Wheelbase 1092mm
      H — Bottom Bracket Drop 72mm
      I — Stack 643mm
      J — Reach 420mm
      K — Front Center 657mm
      M — Fork Length 398mm
      O — Stand Over 850mm
    Component geometry
    title S M L XL
    Fork Rake/Offset 46mm 46mm 46mm 46mm
    Trail 79mm 75mm 71mm 64mm
    Handlebar 640mm 640mm 660mm 660mm
    Stem 90mm 90mm 90mm 90mm
    • Fork Rake/Offset 46mm
      Trail 79mm
      Handlebar 640mm
      Stem 90mm
    • Fork Rake/Offset 46mm
      Trail 75mm
      Handlebar 640mm
      Stem 90mm
    • Fork Rake/Offset 46mm
      Trail 71mm
      Handlebar 660mm
      Stem 90mm
    • Fork Rake/Offset 46mm
      Trail 64mm
      Handlebar 660mm
      Stem 90mm

  • FAQ

    General

    What rider type is the SP3 designed for?

    SP3 is designed for the everyday commuter or recreational rider. SP3 is versatile, lightweight, and comfortable, making it ideal for all types of riding from paved paths to gravel roads.

    Is the bike easy to assemble out of the box?

    We recommend SP3 to be assembled by an experienced bicycle mechanic or technician, since it involves more steps out of the box compared to our road bikes. If you have the necessary mechanic skills, you can refer to the written assembly guide or our assembly video to help guide you through the process. If you have any questions or doubts about assembling SP3 yourself, we recommend having it professionally assembled at your local bike shop.

    What’s the weight limit for the bike?

    SP3 has a weight limit of 242lbs (110kg), which includes the rider and any gear or cargo.

    Is this bike compatible with fenders and a rear rack?

    SP3 is compatible with full length front and rear fenders. It’s also compatible with universal rear racks that mount to the rear dropouts and seat stays.

    Where can my bike be serviced and repaired?

    Any local bike shop will be able to provide general service for your SP3. For any component customization or warranty issues we recommend going to an X-LAB dealer to receive the best expert guidance and support.

    Technical

    What is the maximum tire clearance?

    SP3 has clearance for up to 45c tires.

    Is the frame compatible with SRAM groupsets?

    Yes, the SP3 frame is compatible with most wired, wireless, or mechanical flat-bar groupsets from all major drivetrain brands.

    Are other cockpit size options available?

    SP3 uses a standard threadless stem and 31.8mm handlebar, making it compatible with a wide range of aftermarket stem and handlebar options.

    Are other crank length or chainring options available?

    SP3 uses a standard square taper bottom bracket, making it compatible with a wide range of aftermarket crank options.

    Is the wheelset tubeless ready?

    The rims and tires on SP3 are not tubeless compatible.

  • Manual Downloads

  • Unboxing & Assembling

    SP3 Unboxing and Assembly
    SP3 Unboxing and Assembly
